9.1.2 Pin allocation of the modem interface
The connection between the modem interface (terminal X5, device type
DLX..-MOD-..) and a telephone line uses a telephone cable of type RJ12
with a connector of type TAE6N.

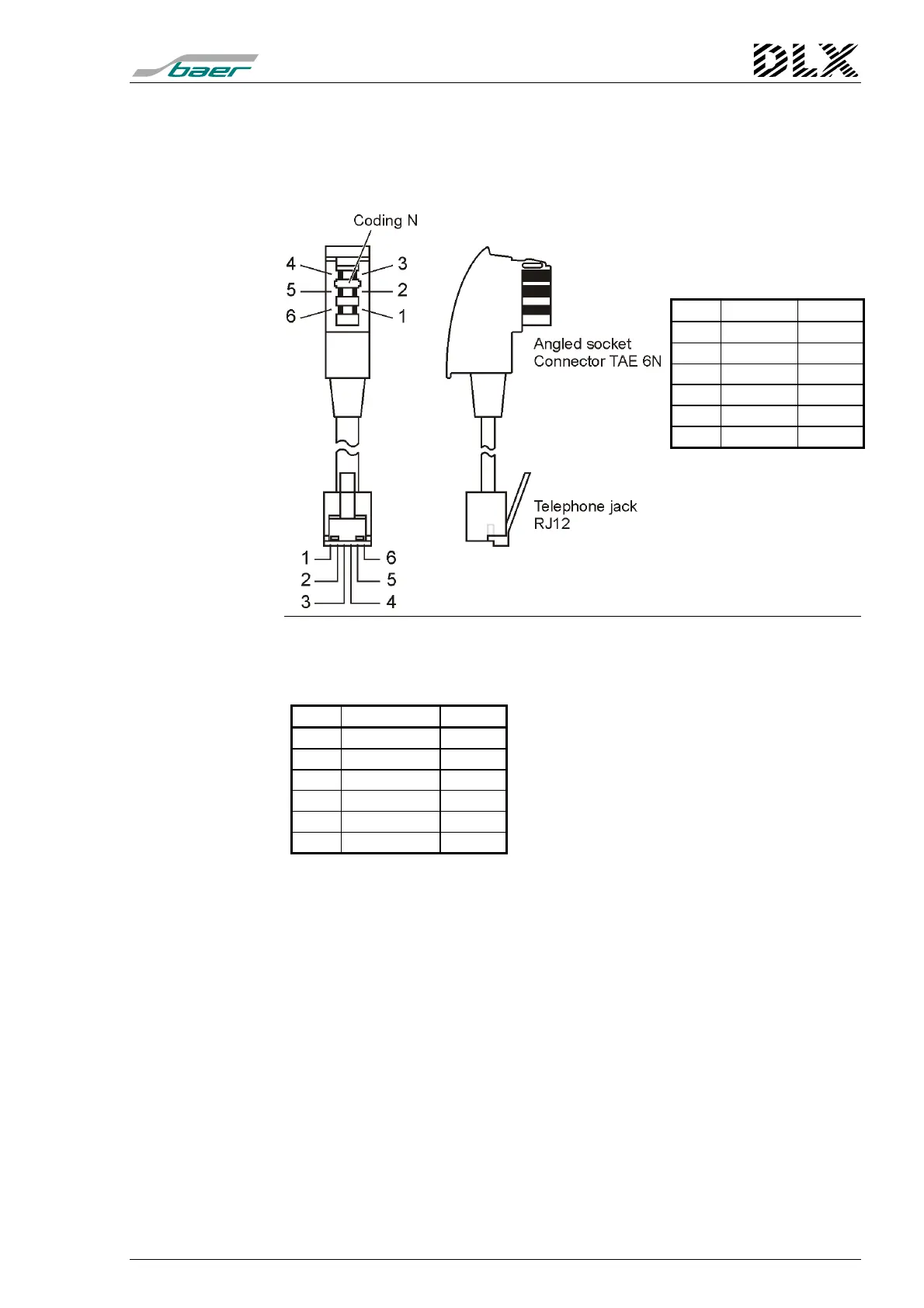

Figure 44, Pin allocation of the PSTN telephone cable
Exception: Devices in housing for panel mounting (year of construction until 2005, de-
vice type DLX...-L822/L832/L834-...):


 In areas with high probability of lightning additional protection needs
to be installed.
TAE Code RJ12
1
La
4
2
Lb
3
3 G —
4 E —
5 b2 2
6 a2 5
TAE Code RJ12
1
La
5
2
Lb
2
3 G 4
4 E 3
5 b2 1
6 a2 6
