6.1.3 Standard display mode

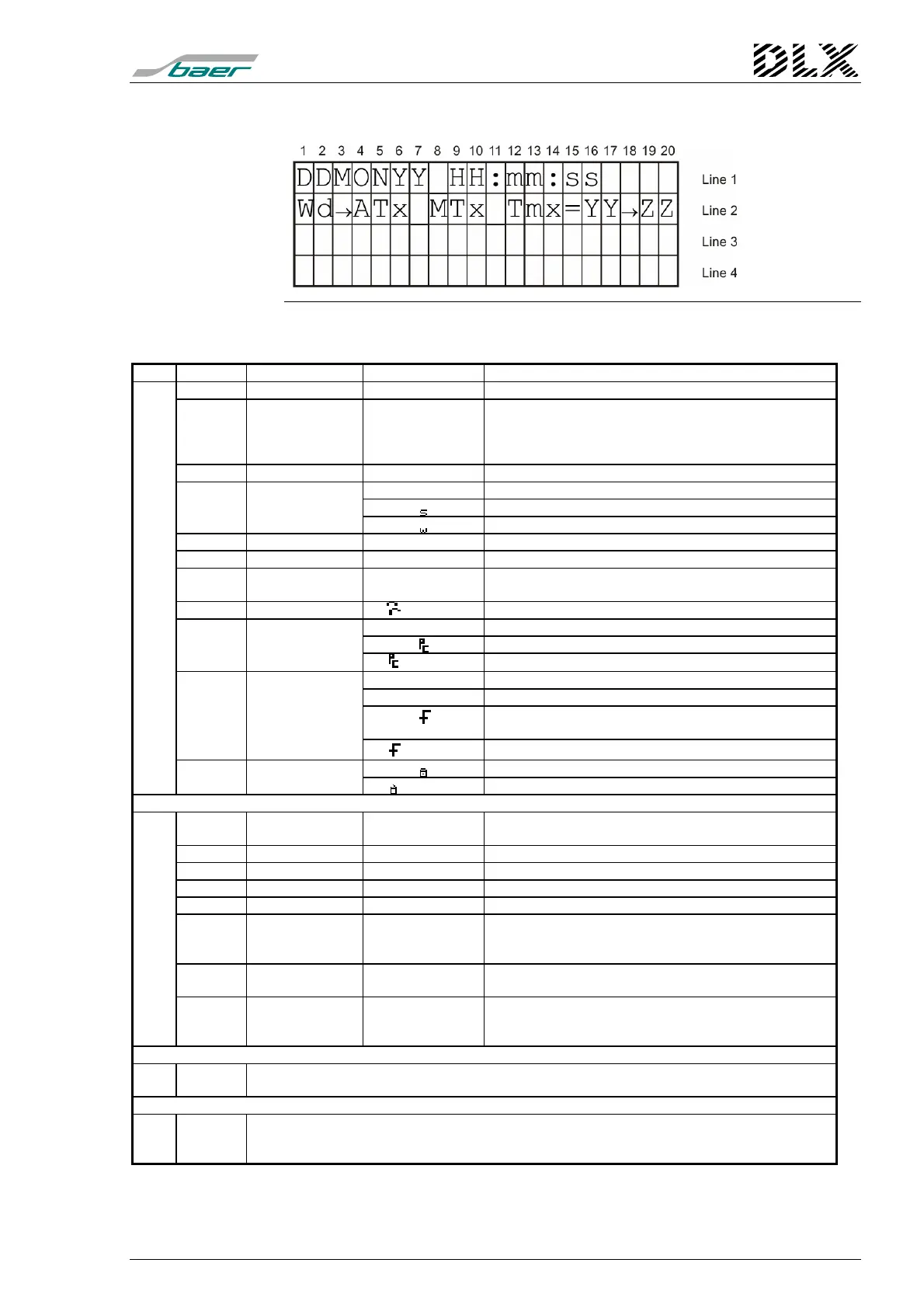

Figure 23, Standard display mode
Interpretation of the standard display mode
Line
Digit
Information
Format
Explanation
1
1 and 2 Day 01 to 31 Date display: Day
3 to 5 Month JAN, FEB, MAR,
APR, MAY, JUN,
JUL, AUG, SEP,
OCT, NOV, DEC
Date display: Month
6 and 7 Year 00 to 99 Date display: Year
8 Summertime (no symbol) No switching between summertime and wintertime
Switching Summertime
Wintertime
9 to 11 Hour 00: to 23: Hour display
12 to 14 Minute 00: to 59: Minute display
15 and
16
Second 00 to 59 Second display
17 Reset block
(blinking)
Reset not permitted
18 PC-Card (no symbol) No PC-Card inserted or activated
PC-Card inserted and activated
(blinking)
PC-Card registered but not activated
19 Synchronization (no symbol) Synchronization not programmed
m Manual Synchronization (via terminal)
Synchronization via DCF77 receiver, DCF77 signal
valid
(blinking)
No synchronization, DCF77 signal disturbed
20 Program prot. Programming not permitted ("Set Disable")
Switch (blinking) Programming permitted ("Set Enable")
2
1 to 3 Weekday Mo to Su,
F1 to F3
Weekday or public holiday (F1 to F3 from the rate
calendar)
4 to 6 Energy rate AT1 to AT4 Name of the active energy rate
8 to 10 Demand rate MT1 to MT4 Name of the active demand rate
12 to 15 Registr. Period Tm1= or Tm2= Registration period identifier
16 to 17 Registr. Period
length
1, 2, 3, 4, 5, 6, 10,
12, 15, 20, 30, 60,
2*, 3*, 6*, 12*, 24*
Length of registration period Tm1 or Tm2 in minutes or in
hours* (if a lowercase „h“ is shown in position 18)
18 Unit of registr.
period
 or h Length of registration period Tm1 or Tm2 in minutes ()
or . in hours* (h).
19 to 20 Time remaining
in registr. Period
TmX
ZZ Time remaining to the end of the registration period in
minutes or in hours (is a lowercase „h“ is shown in posi-
tion 18)
3
1 to 20 Scroll list : text display
(if programmed via programming software DLXPARA)
4
1 to 20 Scroll list : text display
(if programmed via programming software DLXPARA)
During programming line 4 shows the text “Password is active!”
* only for registration period Tm2
