1640-IN-031-C-08
Page 10 of 104
Eurotherm/Barber-Colman
MACO Series Controller Installation
Dimensions are in inches
and (millimeters)

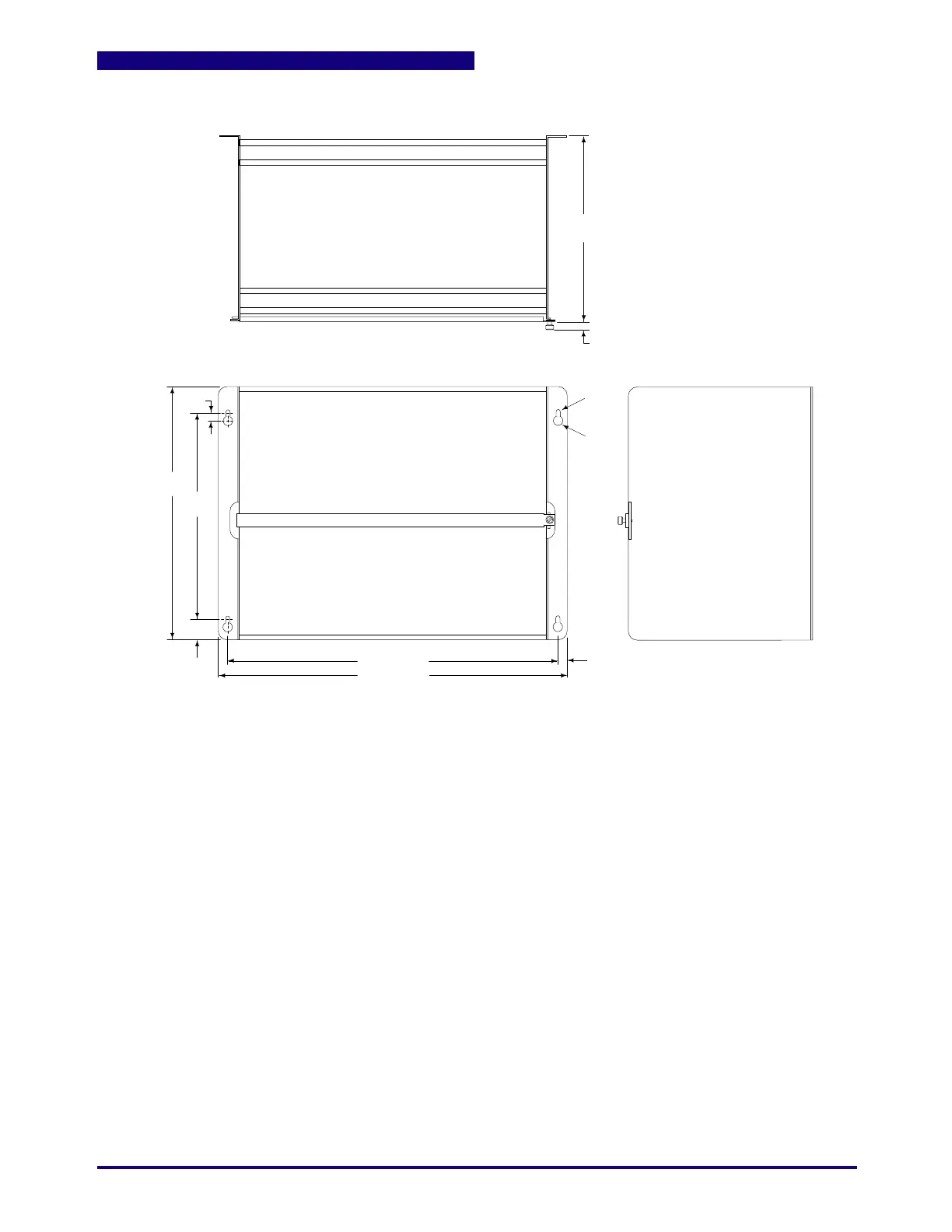

Figure 1.4 7 Slot Open Frame Controller Dimensions
11.300
(287mm)
8.750
(222.3mm)
14.000 (355.6mm)
14.800 (376mm)
Reference
Ø 0.281
(7.14mm)
0.500
(12.7mm)
1.275
(32.38mm)
0.400
(10mm)
Ø 0.531
13.49mm)
8.300
(210.8mm)
0.640
(16.2mm)
