Eurotherm/Barber-Colman
MACO Series Controller Installation

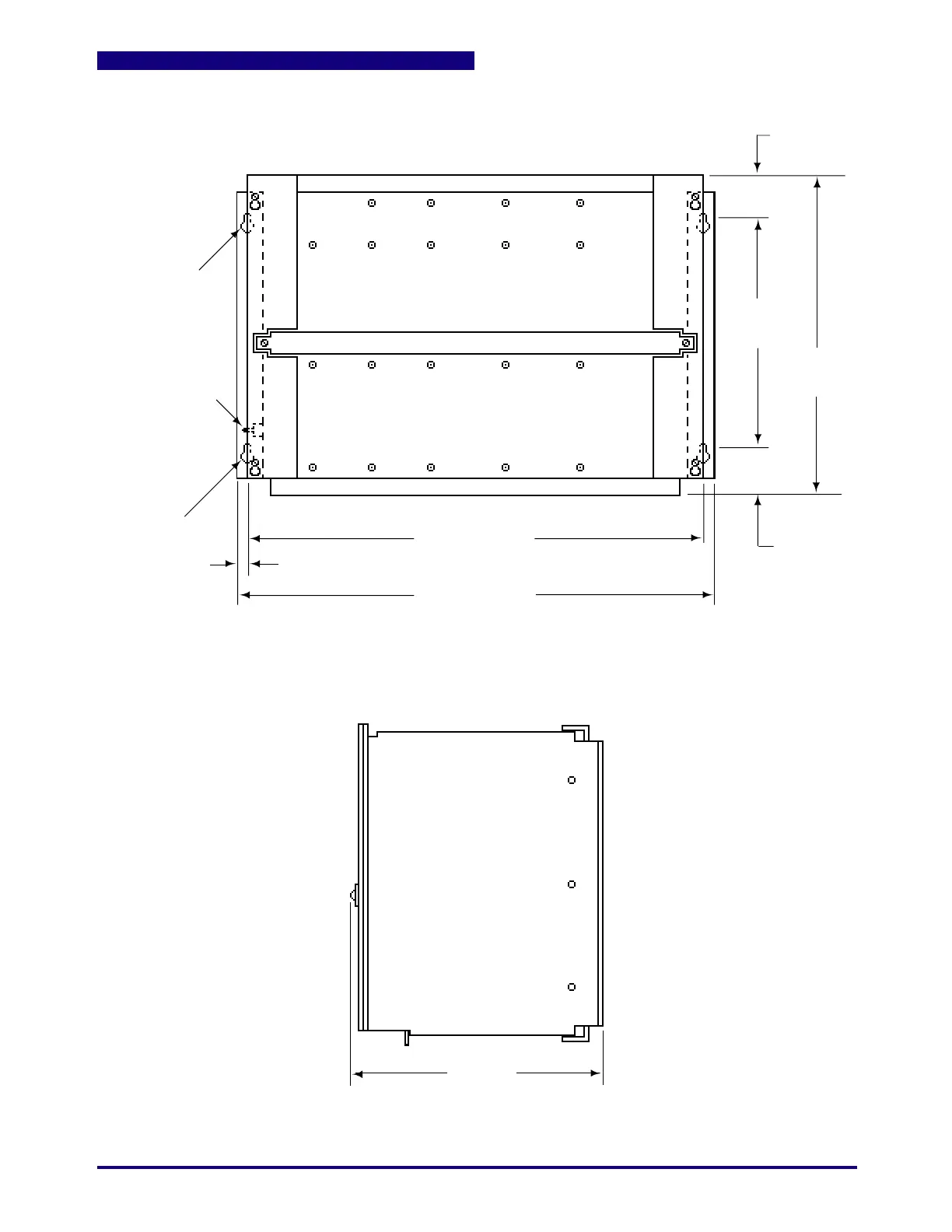

Figure 1.2 12 Slot Open Frame Controller Dimensions
20.050 (509mm)
Reference
19.250 (489mm)
Front View
.531 (13.49mm) (4)
.281 (7.14mm) (4)
6-32 EMC
Bond Stud
1.705
(43mm)
8.750
(222.3mm)
Side View
Allow Approx. 2" (50mm)
Clearance each Side
Allow Approx. 3-4" (75-100mm)
Clearance at Top and Bottom
for Air Flow
12.160
(106.4mm)
1.705
(43mm)
8.400
(213mm)
Dimensions are in inches
and (millimeters)
.400
(10mm)
