Barber-Colman MACO Series - Figure 1.0 12 Slot Enclosed Controller Dimensions

1640-IN-031-C-08
Page 6 of 104
Eurotherm/Barber-Colman
MACO Series Controller Installation

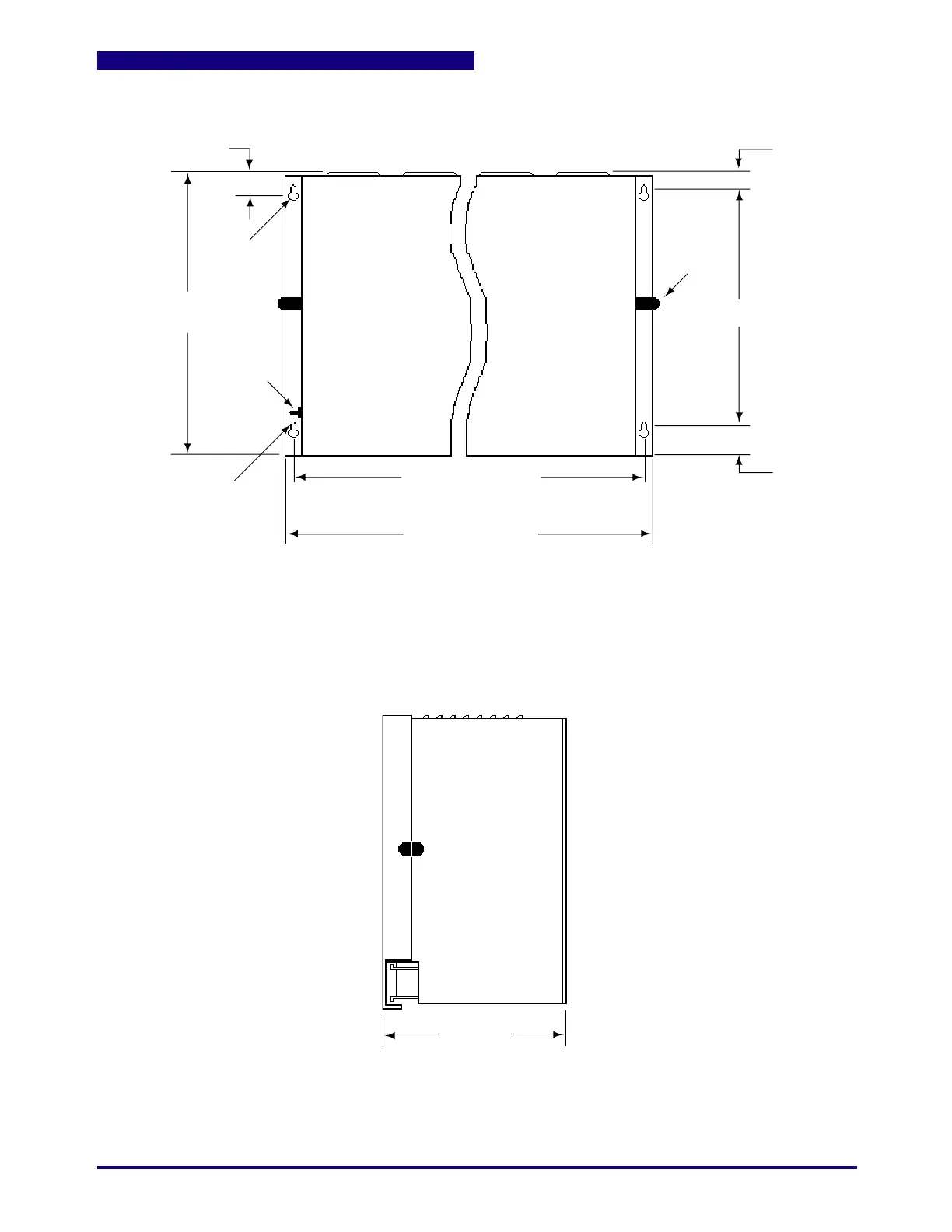

Figure 1.0 12 Slot Enclosed Controller Dimensions
19.0" (483mm) Ref.
18.312" (465.12mm)
Front View
1.37" (35mm) Approx.
13.562" (345mm)
Ref.
(4) .531"
(13.48mm)
(4) .281"
(7.14mm)
6-32 EMC
Bond Stud
1" (25.4mm)
Approx.
2" (50mm)
Approx.
10.500" (266.70mm)
Side View
8" (203mm)
Approx.
(with Cover)
Allow Approx. 2"
(51mm) Clearance
each Side
for Latches
Allow Approx. 3-4" (75-100mm)
Clearance at Top and Bottom
for Air Flow (Fans)
Latch (2)
Dimensions are in inches
and (millimeters)
