Barber-Colman MACO Series User Manual

1640-IN-031-C-08 Page 7 of 104
MACO Series Controller Installation
Eurotherm/Barber-Colman

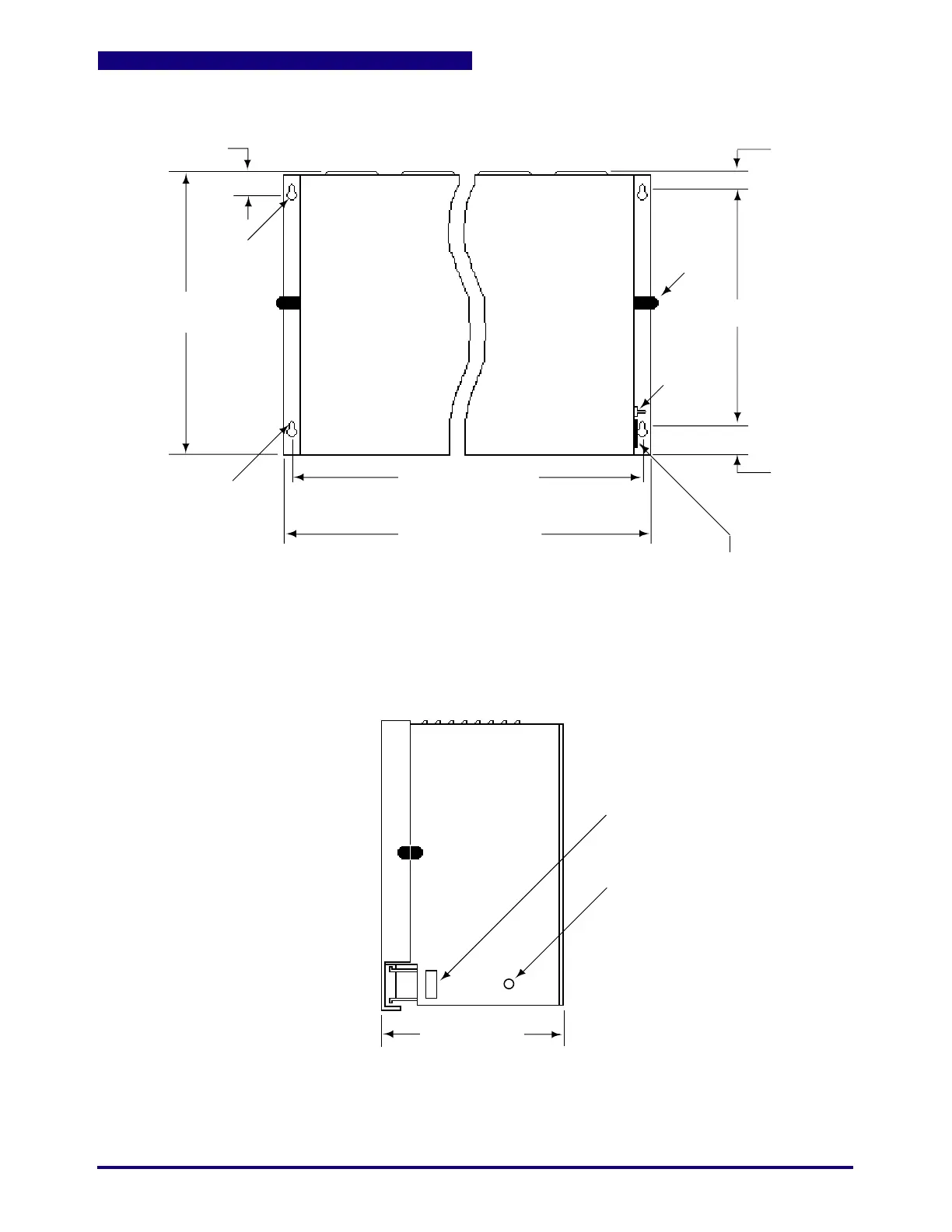

Figure 1.1 16 Slot Enclosed Controller Dimensions
27.5" (697mm) Ref.
26.625" (676.28mm)
Front View
1.37" (35mm) Approx.
13.562" (345mm)
Ref.
(4) .531"
(13.48mm)
(4) .281"
7.14mm)
1" (25.4mm)
Approx.
2" (50mm)
Approx.
6-32 EMC
Bond Stud
10.500" (266.70mm)
Power Connection
Side View
8" (203mm)
Approx.
(with Cover)
Power Connection
6-32 EMC
Bond Stud
Allow Approx. 2"
(51mm) Clearance
each Side
for Latches
Allow Approx. 3-4" (75 - 100mm)
Clearance at Top and Bottom
for Air Flow (Fans)
Latch (2)
Dimensions are in inches
and (millimeters)
