Barber-Colman MACO Series - Figure 1.3 9 Slot Open Frame Controller Dimensions

1640-IN-031-C-08 Page 9 of 104
MACO Series Controller Installation
Eurotherm/Barber-Colman

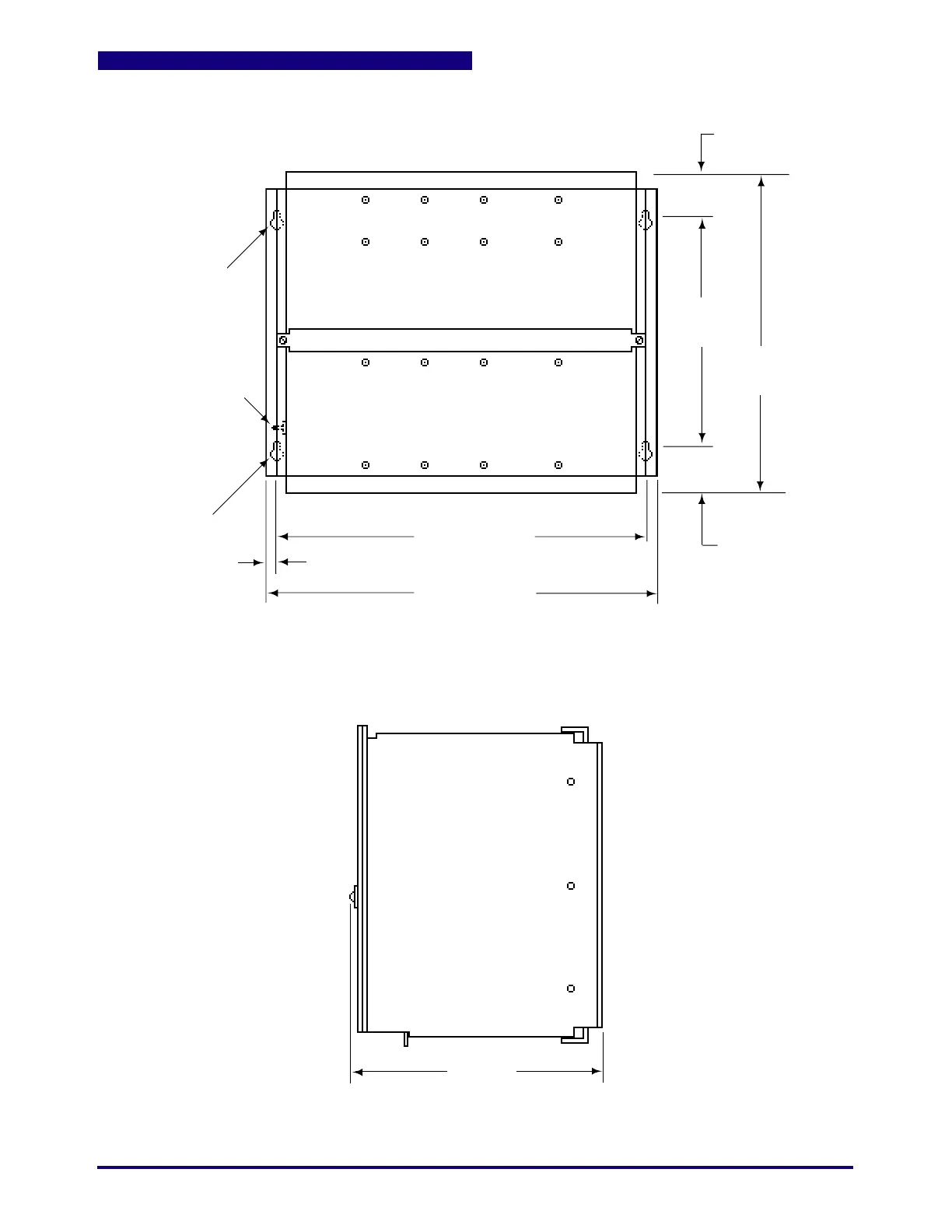

Figure 1.3 9 Slot Open Frame Controller Dimensions
16.415 (417mm)
Reference
15.665 (398mm)
Front View
.531 (13.49mm) (4)
.281 (7.14mm) (4)
6-32 EMC
Bond Stud
1.705
(43mm)
8.750
(222.3mm)
Side View
Allow Approx. 2" (50mm)
Clearance each Side
Allow Approx. 3-4" (75-100mm)
Clearance at Top and Bottom
for Air Flow
12.160
(106.4mm)
1.705
(43mm)
8.400
(213mm)
Dimensions are in inches
and (millimeters)
.400
(10mm)
