Barber-Colman MACO Series User Manual

1640-IN-031-C-08 Page 51 of 104
MACO Series Controller Installation
Eurotherm/Barber-Colman

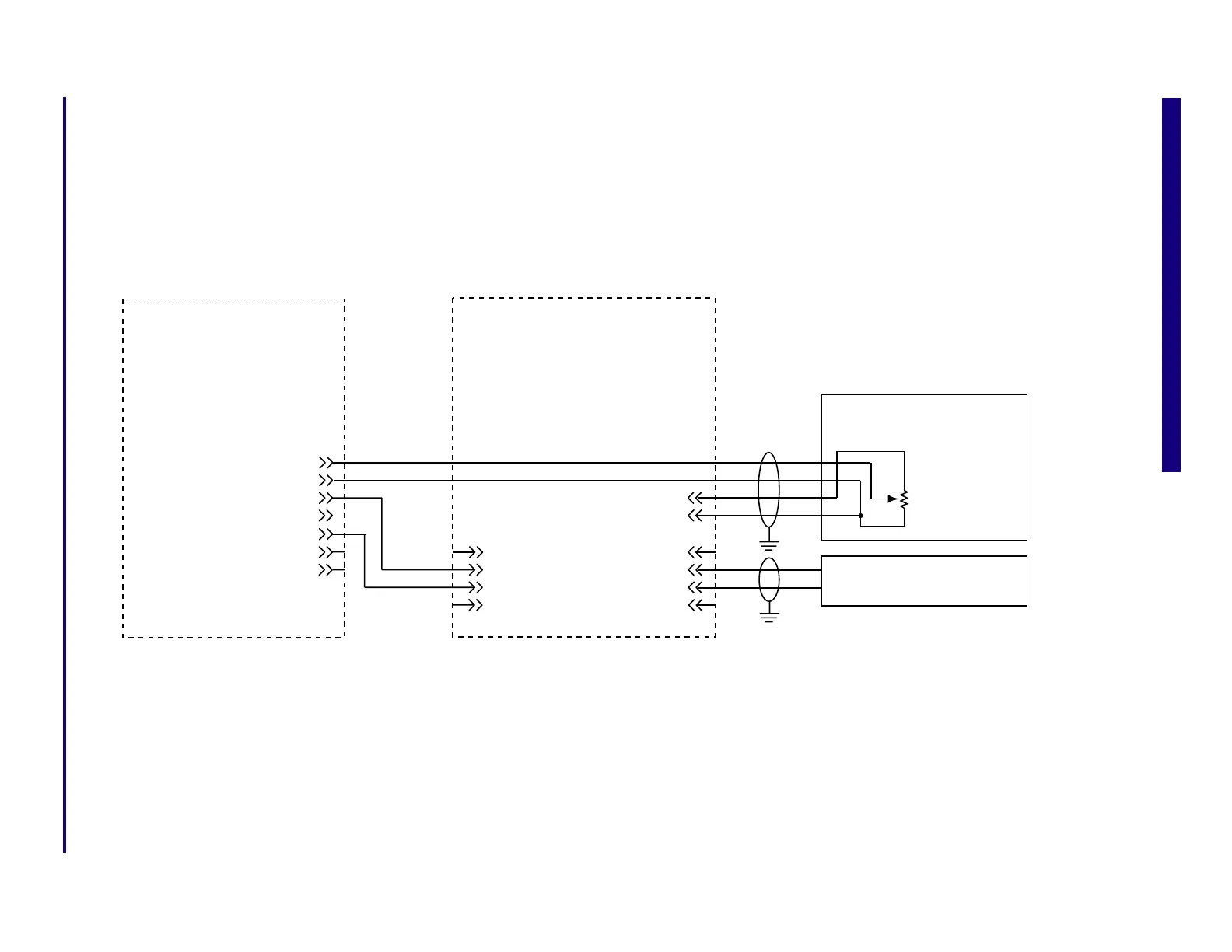

Figure 6.9 Two-Head Position-Based Machine with Moog Servo Amp
PARISON PCB
Input (+) 4
Input (-) 5
Output (+) 7
Output (-) 8
Analog In 1 Plus (+)
Analog In 1 Minus (-)
Analog Out 1 (+)
Excitation 1 (+)
Analog Common 1 (-)
Cal 1 A
Cal 1 B
MOOG 121-105 SERVO AMP
P15
Servo
Control In
Position Detection
Position
Output
500 Ω
to
2k Ω
EX+
Excitation (+) 11
Excitation (-) 13
