Barber-Colman MACO Series - Analog Output Operating Specifications

1640-IN-031-C-08 Page 73 of 104
MACO Series Controller Installation
Eurotherm/Barber-Colman
2.Connect the outputs to the loads. Each output has two separate connections
from the board.
Analog Output Operating Specifications
Outputs per Card:
2, 4 or 12
Card Supply Voltage:
24 Vdc, ±0.5 Vdc (external supply) @ 0.6 Amps minimum current.
Current Outputs:
4 to 20 mAdc, isolated, short circuit protected both leads to ground. 750 Ohm maximum
load. Up to 15 bit resolution. Accuracy of 0.25% at full scale at rated conditions.
Voltage Outputs:
0 to 10 Vdc, isolated, short circuit protected at 3.3 mA both leads to ground. 3.3k Ohm
minimum load. Up to 15 bit resolution. Accuracy of 0.25% at full scale at rated conditions.

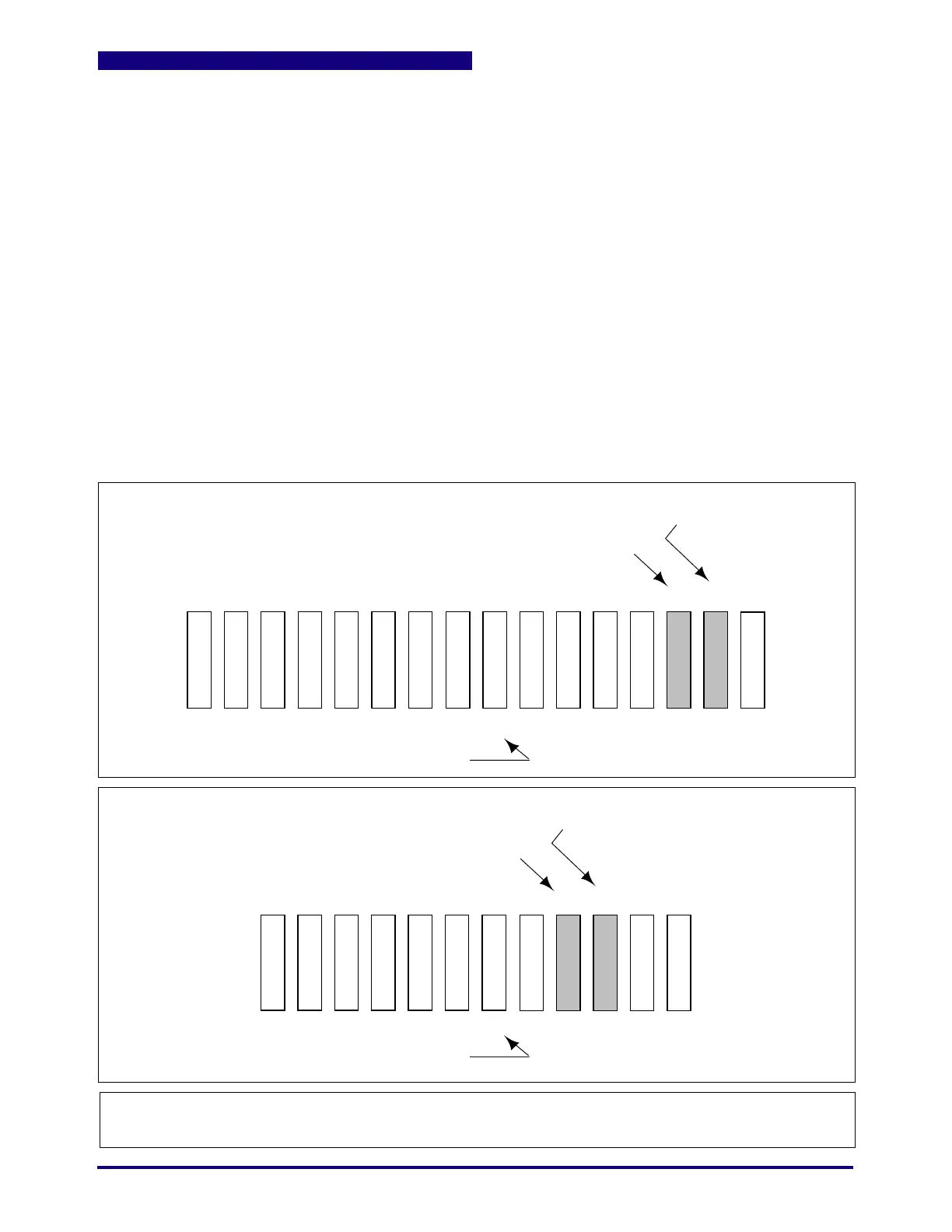

Figure 11.0 Locating the Analog Output Boards
Do NOT count like this
Slot
1
Slot
2
Slot
3
Slot
4
Slot
5
Slot
6
Slot
7
This is Board 1
(enter "5" as "First Analog Out Slot" setpoint)
This is Board 2
(enter "2" as "# Analog Output Brds." setpoint)
Slot
8
Slot
9
Slot
10
Slot
11
Slot
12
Slot
13
Slot
14
Slot
15
Slot
16
Slot
1
Slot
2
Slot
3
Slot
4
Slot
5
Slot
6
Slot
7
Do NOT count like this
Slot
1
Slot
2
Slot
3
Slot
4
Slot
5
This is Board 1
(enter "2" as "First Analog Out Slot" setpoint)
This is Board 2
(enter "2" as "# Analog Output Brds." setpoint)
Slot
8
Slot
9
Slot
10
Slot
11
Slot
12
Slot
1
Slot
2
Slot
3
Slot
4
Slot
5
Slot
6
Slot
7
16 Slot Systems
12 Slot Systems
7 and 9 Slot Systems
Enter "1" as "First Analog Out Slot" setpoint.
Slot
0
