Barber-Colman MACO Series User Manual

1640-IN-031-C-08
Page 16 of 104
Eurotherm/Barber-Colman
MACO Series Controller Installation

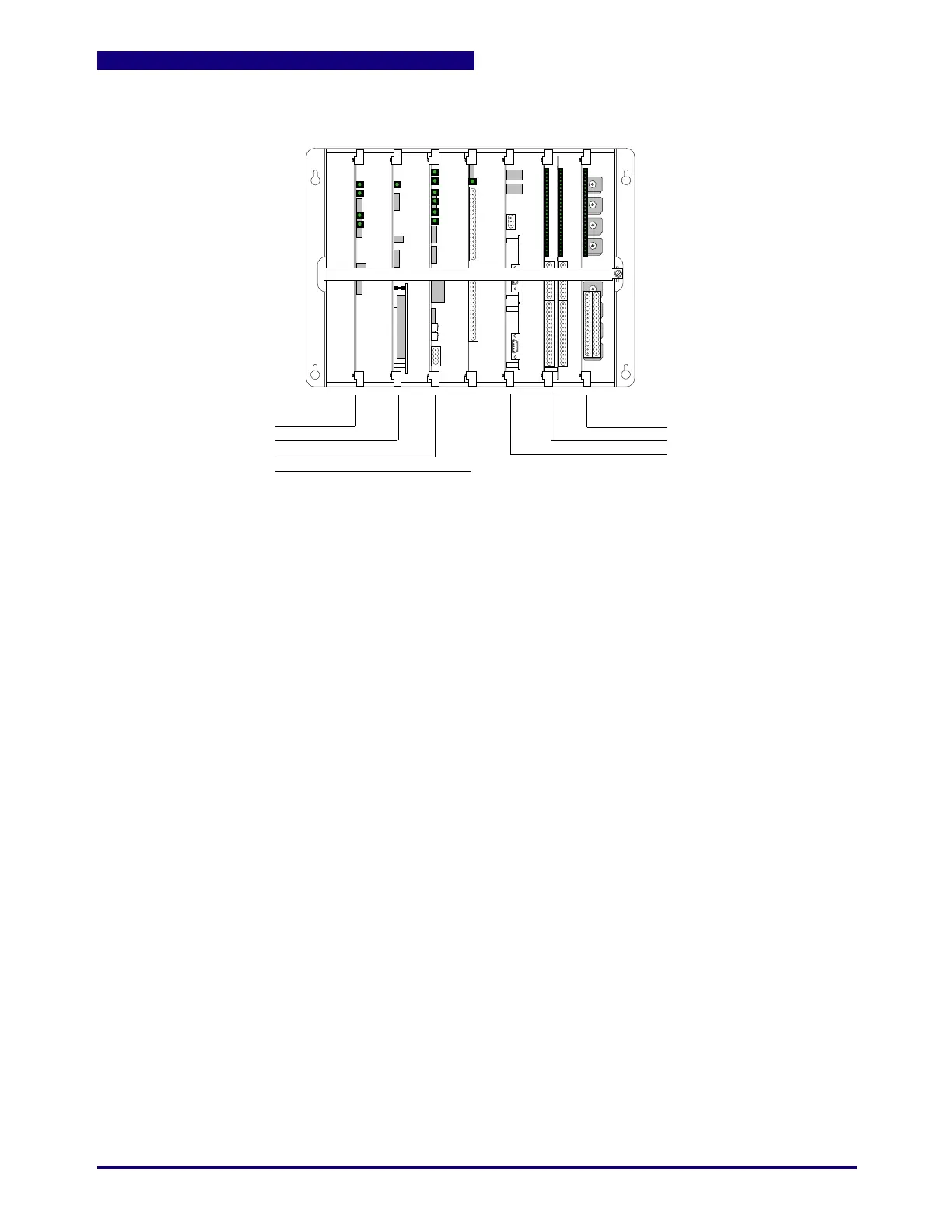

Figure 1.7 7 Slot Controller Board Locations
Sequence/Hydraulics
Slot #2*
Data Handler
Slot #4
Slot #7
Slot #6
Power Supply & Communications
*If process control/line graphs is
specified in sequence options, this
slot must have Analog I/O card.
Note: When counting boards in multi-rack systems (for
switch settings, RLD/screen programming) count each
control rack separately.
Slot 1: Sequence/Hydraulics (only)
Slot 2: Analog I/O*, T/C-Analog or Parison/Motion
Slot 3: Data Handler (only)
Slot 4: T/C-Analog or Parison/Motion
Slot 5: Power Supply & Communications (only)
Slot 6: Combo I/O or Analog Output
Slot 7: Combo I/O or Analog Output
