1640-IN-031-C-08 Page 57 of 104
MACO Series Controller Installation
Eurotherm/Barber-Colman

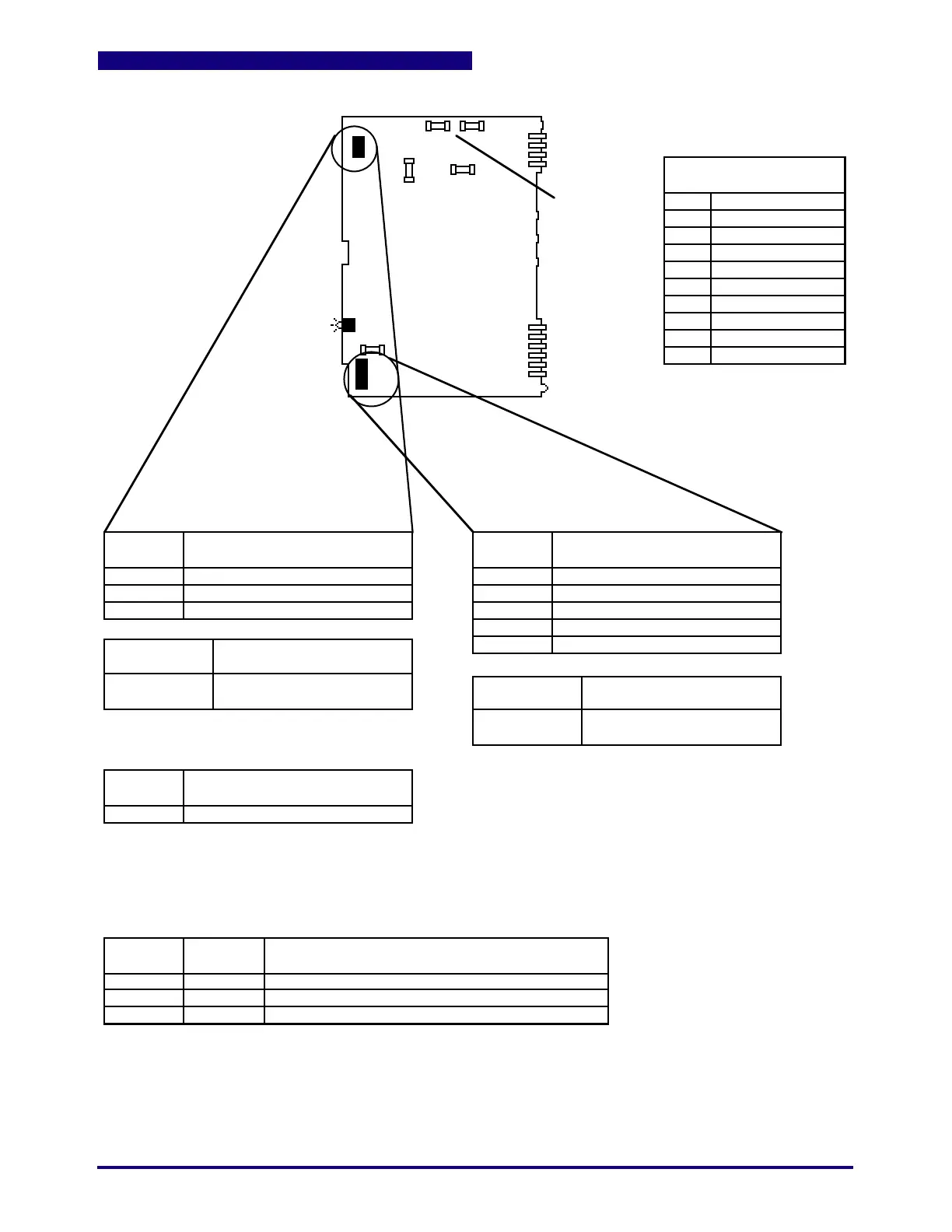

Figure 8.0 A-13395 Power Supply Board
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
POWER SUPPLY
OUTPUTS TO BUS
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
PIN
NUMBER
CONNECTOR
(ON CARD)
MATING
CONNECTOR
LEDs
DS1
P11
F4
P12
1
2
3
PIN
NUMBER
1
2
3
4
5
P11 P12
DS1
SPARE FUSES
(1 each)
+15 Vdc (to Flatpanel)
No Connection
Flatpanel Common
L1 (100 to 250 Vac IN)
No Connection
L2 Vac IN
No Connection
Earth Ground
Line Voltage in ON
FUSES
F1
F3
F4
BC
Part No.
E15-114
E15-107
E15-107
4 Amp, 250V
3 Amp, 250V*
3 Amp, 250V*
5 Vdc Supply
15 Vdc Supply
Line Voltage In (P12, No. 1)
CONNECTOR
(ON CARD)
MATING
CONNECTOR
E24-1135-003
E24-1134-003
E24-1446-005
E24-1134-005
KEY
See Cable Assemblies
for Wire Description
*5X20mm "fast acting," Littelfuse 235-003 ONLY!
+5 Vdc Common
+5 Vdc
+5 Vdc Common
+5 Vdc
+5 Vdc Common
Not Used
28 Vac ØA
28 Vac ØB
Not Used
Guard
F1
F3
