R5905754 /13 DPxK-32B46
WARNING: Always wear protective clothing (welder's jacket) when handling xenon lamps.
WARNING: Always wear clean leather gloves with wrist protectors when handling xenon lamps.
This procedure assumes that the anode support assembly and the side cover are already removed
from the Lamp House due to the removal of the xenon lamp.
Required tools
• Torque wrench with a 2.5mm Allen socket.
• 1.5mm Allen wrench.
• 22mm open-end wrench.
• Torque wrench with a 22mm hexagon socket.
• Torque wrench with a 5mm Allen socket.
How to install the xenon lamp in the manual XL Lamp House?

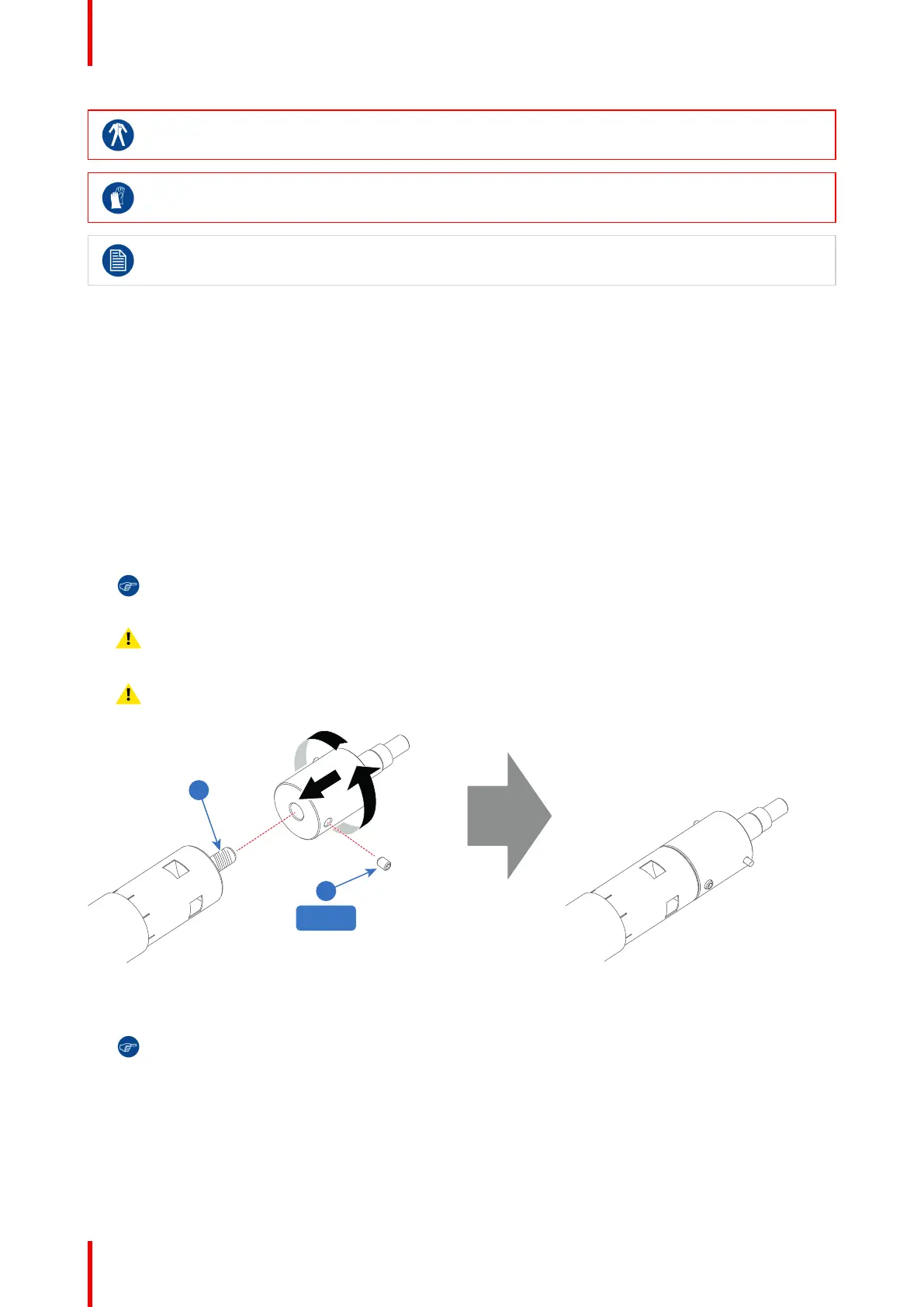

1. Install the appropriate lamp cathode adapter on the cathode of the xenon lamp. Note that some xenon lamps
have a cathode pin with screw threat (reference 10 Image 4-17). Screw the adaptor on the anode pin as far as
possible. Make sure that there is full contact between the adapter flat surface and the lamp base. Fasten the
set screw (reference 9 Image 4-17) of the cathode adapter with a torque of 2.5Nm (1.84 lbf*ft). Use a torque
wrench with a 2.5mm Allen socket.
Tip: See supported xenon bulb lamps to know which cathode adapter your lamp requires.
Caution: Ensure that the adaptor is clean. Periodically clean the adapter. Remove oxide from silver
plated adaptor with standard household metal polish (E.g. Brasso).
Warning: Install the cathode adapter prior to removing the protective container or protective cloth from
the xenon lamp.
Image 4-17
2. Requires the xenon lamp an anode adapter?
Tip: See supported xenon bulb lamps to know if your lamp requires an anode adapter.
If yes, install the appropriate lamp anode adapter on the anode of the xenon lamp. Fasten the set screw
(reference 13 Image 4-18) of the anode adapter with a torque of 2.5Nm (1.84 lbf*ft). Use a torque wrench with
a 2.5mm Allen socket. Make sure that there is full contact between the adapter flat surface and the lamp base.
