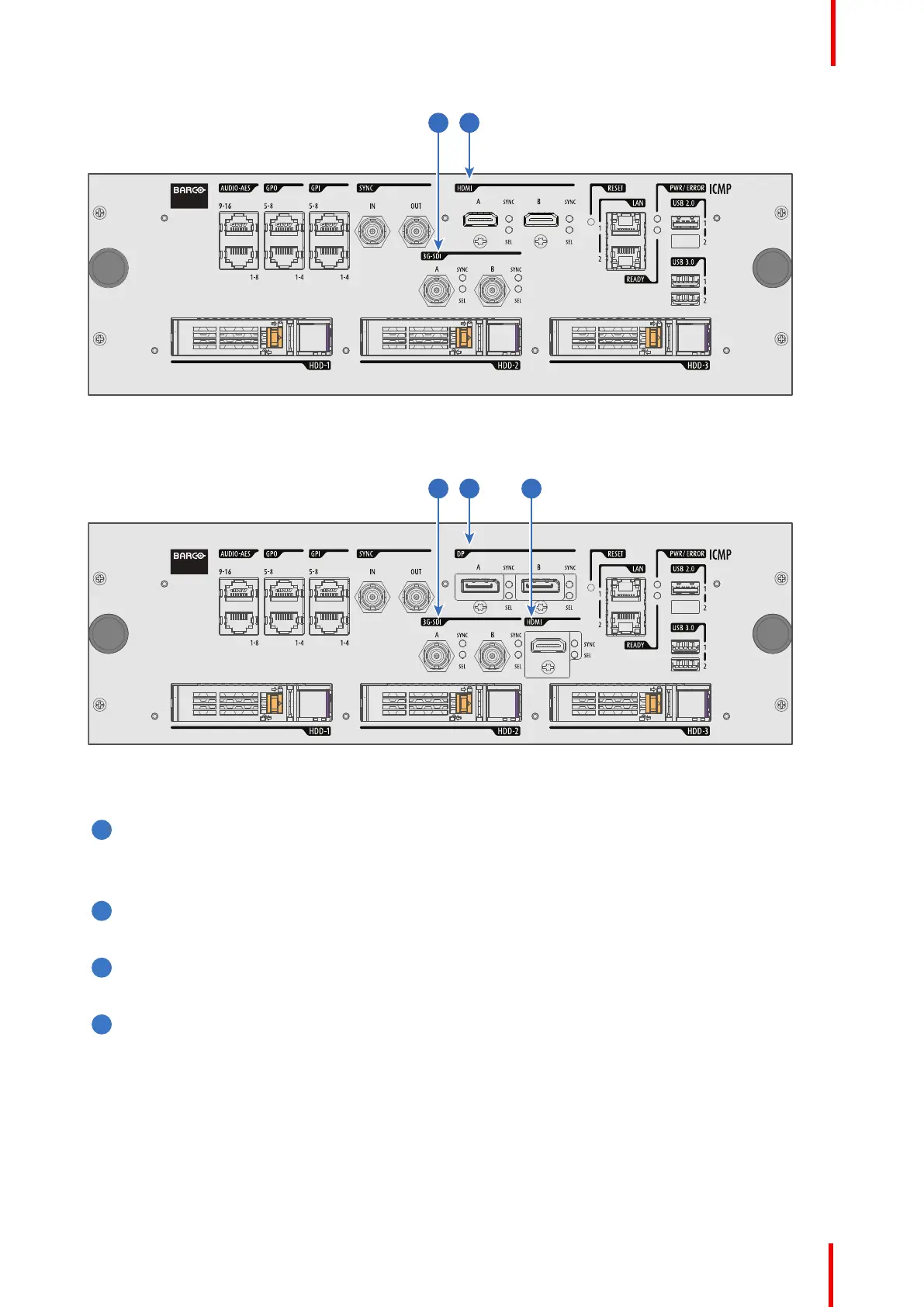

Image 8-20: ICMP(-X) (with HDMI 2.0).
ICMP with DisplayPorts (Reference 11, Image 8-21) and HDMI 1.4 (Reference 10, Image 8-21) are still
present on the field.
119 10
Image 8-21: ICMP (with DisplayPort and HDMI 1.4).
Functionality
8
HDMI A (B)
HDMI 2.0 connector to connect a video source.
NOTE: It is recommended to use the HDMI 2.0 ports for faster transfer of video and audio data.
9
3G-SDI A (B)
SDI connector to connect a video source.
10
HDMI
HDMI 1.4 connector to connect a video source.
11
DisplayPort A (B)
DisplayPort connector to connect a video source.
ICMP(-X)
