Basler BE1-11g User Manual

9424200994 Rev N 119

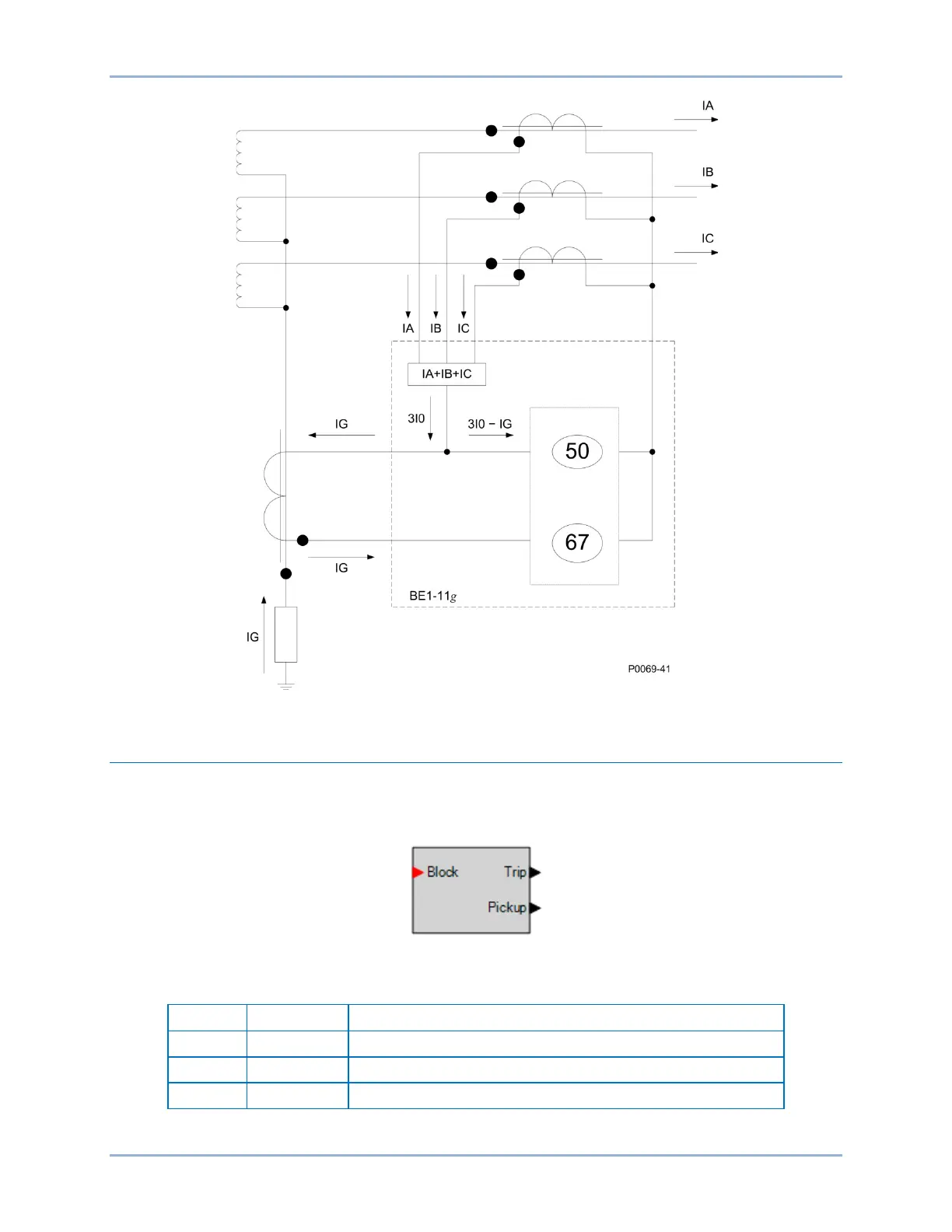

Figure 73. Current-Polarized Directional Scheme for BE1-11g CT Connection
Logic Connections
Neutral current differential element logic connections are made on the BESTlogicPlus screen in
BESTCOMSPlus. The neutral current differential element logic block is illustrated in Figure 74. Logic
inputs and outputs are summarized in Table 42.
Figure 74. Neutral Current Differential Element Logic Block
Table 42. Logic Inputs and Outputs
Name
Function
Purpose
Block
Input
Disables the 87N function when true
Trip
Output
True when the 87N element is in trip condition
Pickup
Output
True when the 87N element is in pickup condition
BE1-11g Neutral Current Differential (87N) Protection
