Terminals and Connectors
Connections to the BE1-11g are dependent on the application and logic scheme selected by the user. As
a result, some BE1-11g inputs and outputs may not be used for a given application. Before energizing a
BE1-11g, make sure the connections match the options associated with the model and style number
found on the BE1-11g nameplate. Refer to the style chart in the Introduction chapter for available options.
Be sure to use the correct input power for the specified power supply. Incorrect wiring may result in
damage to the BE1-11g.
Connections to the BE1-11g voltage inputs, contact inputs, power
supply inputs, and contact outputs should be made with a minimum
wire size of 14 AWG (2.08 mm
2
).
Connections to the BE1-11g current inputs and ground terminal should
be made with a minimum wire size of 12 AWG (3.31 mm
2
).
When the BE1-11g is configured in a system with other protective
devices, a separate ground bus lead is recommended for each BE1-
11g.
BE1-11g protection systems are supplied in either an S1 size case (J option) or an H1 size case (H or P
option).
J Type Case
Figure 199 shows the rear-panel connections with an RJ45 Ethernet connector. Figure 200 shows the
rear-panel connections with a fiber optic Ethernet connector.

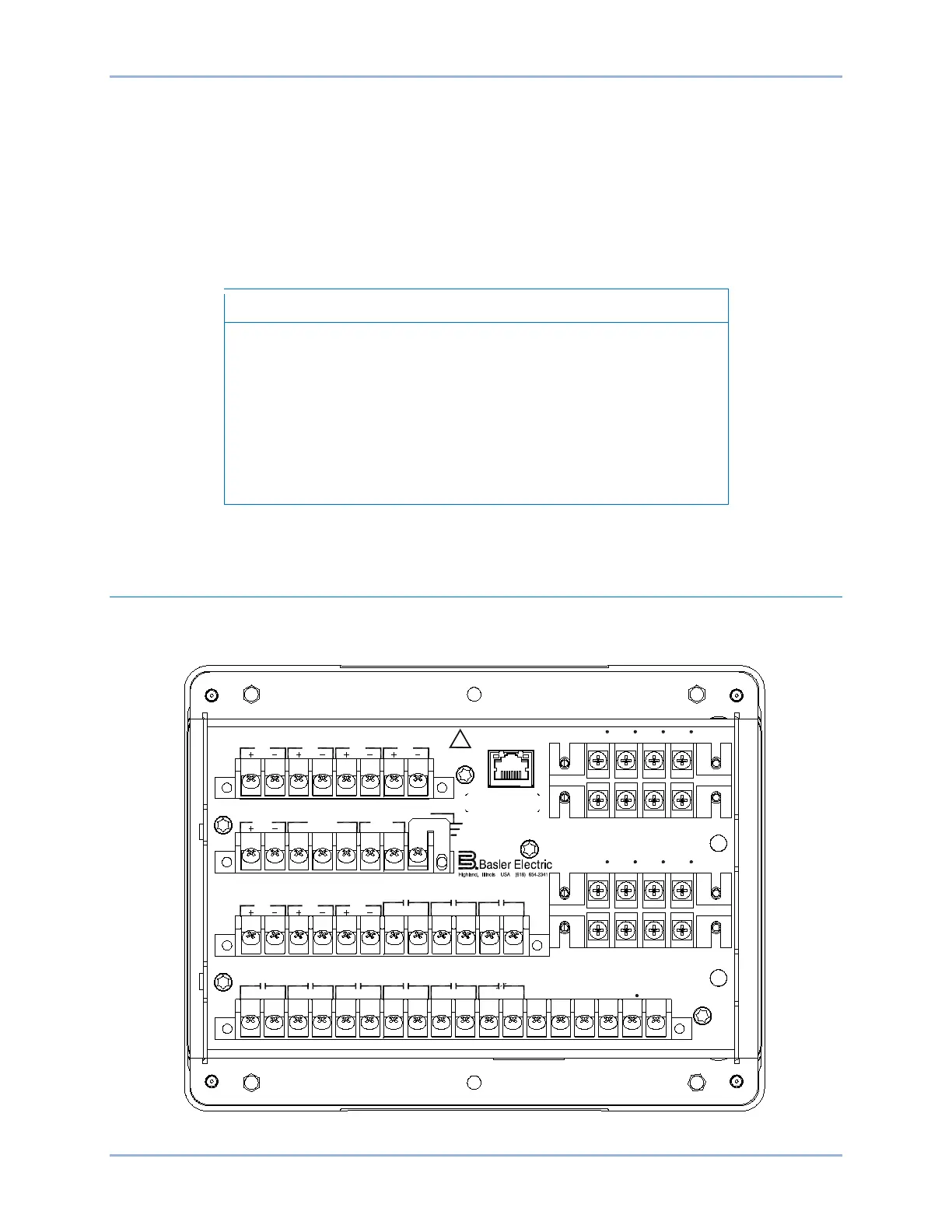

Figure 199. Rear-Panel Connections with RJ45 Ethernet (J Type Case)
ETHERNET
!
WARNING
BE1-11
C12C11C10C9C8C7C6C5C4C3C2C1 C13 C14 C15 C16 C17 C18
V
A
OUT 2 OUT 3 OUT 4 OUT 5OUT 1 ALARM V
B
V
C
V
X
V
X
N
E12E11E10E9E8E7E6E5E4E3E2E1
OUT 8 OUT 7
IN5 IN6
IN7
OUT 6
A8A7A6A5A4A3A2A1
IRIG PWR
CA B
RS-485
GND
B8B7B6B5B4B3B2B1
IN1 IN2
IN3
IN4
D1 D3 D5 D7
I
A1
I
B1
I
C1
I
G1
I
A1
D2 D4 D6 D8
I
B1
I
C1
I
G1
I
A2
F2 F4 F6 F8
I
B2
I
C2
I
G2
F1 F3 F5 F7
I
A2
I
B2
I
C2
I
G2
P0061-43
BE1-11g Terminals and Connectors
