Basler BE1-11g User Manual

166 9424200994 Rev N
Block input to the desired logic in BESTlogicPlus. When the element is initially selected from the
Elements view, the default condition of the Block input is a logic 0.
Logic Connections
Logic timer element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The
logic timer element logic block is illustrated in Figure 108. Logic inputs and outputs are summarized in
Table 63.

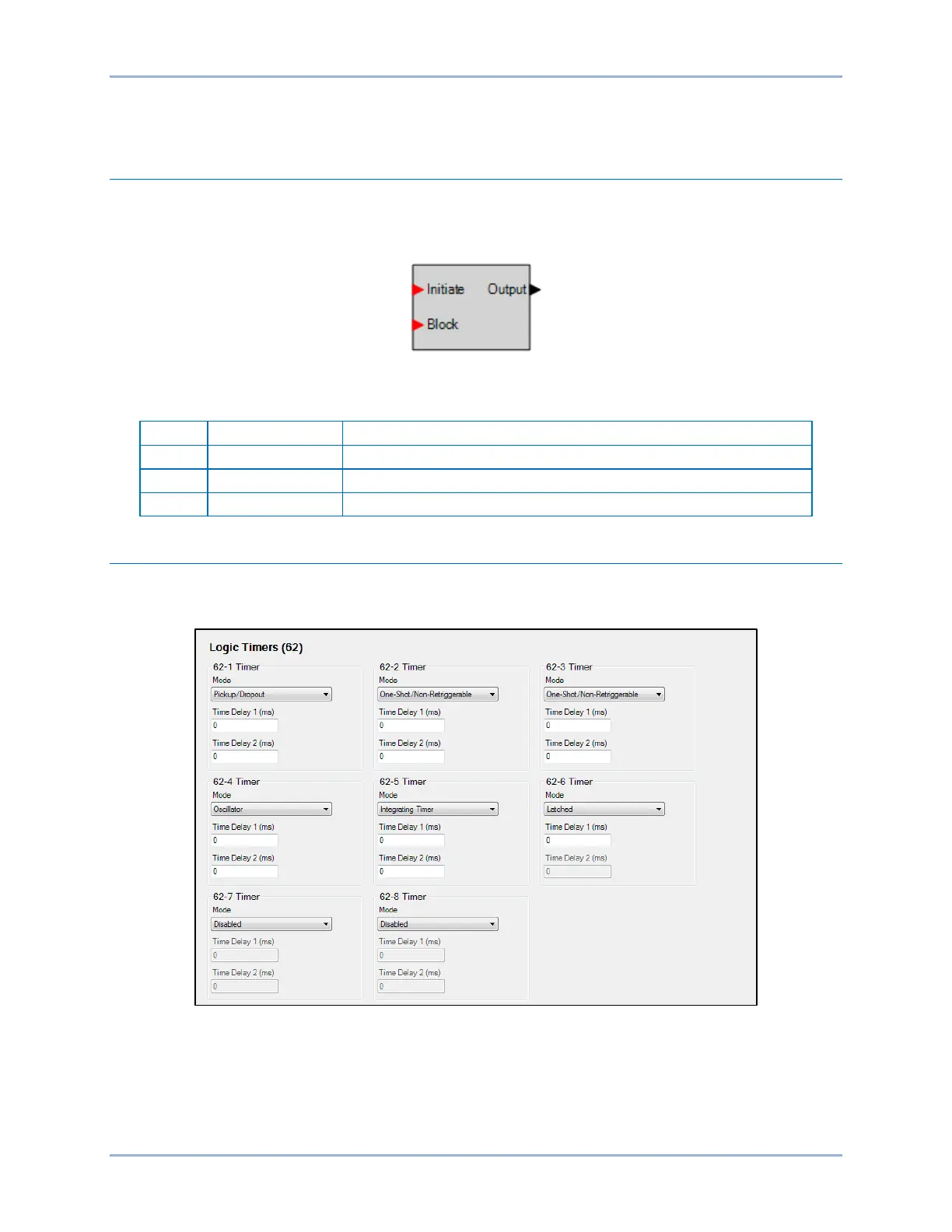

Figure 108. Logic Timer Element Logic Block
Table 63. Logic Inputs and Outputs
Name
Logic Function
Purpose
Initiate
Input
Starts the 62 timing sequence
Block
Input
Disables the 62 function when true
Output
Output
True when 62 timing criteria have been met according to mode
Operational Settings
Logic timer element operational settings are configured on the Logic Timers (62) settings screen (Figure
109) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 64.
Figure 109. Logic Timers Settings Screen
Logic Timers (62) BE1-11g
