9424200994 Rev N 211
Differential Reporting
The BE1-11g records information about the phase current differential (87) status of the BE1-11g and
creates a differential report. Only one report is stored in nonvolatile memory. When a new report is
generated, the BE1-11g discards the old report and replaces it with the new one.
To view differential reports using BESTCOMSPlus®, use the Metering Explorer to open the Reports,
Differential Report screen shown in Figure 147.
From this screen, you can choose to Download the latest differential report into BESTCOMSPlus, Save
the latest differential report to a file, or Trigger a new differential report.

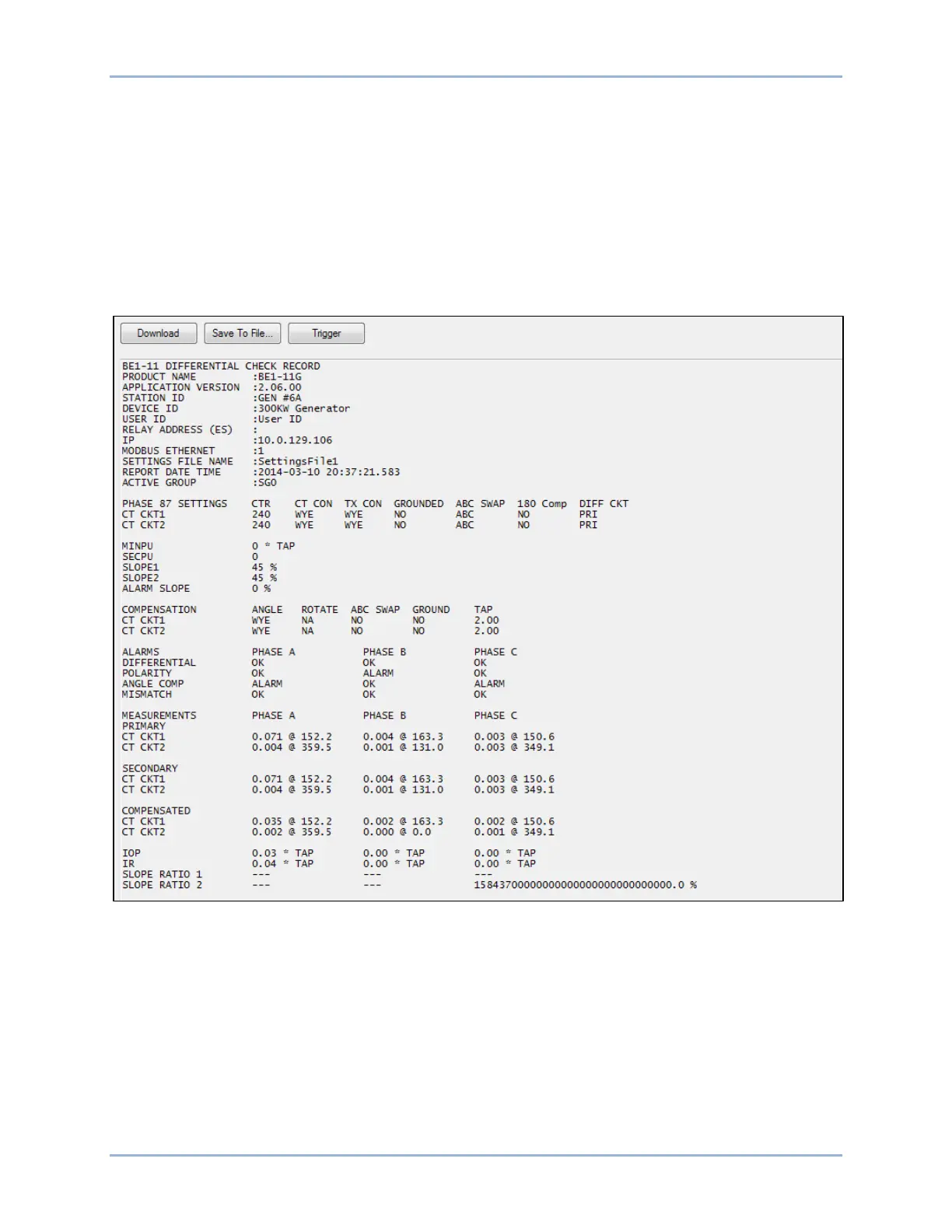

Figure 147. Differential Report Screen
BE1-11g Differential Reporting
