Controls and Indicators
BE1-11g controls and indicators are located on the front panel and include sealed membrane switches,
LED (light emitting diode) indicator lamps, and a multiple-line, alphanumeric LCD (liquid crystal display).
Illustrations and Descriptions
The HMI (Human-Machine Interface) of a BE1-11g in a J type case is illustrated in Figure 23 and
described in Table 2. The locators and descriptions of Table 2 correspond to the locators shown in
Figure 23.

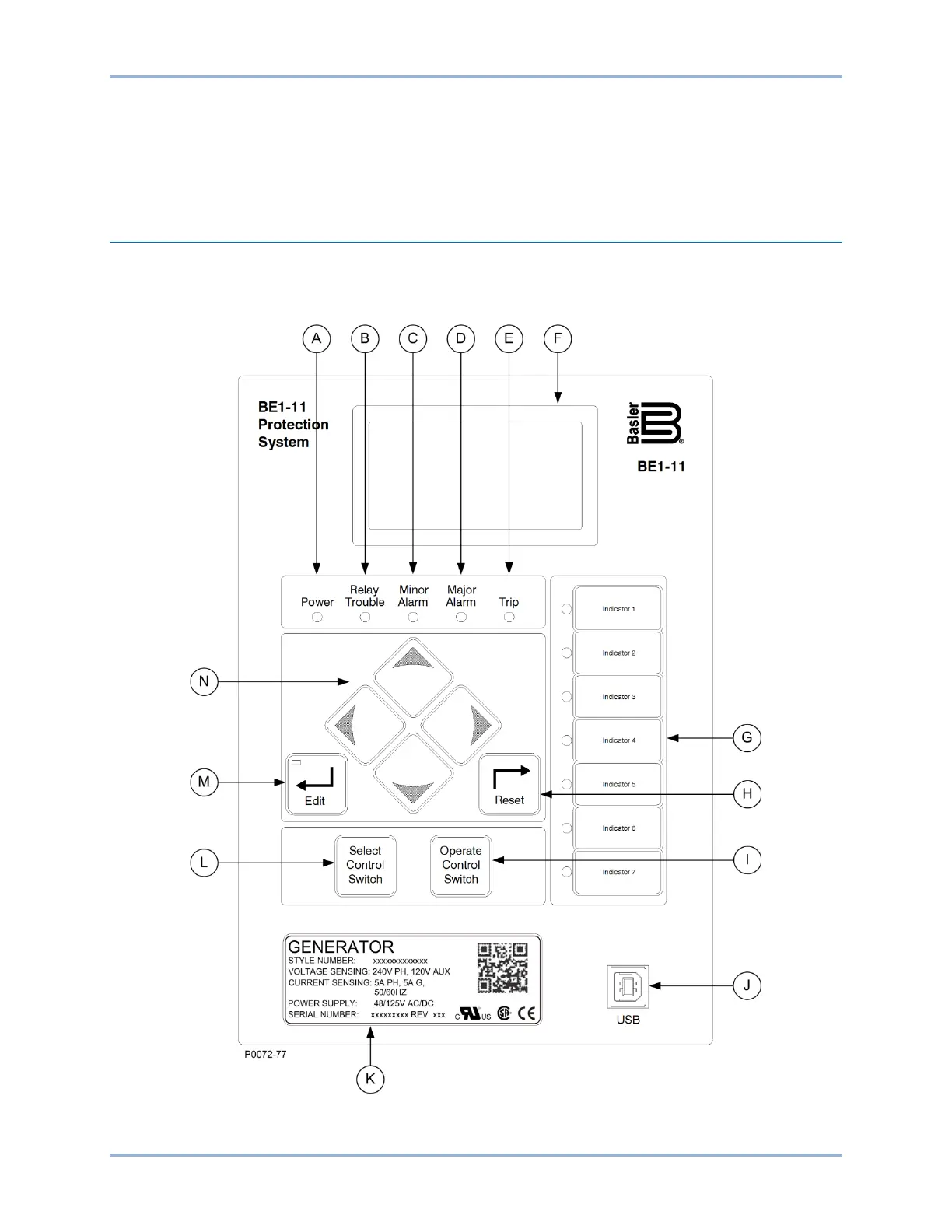

Figure 23. Front Panel (J Type Case)
