Basler BE1-11g User Manual

9424200994 Rev N 137

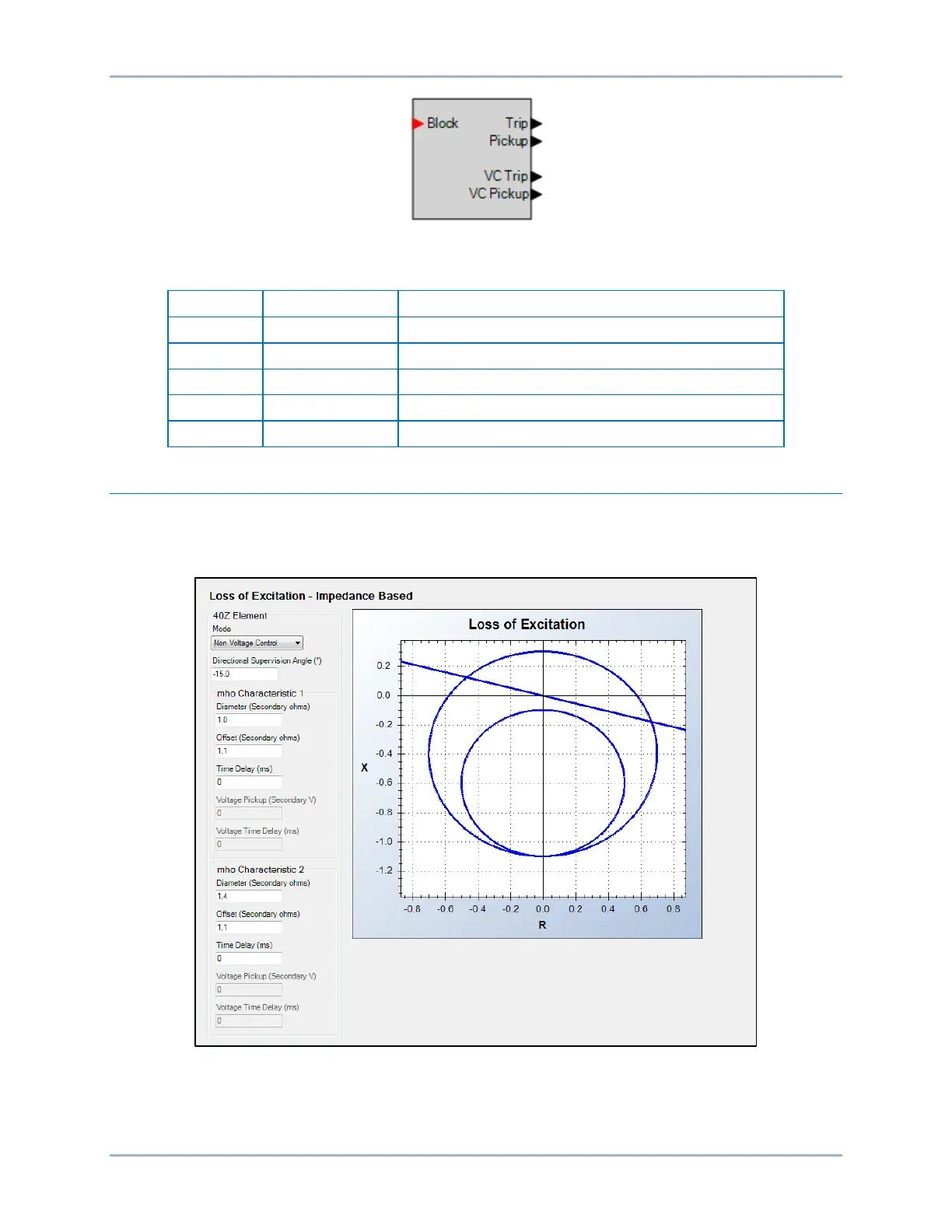

Figure 85. Loss of Excitation - Impedance Based Element Logic Block
Table 50. Logic Inputs and Outputs
Name
Logic Function
Purpose
Block
Input
Disables the 40Z function when true
Trip
Output
True when the 40Z element is in a trip condition
Pickup
Output
True when the 40Z element is in a pickup condition
VC Trip
Output
Voltage Control pickup
VC Pickup
Output
Voltage Control trip
Operational Settings
Loss of excitation - impedance based element operational settings are configured on the Loss of
Excitation - Impedance Based (40Z) settings screen (Figure 86) in BESTCOMSPlus. Setting ranges and
defaults are summarized in Table 51.
Figure 86. Loss of Excitation - Impedance Based Settings Screen
BE1-11g Loss of Excitation - Impedance Based (40Z) Protection
