Power System Applications
The following figures show examples of the applications that can be served by the Basler Electric
BE1-11g Generator Protection System. Many of these applications can be used in concert with other
Basler numeric systems such as the BE1-851 Overcurrent Protection System, the BE1-11f Feeder
Protection System, or any other member of the BE1-11 family of protection systems.
Refer to the Basler Electric website for detailed application notes and logic scheme downloads.

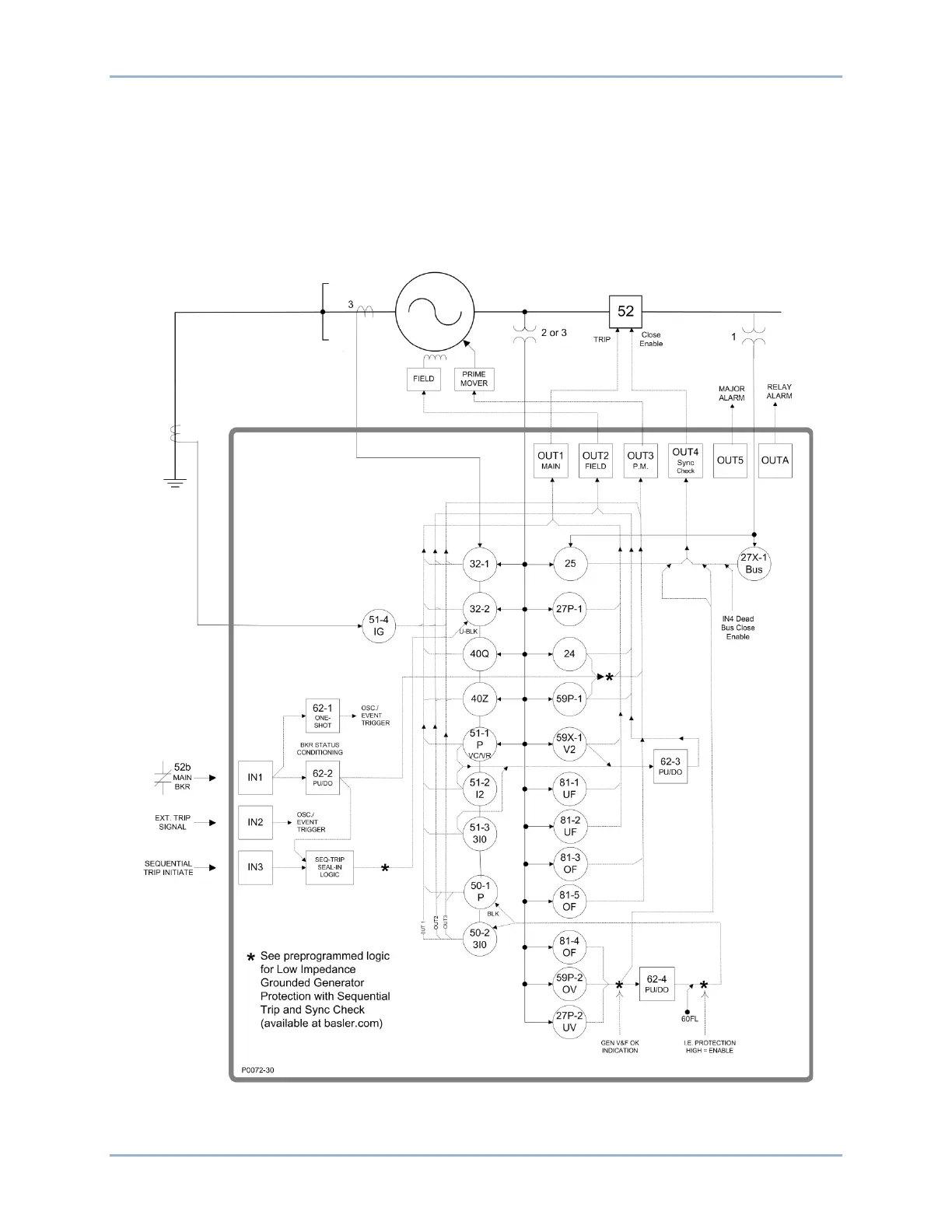

Figure 211. One-Line Diagram of Low Impedance Grounded Generator Protection with Sequential Trip and
Sync-Check
BE1-11g Power System Applications
