Basler BE1-11g User Manual

9424200994 Rev N 631

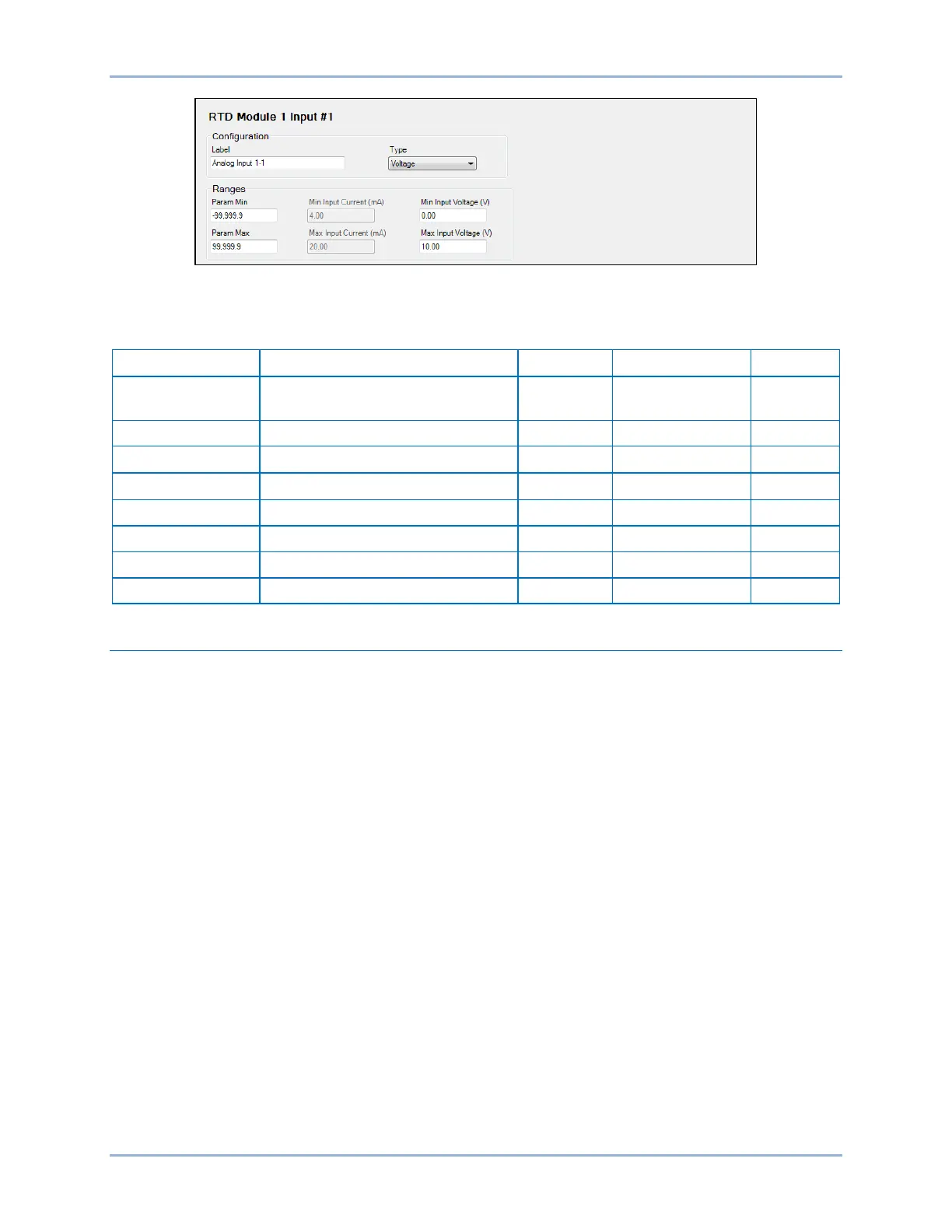

Figure 385. Module 1 Input #1 Screen
Table 257 summarizes the configuration settings for remote analog inputs.
Table 257. Configuration Settings for Remote Analog Inputs
Setting
Range
Increment
Unit of Measure
Default
Label Up to 64 alphanumeric characters n/a n/a
Module 1
Input 1
Type
Voltage or Current
n/a
n/a
Voltage
Param Min
–99,999.9 to 99,999.9
0.1
n/a
–99,999.9
Param Max
–99,999.9 to 99,999.9
0.1
n/a
–99,999.9
Min Input Current
4 to 20
0.01
milliamps
4
Max Input Current
4 to 20
0.01
milliamps
20
Min Input Voltage
0 to 10
0.01
volts
0
Max Input Voltage
0 to 10
0.01
volts
10
Remote Analog Outputs Configuration
The RTD module provides four analog outputs. The BE1-11g supports two RTD modules at once.
Configuration Settings
BESTCOMSPlus Navigation Path: Settings Explorer, Programmable Outputs, Remote Analog Outputs
HMI Navigation Path: Settings Explorer, Analog Outputs
Configuration settings are made using the BE1-11 plugin for BESTCOMSPlus. To program the
configuration settings, use the Settings Explorer to open the Programmable Outputs, Remote Analog
Outputs tree branch and select the module and output to be modified. Refer to Figure 386. Use the drop-
down menu under Param Selection to select a parameter. Select the Output Type. The analog outputs
are always monitored and their status is displayed on the appropriate metering screens. The BE1-11g
reports Out of Range when an RTD module is disconnected.
Ranges must be set for the selected output type. Param Min correlates to Min Output Current or Min
Output Voltage and Param Max correlates to Max Output Current or Max Output Voltage.
BE1-11g RTD Module
