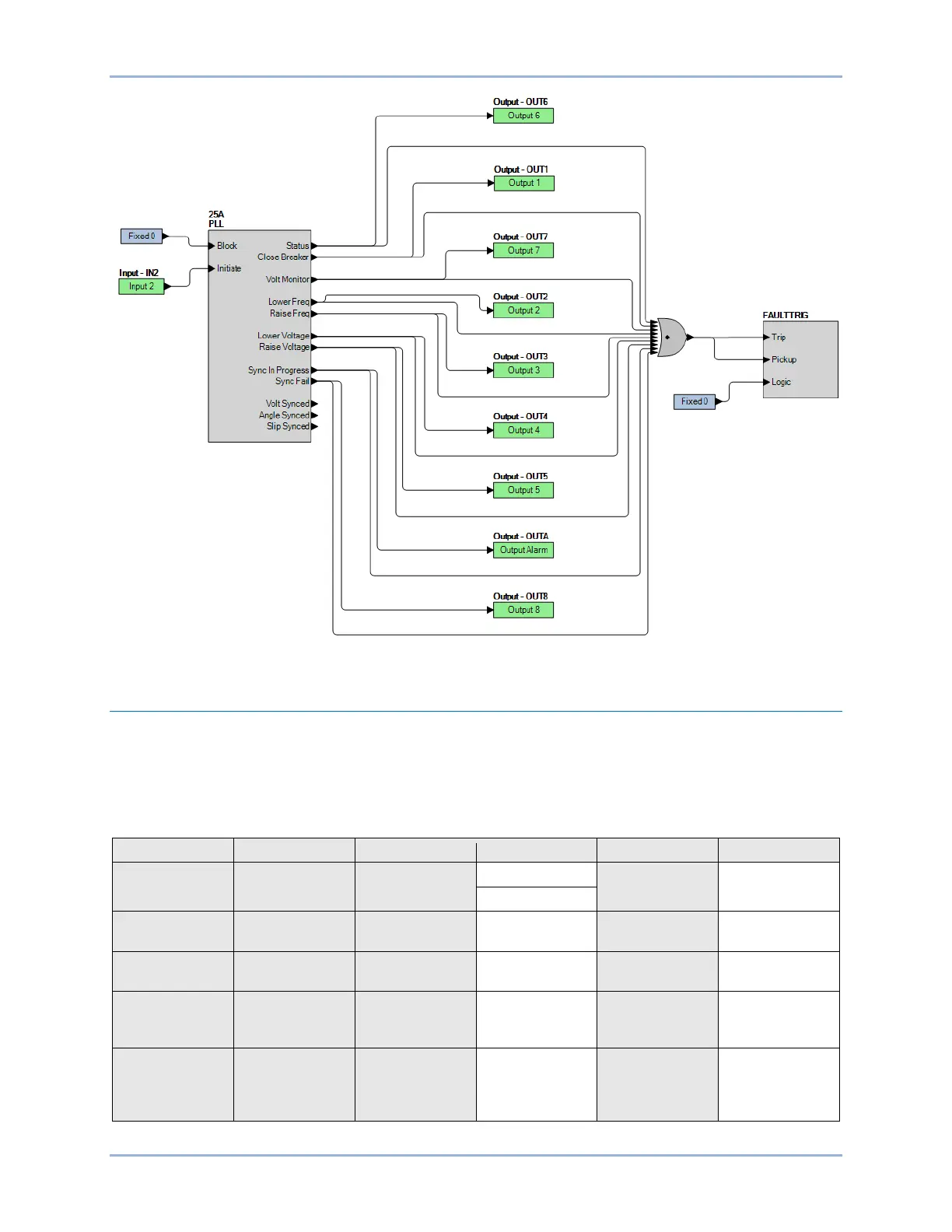

Figure 316. BESTlogicPlus Settings 2 (25A)
Functional Test Report - PLL
ΔV Accuracy = ±2% or ±1V, whichever is greater.
Slip Freq Accuracy = ±0.01Hz
Min/Max Slip Accuracy = ±0.01Hz
Breaker Close Angle Accuracy = ±1°
Test
Setting
Low
Actual
High
Pass/Fail
ΔV Increasing
15% (79.67 V)
78.67 V
80.67 V
P / F
ΔV Decreasing
15% (58.89 V)
57.89 V
59.89 V
P / F
Slip Freq
Increasing
0.5 Hz 60.49 Hz 60.51 Hz P / F
Slip Freq
Decreasing
0.5 Hz 59.49 Hz 59.51 Hz P / F
Breaker Close
Angle
Increasing (AΦ)
20° 19° 21° P / F
Breaker Close
Angle
Decreasing
(AΦ)
20° –19° –21° P / F
Synchronizer (25A) Test BE1-11g
