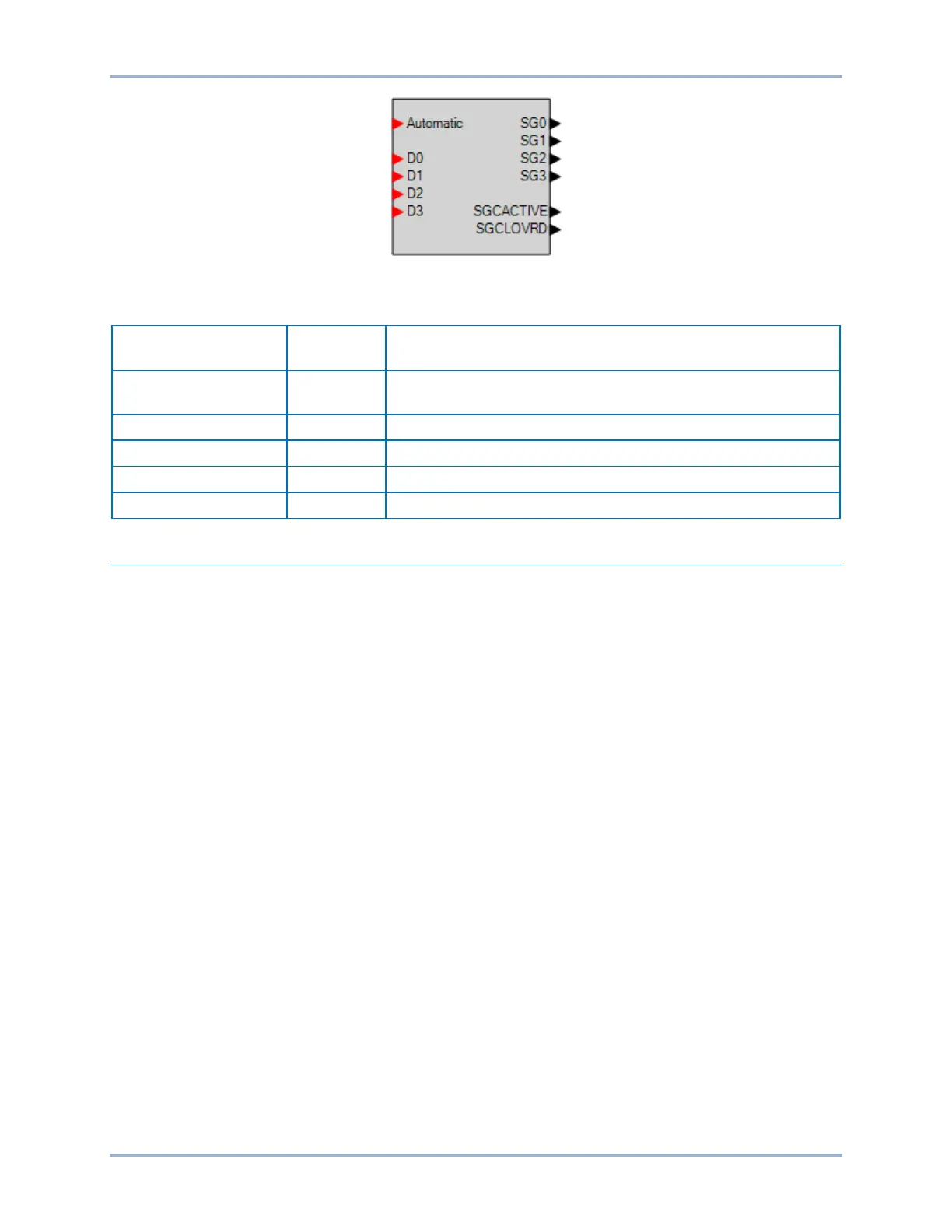

Figure 119. Setting Group Logic Block
Table 70. Logic Inputs and Outputs
Name
Purpose
Automatic Input
True when automatic control is enabled and false when logic
control is enabled
Meaning depends upon the Mode setting
True for the active setting group
True when Setting Group Control is Active
True when Setting Group Control is overridden by logic
Operational Settings
Setting group operational settings are configured on the Setting Group Setup screen (Figure 120) in
BESTCOMSPlus. Setting ranges and defaults are summarized in Table 71.
BE1-11g Setting Groups
