9424200994 Rev N 247
Mounting
BE1-11g protection systems are available in two case configurations. J-option protection systems are
supplied in a non-drawout, S1-size case that fits in a standard S1 panel opening. H- and P-option
protection systems are supplied in an H1-size case with drawout capabilities. An H1 case can be adapted
to a panel or rack for single- or double-case mounting. Adapter plates are sold separately. A BE1-11g can
be mounted at any convenient angle.
J Type Case Cutouts and Dimensions
Front dimensions are shown in Figure 181 and side dimensions are shown in Figure 182. Dimensions are
shown in inches [millimeters].

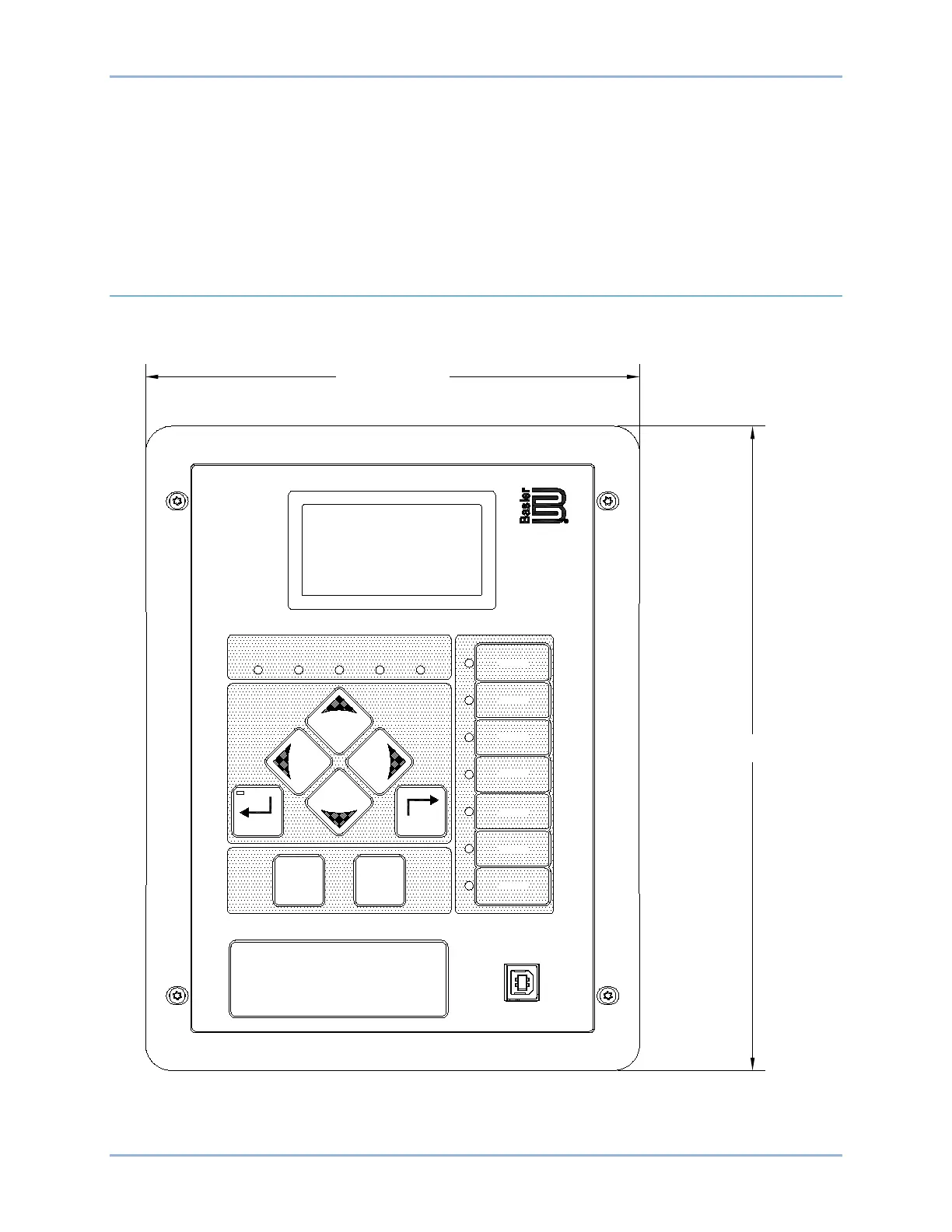

Figure 181. J Type Case - Front Dimensions
USB
7.00 [177.79]
9.12 [231.64]
P0072-74
BE1-11
Protection
System
Relay Minor Major
Power Trouble Alarm Alarm Trip
Edit
Reset
Indicator 1
Indicator 2
Indicator 3
Indicator 4
Indicator 5
Indicator 6
Indicator 7
Select
Control
Switch
Operate
Control
Switch
BE1-11
BE1-11g Mounting
