Mounting
RTD modules are contained in a potted plastic case and may be mounted in any convenient position
using UNC ¼-20 or equivalent screws. Hardware selection should be based on any expected
shipping/transportation and operating conditions. The torque applied to the mounting hardware should not
exceed 65 in-lb (7.34 N•m).

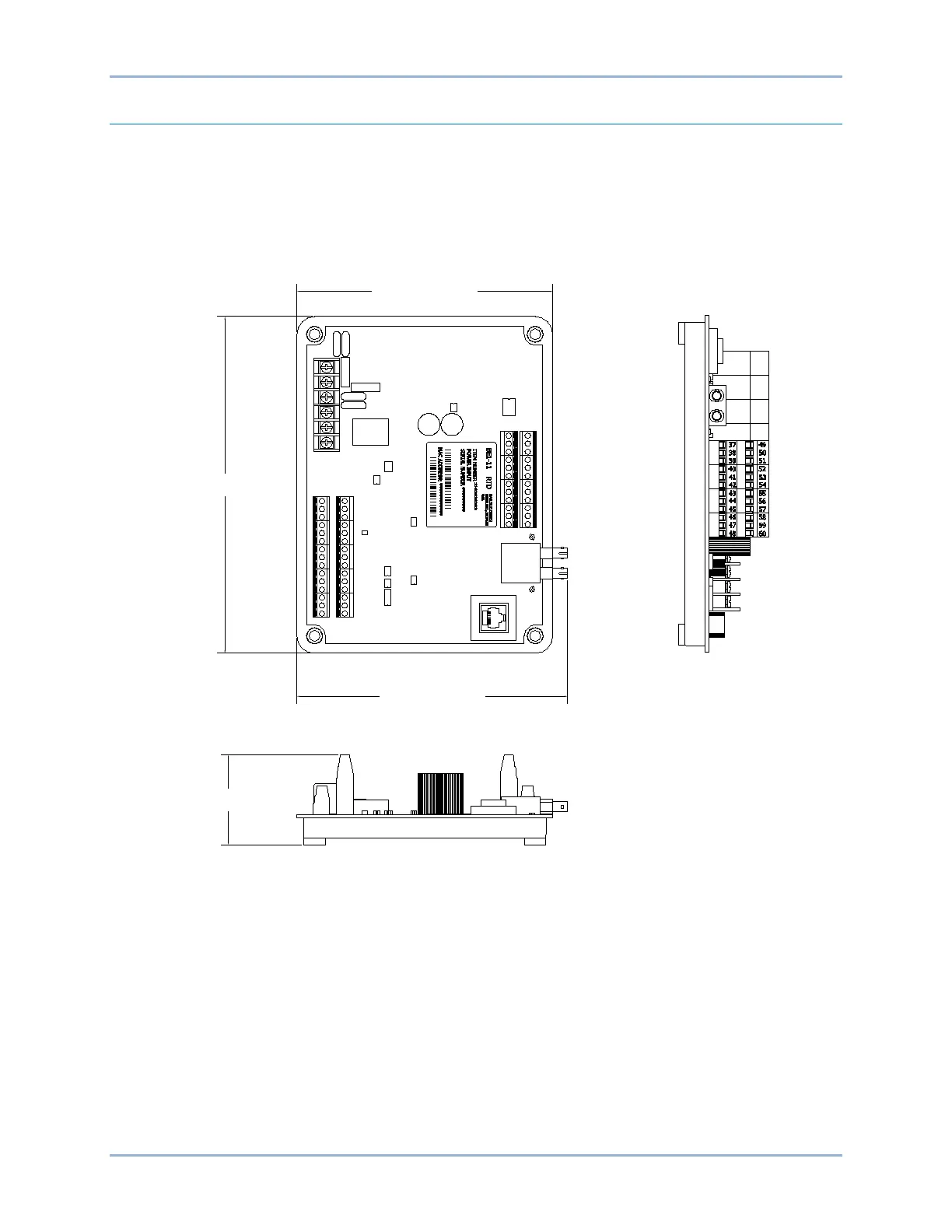

See Figure 365 for RTD module overall dimensions. All dimensions are shown in inches with millimeters
in parenthesis.
Figure 365. RTD Module Overall Dimensions
8.38 [212.75]
6.75 [171.35]
6.38 [161.95]
2.24 [56.84]
P0069-19
RTD Module BE1-11g
