Instruction Manual w VERTICUS 5 Compressor Units
A-35

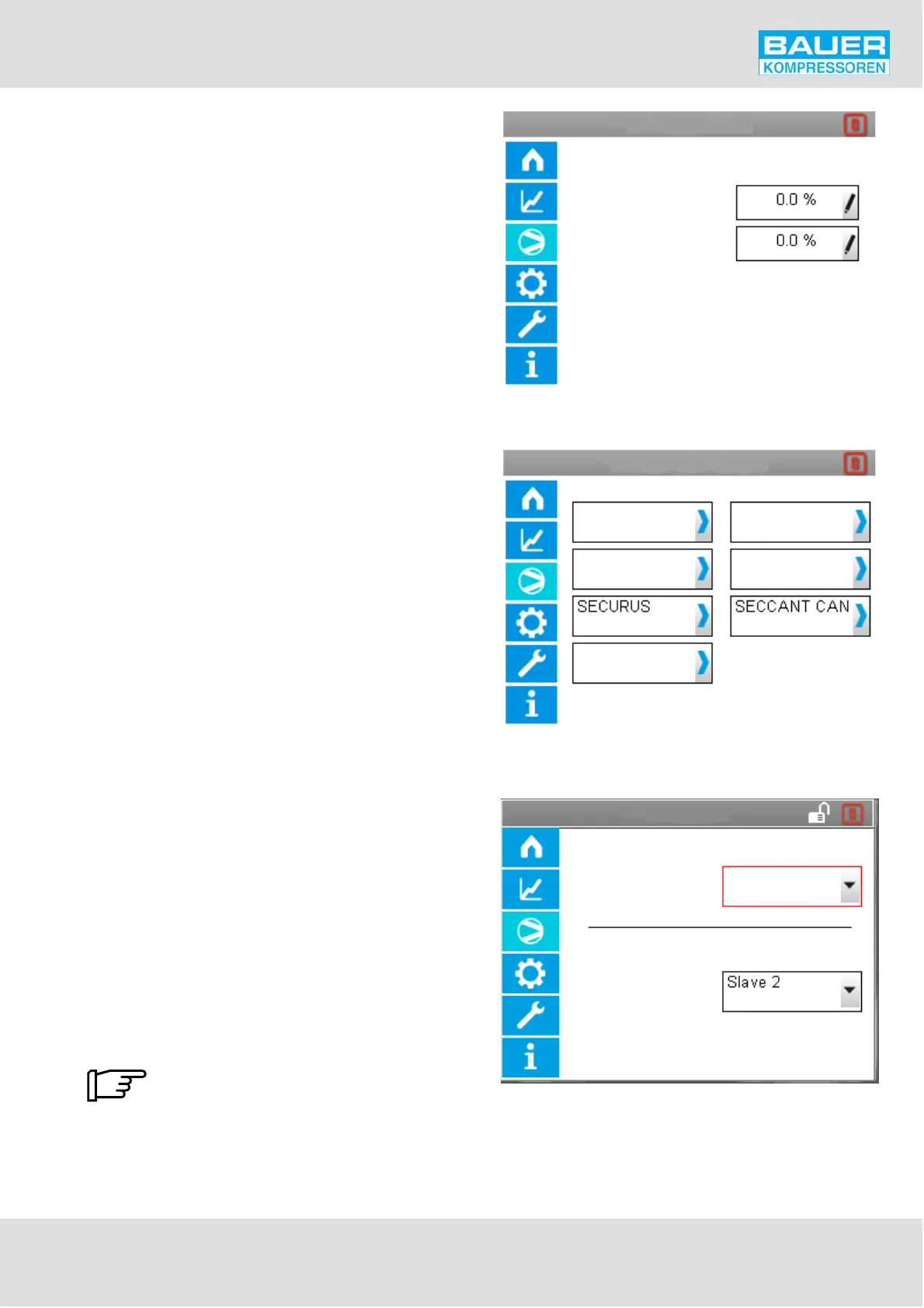

Gas balloon level (optional)
You must take account of the fact that the compressor stop
value is under the compressor start value. The compressor
thus stops if the level of the gas balloon falls below the
parametrised value and starts again if the level rises above
the compressor start value.
System settings:
The following options are available for selection:
- Operating modes
- Control logic
- Valves (condensate valves)
- Sensor settings
- SECURUS
- SECCANT CAN
- Lubrication
Operating mode (Example 1)
The following operating types are available for selection:
- Fully automatic
- Semi‐automatic
- Combined
- Nitrox Blending
For combination and Nitrox Blending additional selection
boxes are displayed in each case (otherwise hidden).
Left in the example for the combined operating mode. You
can then select here at which slave addresses the compres
sor is to be run.
Description of operating modes see
Chapter 11.3.1.
