Start control
Control 1
Logic-> and
Control 2
Final pressure 1
Final pressure 2
Stop control
Control 1
Logic-> and
Control 2
Final pressure 1
Final pressure 2
Control logic
Cond.valve
Cond.valve
Cond.valve
Cond.valve
Intake valve
Valve test
Valves
Cond.valve 1
Valve type
Interval
Drain duration
normally open
Instruction Manual w VERTICUS 5 Compressor Units
A-37

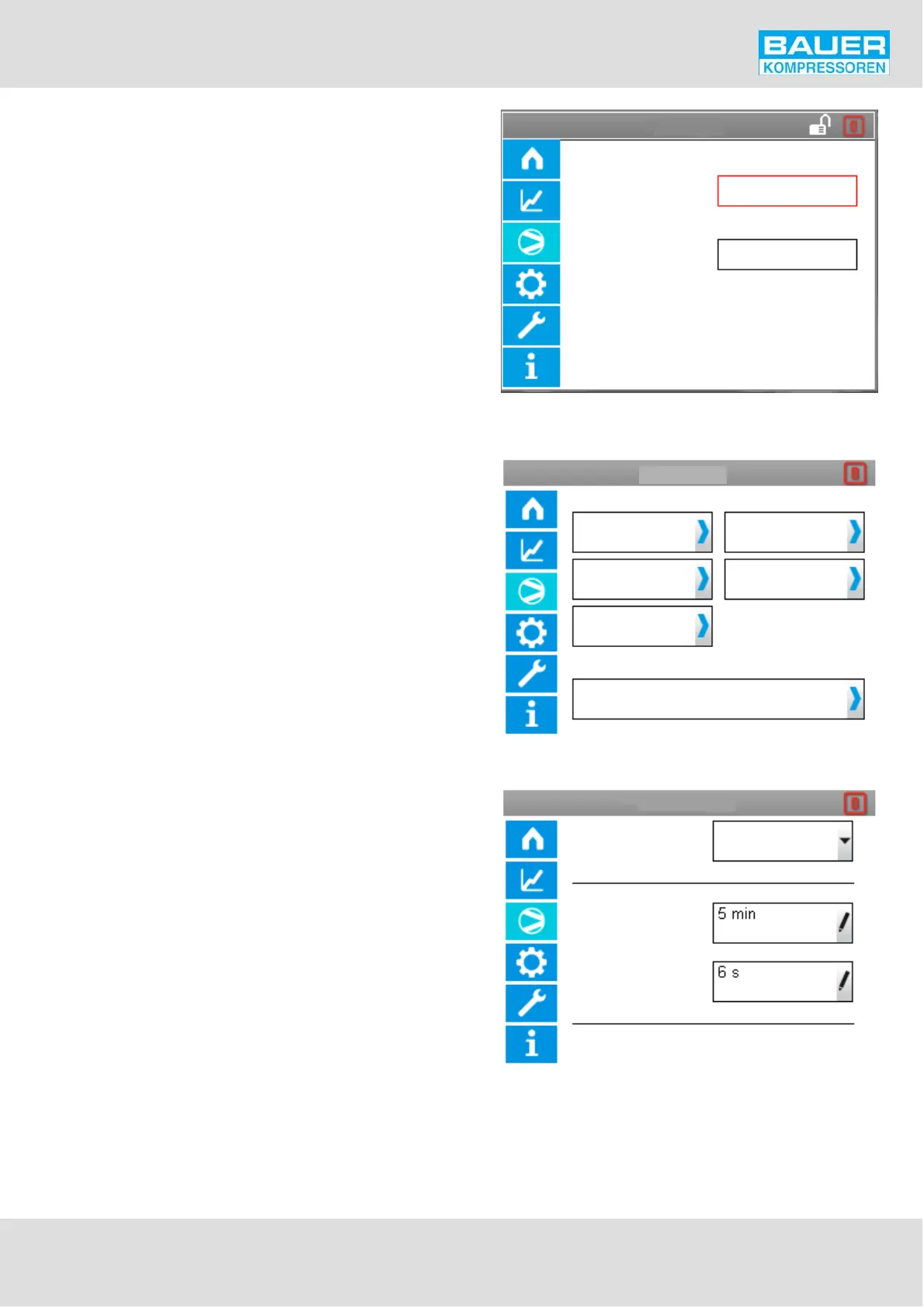

Control logic
On the Control logic screen the regulating parameters are
stipulated for controlling the compressor or combination
installation.
Control 1, control 2: selection between final pressure 1,
final pressure 2, intake pressure, gas balloon analogue, gas
balloon digital.
Intake pressure, gas balloon analogue, gas balloon digital
are only used for gas compression installation.
Interlink between control 1 and 2: selection between AND
and OR, i.e. whether one or both control points or both
need to be reached in order to start or stop the compressor.
Entitlement to editing from level "SERVICE"
Valves
Branching to the valve configuration and the valve test.
Non-registered valves are not displayed unless "CONFIG"
registered.
Condensate valve 14
Intake valve (Example condensate valve 1)
This page repeats for condensate valves 1 to 4. For valve
type the following can be selected: logged off, normally
open, normally closed.
For the intake valve the page is slightly different. Valve type
only logged off, normally closed. Instead of interval time,
start delay (in secs.) and instead of blow-off time switch off
delay.
Entitlements: Valve type: from level "CONFIG" and times
from level "OPERATION"
