Valve test
Cond.valve 1 closed
Cond.valve 2 open
Cond.valve 3 open
Intake valve 1 open
Sensors
Final pressure 1
Warning
Alarm
Range
Instruction Manual w VERTICUS 5 Compressor Units
A-38

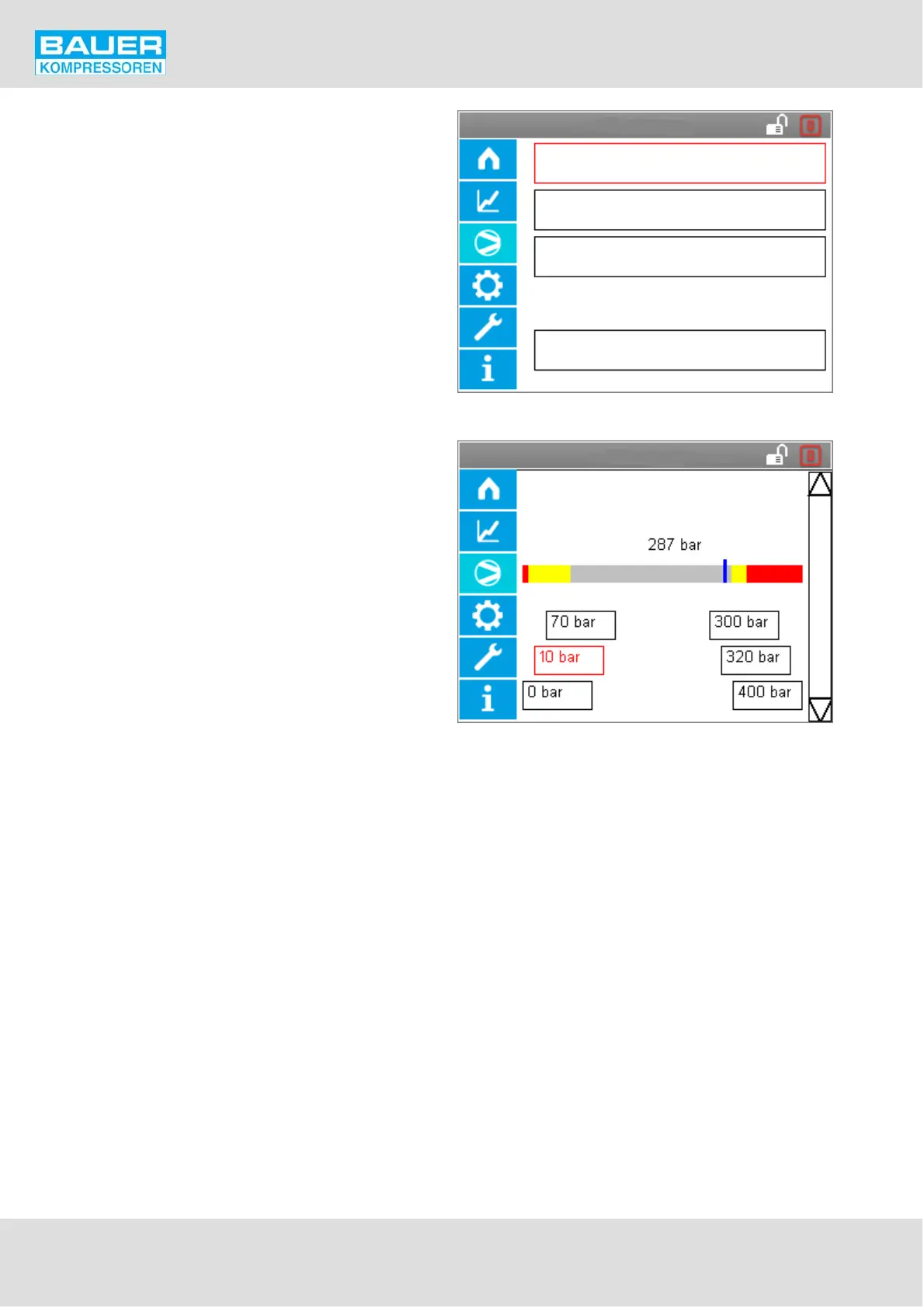

Valve test
Here we show on the one hand, the current condition of the
condensate valves/intake valve (open/closed) non- regis
tered valves are not shown.
For valve testing you can select the individually desired
valve using the cursor buttons and then opening or closing
manually with the ENTER button. If you leave the page, the
test status of the valves is cancelled.
Test mode Edit from level "OPERATION"
Sensor settings (Page 1)
Setting the sensor values. Each analogue channel occupies
one page. The threshold/warning values are shown per sen
sor according to the equipment level.
To Next Page
