Maintenance

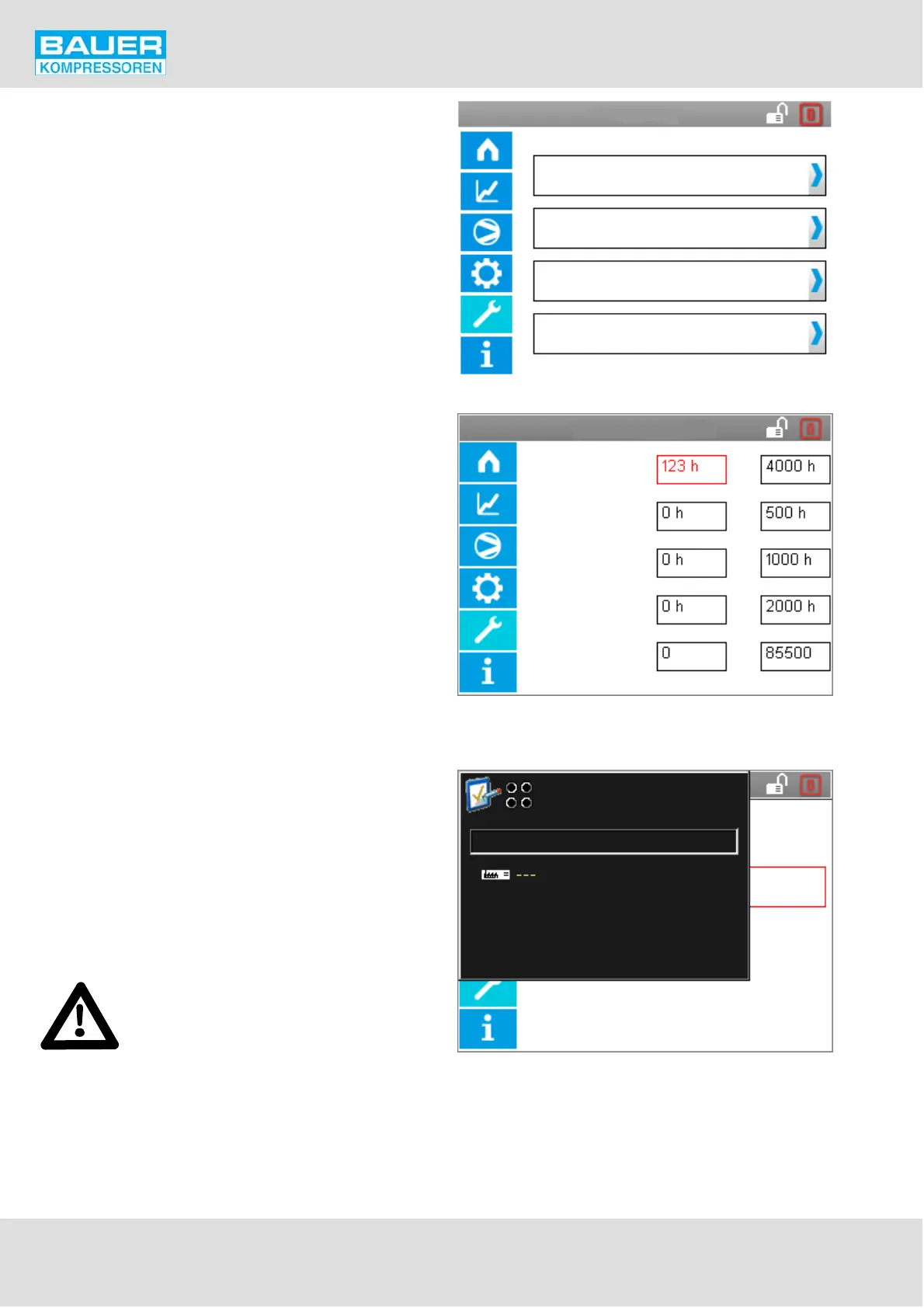

The Maintenance screen stipulates the maintenance
intervals and show the momentary values of the
compressor.
The box for Diagnosis is only displayed if the operator is
logged in as an Administrator.
Maintenance intervals
Total operating hours, start cycles and the target and actual
values of the maintenance work to be carried out:
Main maintenance (every 4,000 operating hours)
Intake filter maintenance (every 1,000 operating hours)
Oil change (every 2,000 operating hours)
Valve test (every 2,000 operating hours) and
Replacement of the final separator (indicated cycles x 10)
The first column shows the expired time (actual running
time) since the last maintenance. The second column the
set running time. The maintenance alarm is generated at
90% of the set running time. The values can be freely edited
in each case using an input box. The maintenance is reset
by entering "0" in the expired time.
Tightness & safety valve test
Selection tightness test OR safety valve test, or everything
deselected.
Selection Tightness test/safety valve test are interlocked
against each other. Release from level "SERVICE"
Safety valve test: the compressor is started manually and
only switches off after pressing the 0 button. The final
pressure sensors are switched off and the compressor can
build up pressure against the safety valves without any hin
drance. This procedure can be used to carry out a test.
This operating mode must only be run
under supervision.
If the function "Tightness test" is activated, the compres
sor is started manually and then switches off automatically
after the final pressure has been reached. Bleeding of the
condensate valves is blocked for entire duration, the com
pressor comes to a standstill at the prevailing excess
pressure after switching off automatically. This permits sim
ple density and leak testing.
