Installation
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
217
of 358
7
Instruction:
1 Use the following materials:
m Cable
: LIYCY 6 x (2 x 0.14) + 2 x 0.5 mm², Cu braiding with at least 85 % opt. overlap
m D-
sub connector. 15-pin, male
m Suitab
le encoder plug
2 Conn
ect the cable shield with the cabinet of the circular connector and with the shield
of the D-sub connector

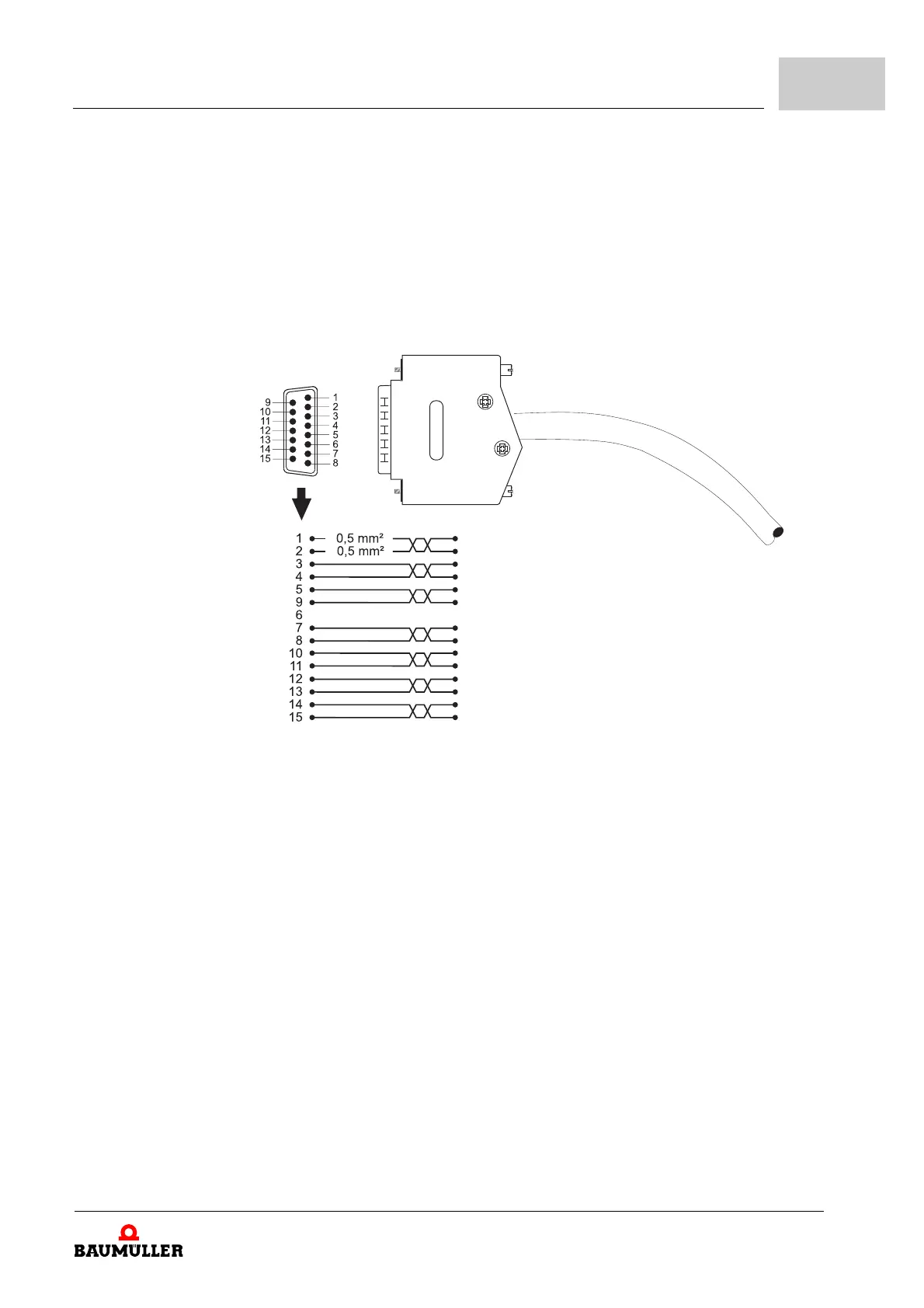

Abbildung 95: Connection cable BM4-F-ENC-08
