Baumuller BM4400 - Dimensions BM4 X5 X; Dimensions BM445 X-S;Z, BM465 X-S;Z

Technical Data
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
39
of 358
3
3.1.5 Dimensions BM4X5X

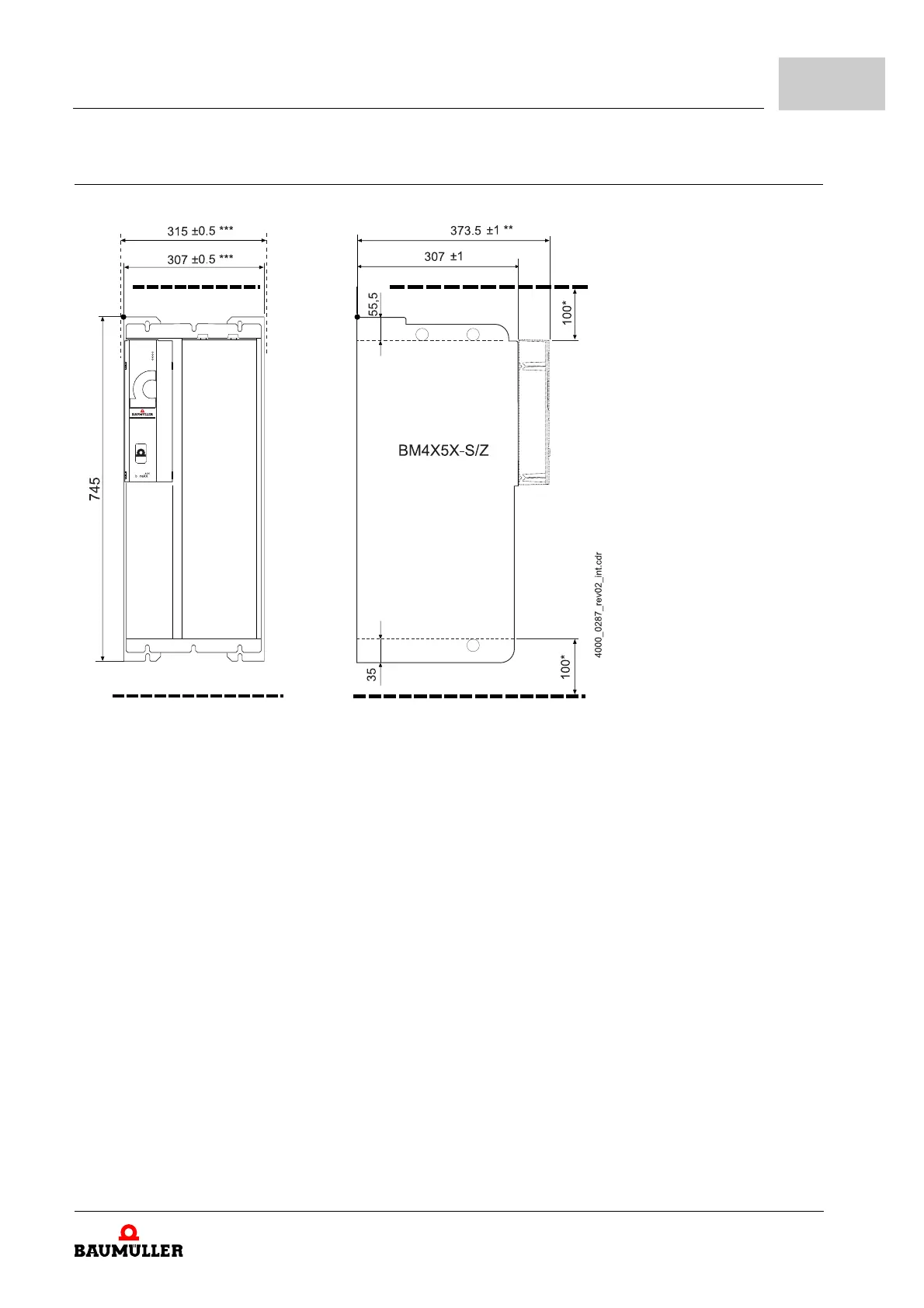

Figure 13: Dimensions BM445X-S/Z, BM465X-S/Z
*: Observe minimum clearance, Observe ZCooling– from page 61.
**: Dimensions specified with design cover. The ES controller is not
equipped with a design cover.
***: Width including screw heads.
