Baumuller BM4400 - Digital Inputs Slot a to E;Position D

Controller terminals
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
220
of 358
7.11

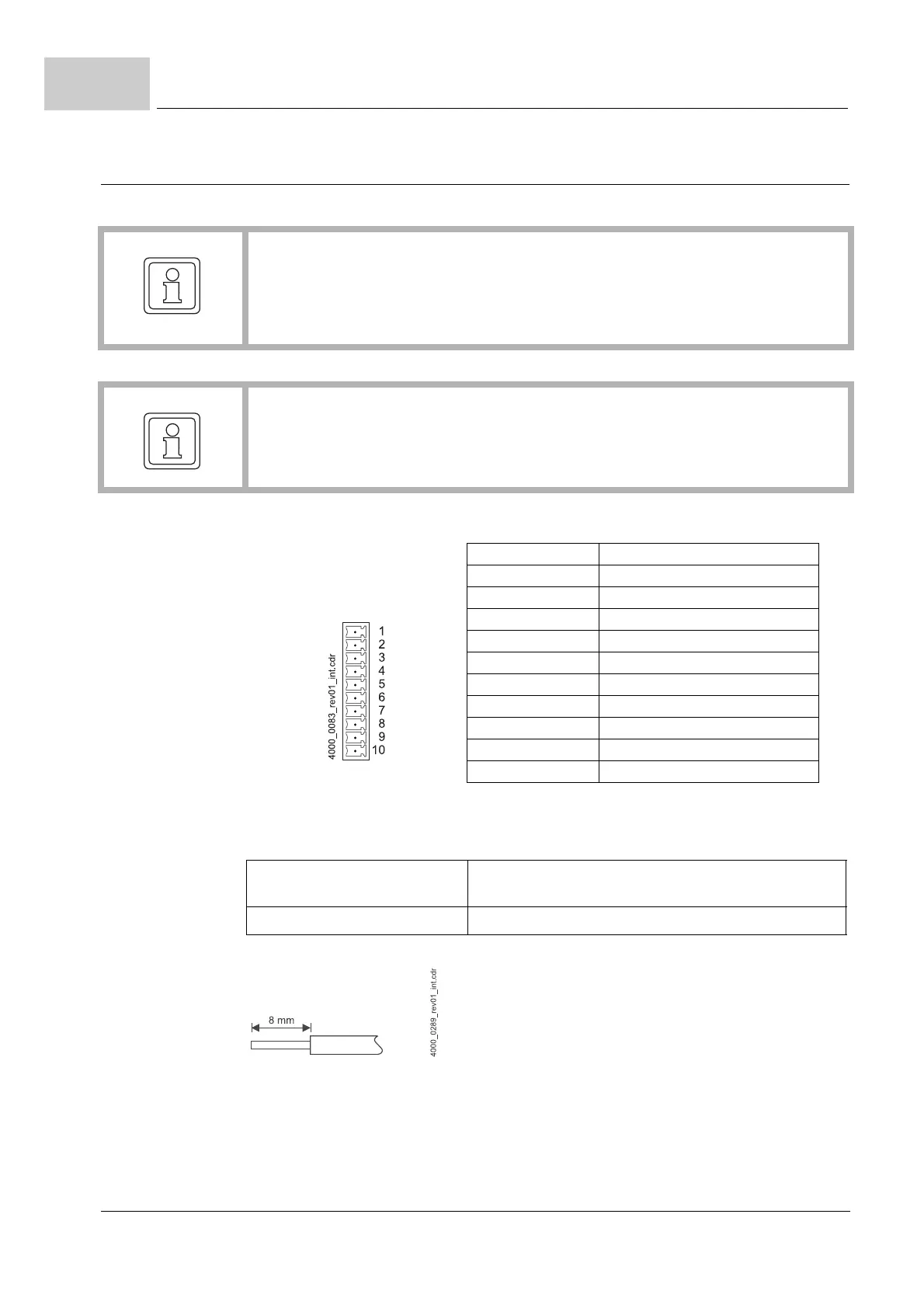

7.11.3 Digital inputs slot A to E/position D
Figure 96: Skinning length
NOTE!
The module DIO/FIO can used only in position D of ES controller.
The module BM4-F-DIO/FIO can be used in all slots of the standard controller, but
preferred should be slot D.
NOTE!
Further information referring to digital inputs/outputs, see manual BM4-F-DIO/FIO
(5.01046).
Pin assignment Pin No. Pin assignment
Multi-pin connector 10-pin
1 IN 1
2 IN 2
3 IN 3
4 IN 4
5 OUT 1
6 OUT 2
7 OUT 3
8 OUT 4
9 +24 V
10 M 24 V
Max. cross-section
of connection
Connection technology
1.5 mm
2
Connector, 10-pin
