Technical data safety relay module
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
352
of 358
C.5
m Installation of the feedback contact with a permanent load

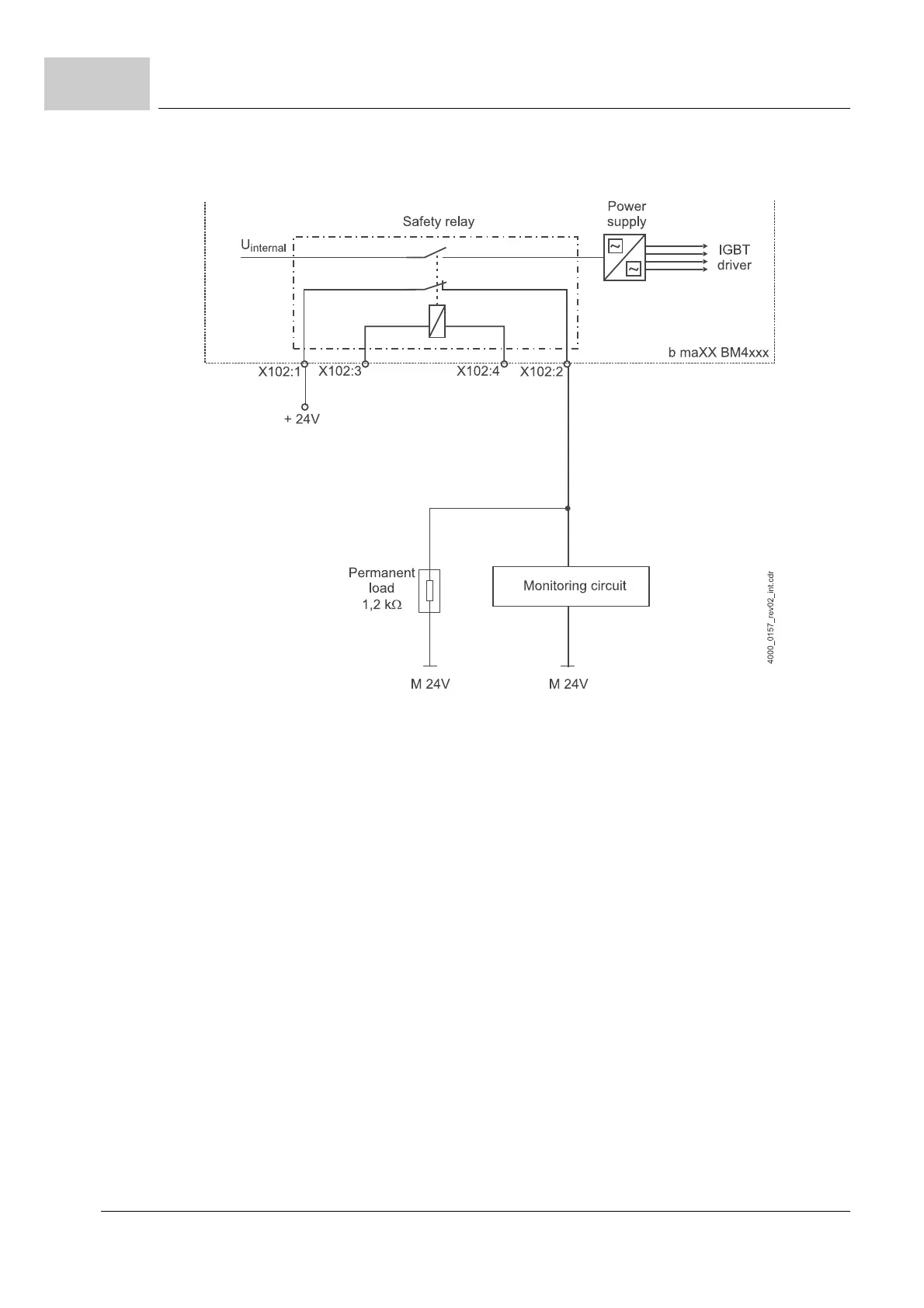

Figure 121: Installation of the feedback contact with permanent load
Continuous load e.g.:
Housing: Phoenix Contact, EMG12-B2
Part No.: 2948306
Transparent cover: Phoenix Contact, BMG12-H 7.5 mm
Part No.: 2947116
Resistor: 1.2 k / 1 W at T
U
= 70 °C
