Technical Data
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
49
of 358
3

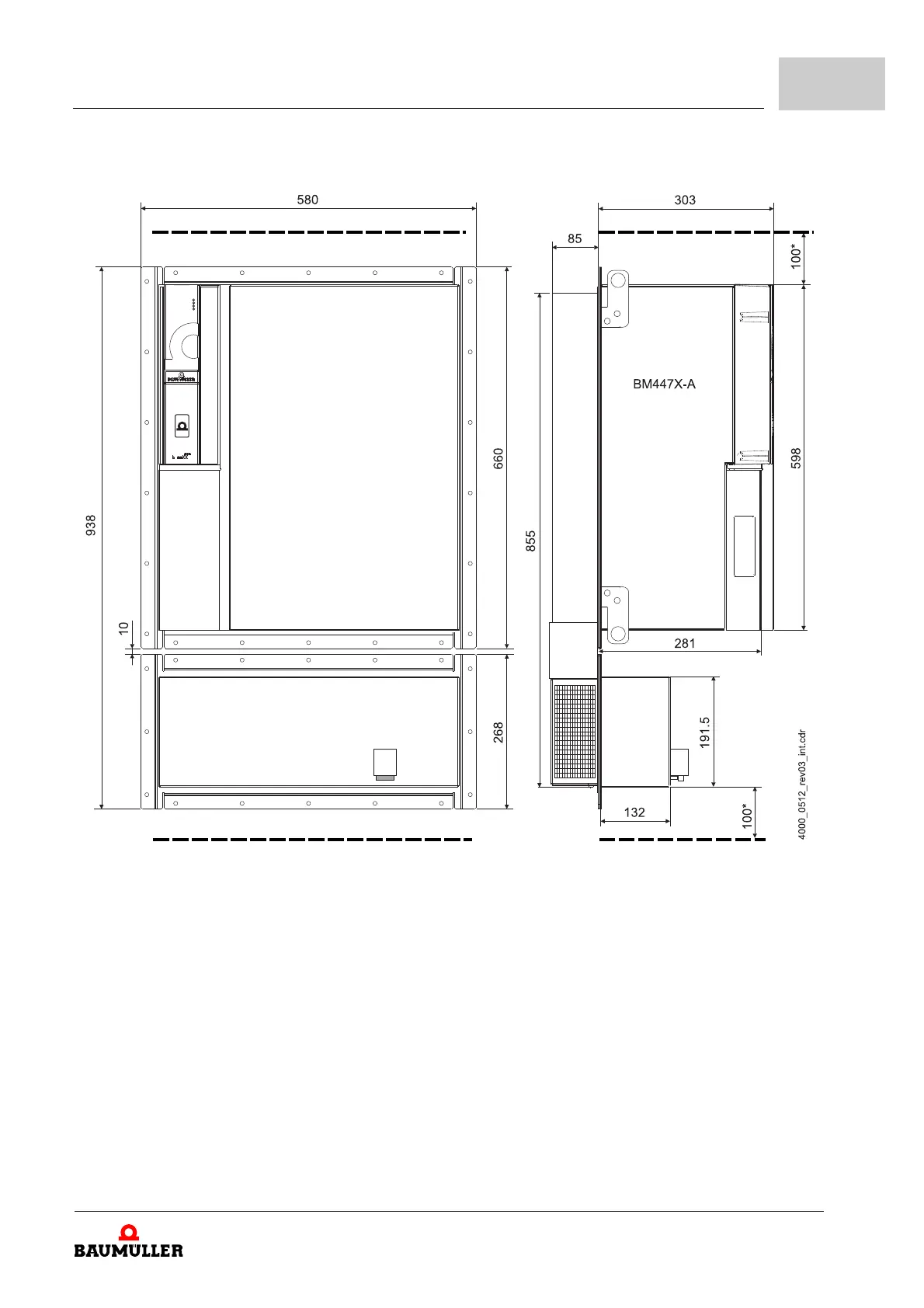

Figure 23: Dimensions BM447X-A
*: Observe minimum clearance, Observe ZCooling– from page 61.
**: Dimensions specified with design cover. The ES controller is not
equipped with a design cover.
To Next Page
