Electrical data basic units
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
68
of 358
3.4
6)
At rated input supply voltage the device supplies the rated- / maximum output currents. At input voltages above the rated supply voltage
the output currents at constant output power have to be reduced, accordingly.
Output current [%]
Derating of the output current
Power voltage [V]
Output current [%]
Derating of the output current
Power voltage [V]
Output current [%]
Derating of the output current
Power voltage [V]
Output current [%]
Derating of the output current
Power voltage [V]
Output current [%]
Derating of the output current
Power voltage [V]

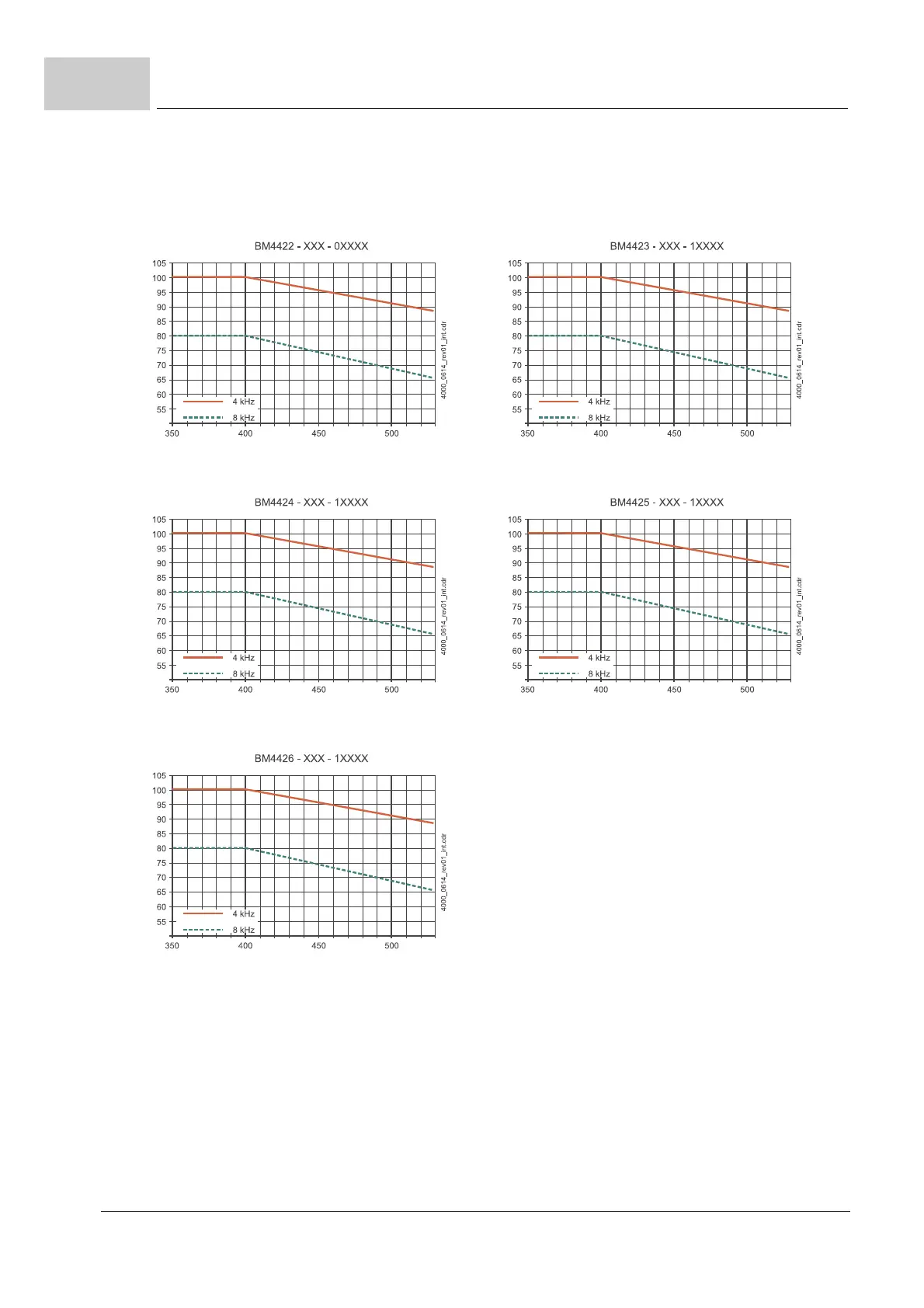

Figure 33: Derating the output current BM442X universal units
7)
The input current must be reduced between 40 °C and 55 °C, see correction factors at changed operating conditions ZEnvironmental
temperature– on pa
ge 57.
8)
The peak output current is supplied for the maximum peak current period for the motor at the first acceleration (cold power unit). The in
fact possible overload time is dependent on the preload of the device and on the heat sink temperature, it is determined by the overload
monitoring of the device.
