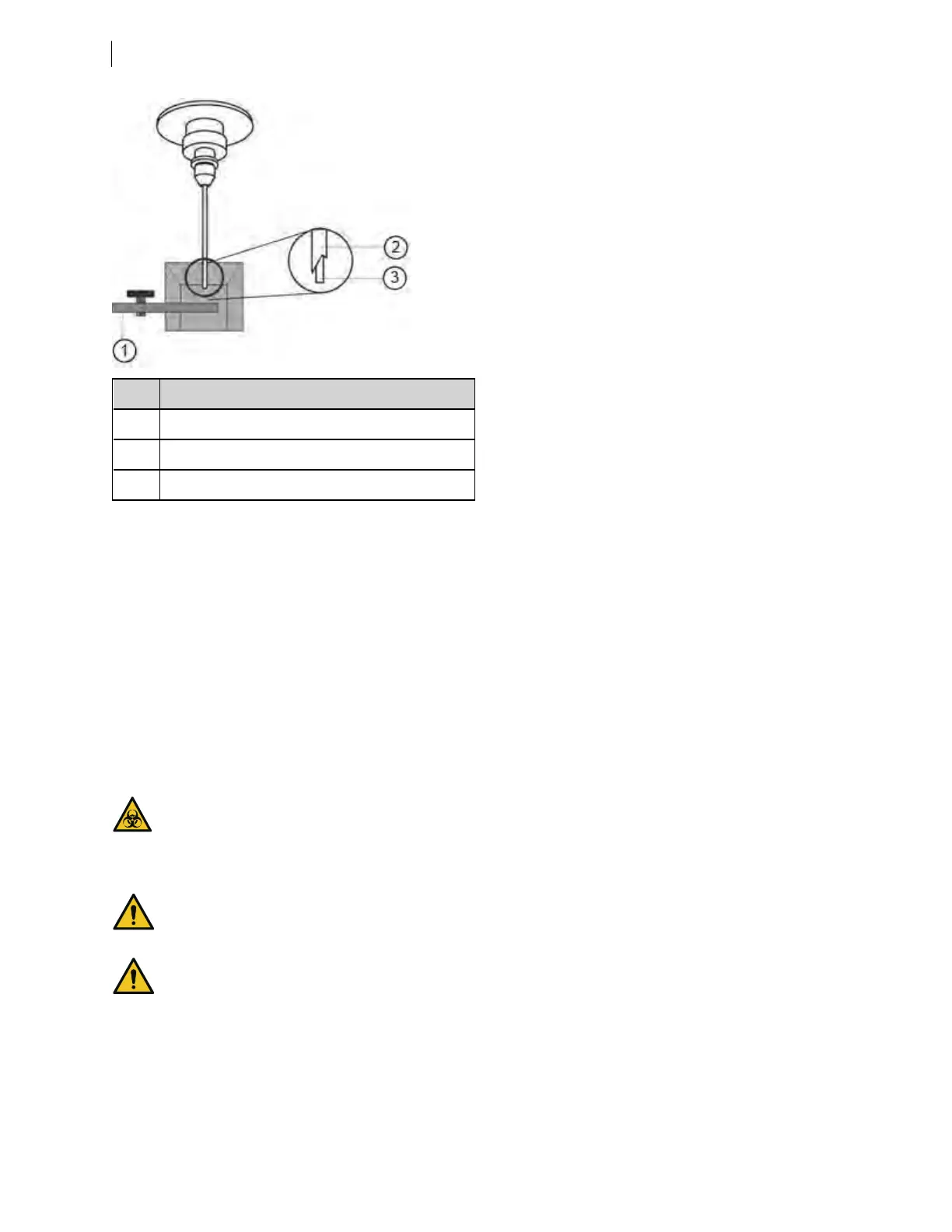

Key Description
1 Tube support arm
2 Outer sleeve
3 Sample injection tube
Sample injection tube
Stainless steel tube that carries sample from the sample tube to the flow cell. This tube is covered with an outer
sleeve that serves as part of the droplet containment system.
Tube support arm
Arm that supports the sample tube and activates the droplet containment system vacuum. The vacuum is on
when the arm is positioned to the side and off when the arm is centered.
Note: If a sample tube is left on the SIP with the tube support arm to the side (vacuum on), the sample will be
aspirated into the waste container.
Cautions when using the HTS option
When using the flow cytometers with the HTS, ensure that the HTS is completely pushed into the operating
position before removing the droplet containment module (DCM) sleeve or disconnecting the sample coupler
from the SIP. This is to avoid accidental leakage of potentially biohazardous liquids directly onto the instrument.
With the HTS in the proper location, the containment dish with padding is directly below the SIP.
If you are using the HTS option, always slide the HTS mount slowly to prevent sample cross-contamination when
the wells are full. Never move the HTS when it is in operation.
Do not lean on or put any weight on the HTS as it could damage the instrument.
