11
6-847718-00 Rev. B00
Model Number Scheme:
6-TA2M _ _ _
32 or 64
Designates number
of signals
R or blank
R = With Relays
Master alarm panels include the following
modular components:
• Annunciator module with VFD
• One multiplexer module
• One LED module
• One or two breakout boards
• One or two relay boards (Optional)
Master alarm panels can monitor 32 or 64
switched inputs.
Inputs can be assigned to any one of 10
gas service indicators.
2 line by 20 character vacuum fluorescent
display shows signal names.
Optional dry contact relays are available
for all signals.
Master Alarms
Alarm Configurations (Cont.)
Example: P/N 6-TA2M32R
Introduction

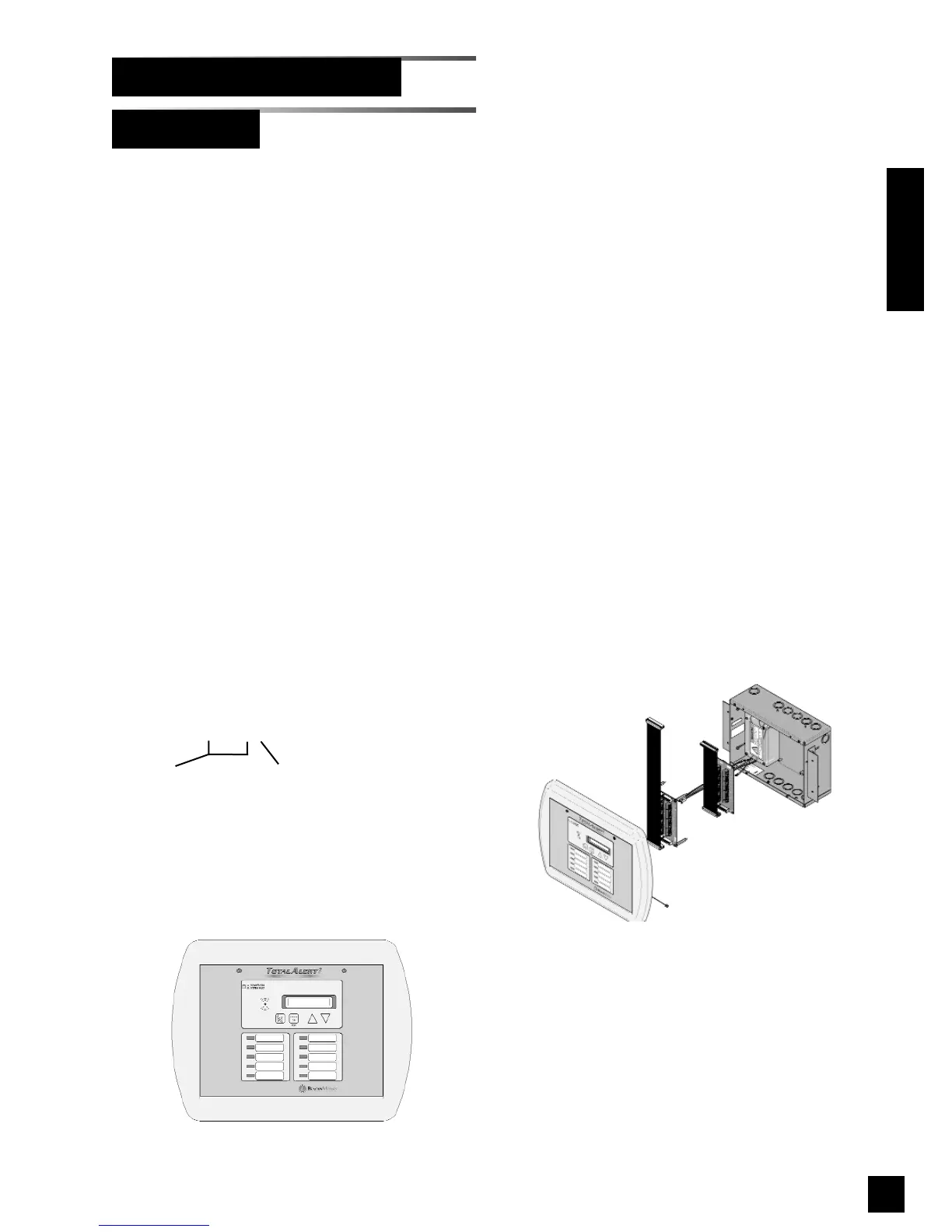

Figure 4: Master Alarm
Figure 3: Master Alarm Panel
