6-847718-00 Rev. B00

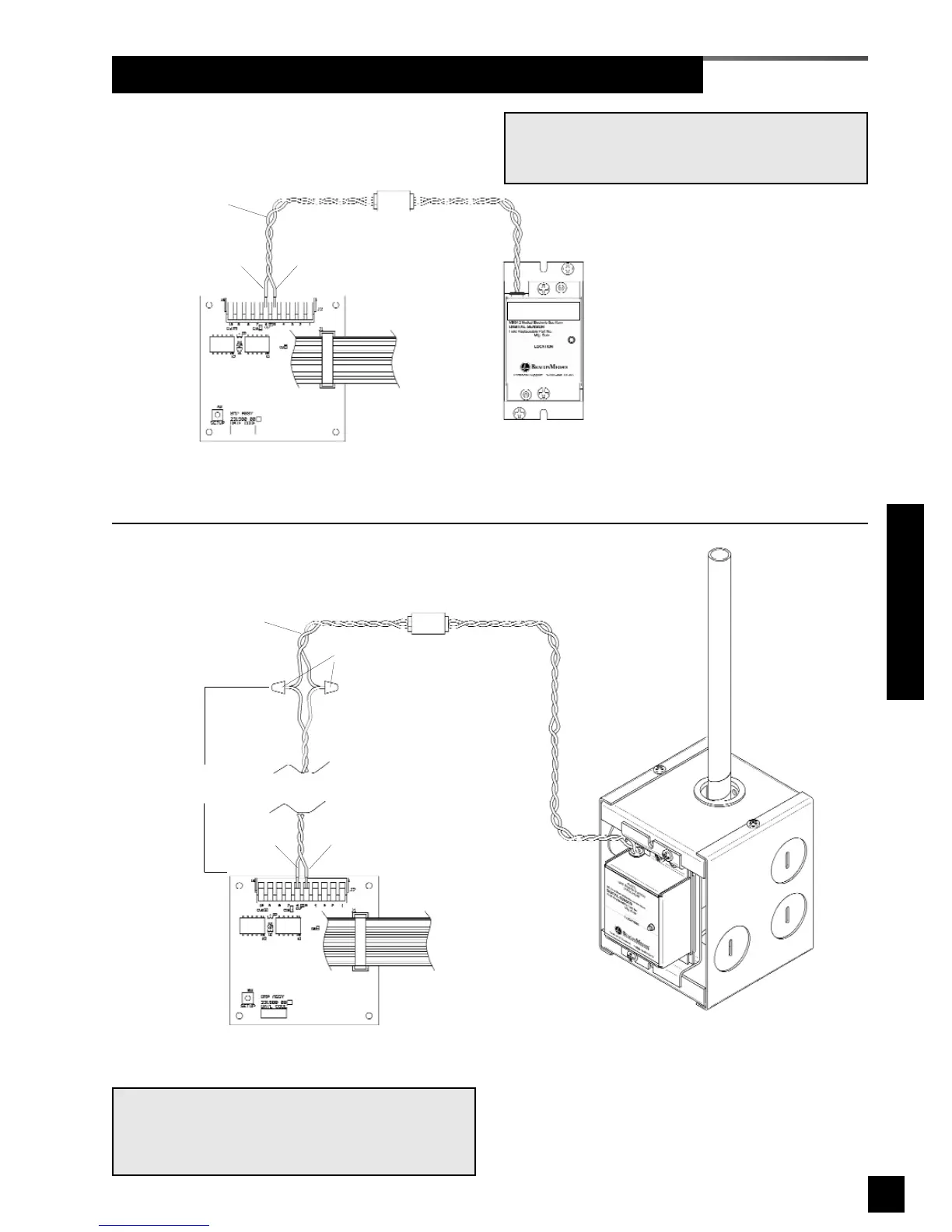

Wiring Schematic 2: Sensor Module to Digital Display Module
Digital Display Module
Digital Display Module
Remote sensor mounting box
(remote from alarm panel)
Local Sensor
(inside alarm panel back box)
2-pin polarized connector
2-pin polarized connector
20 wire
ribbon cable
to adjacent
module
LOCAL SENSOR
REMOTE SENSOR
20 wire
ribbon cable
to adjacent
module
* Sensor pigtail
Sensor pigtail
(provided)
Wire nuts
Field wiring
(by others)
* NOTE:
Sensor pigtails for local sensors are factory con-
nected to digital display module.
Pin 5 - red (+)
Pin 6 - black (-)
Pin 5 (+)
Pin 6 (-)
NOTE:
Field wiring cable shields must be grounded at
only one end, inside alarm panel back box. Refer
to page 39 for details.
GAS ID
Wiring Schematics
