Features:
• User interface pushbuttons for alarm panel
TEST function, audible alarm MUTE
and set-up increase ! and decrease ".
• Green alarm panel POWER ON indicator.
• Red flashing alarm system fault indicator.
• Red audible alarm mute indicator.
• Audible alarm
• General fault relay that activates on any
alarm panel fault condition.
• Auxiliary relay that activates when the
audible alarm is sounding.
• Alphanumeric two line by 20 character
display (Master/Combo Alarms only).
• Embedded web server with web pages to
view and set up alarm.
• 10Base-T Ethernet Jack.
• Ethernet LINK, TX and RX indicators.
• Heartbeat indicator.
• Event log.
(Master/Combo Alarms only)
Features:
• Monitors up to 64 normally
closed dry-contact switch
signals.
• Five gas service indicators
for normal (green) or abnormal (red)
conditions.
• Signal inputs can be programmed to any of
the gas service indicators.
• Adjustable brightness of LED indicators.
• Heartbeat indicator.
(Master/Combo Alarms only)
Features:
• Adds an additional five
gas service indicators to a
Multiplexer Module.
(Master/Combo Alarms only)
Features:
• Screw terminals for 32
dry-contact switch
signals.
• Terminals accept 14 to
22 AWG wires.
• Connector for optional
relay board.

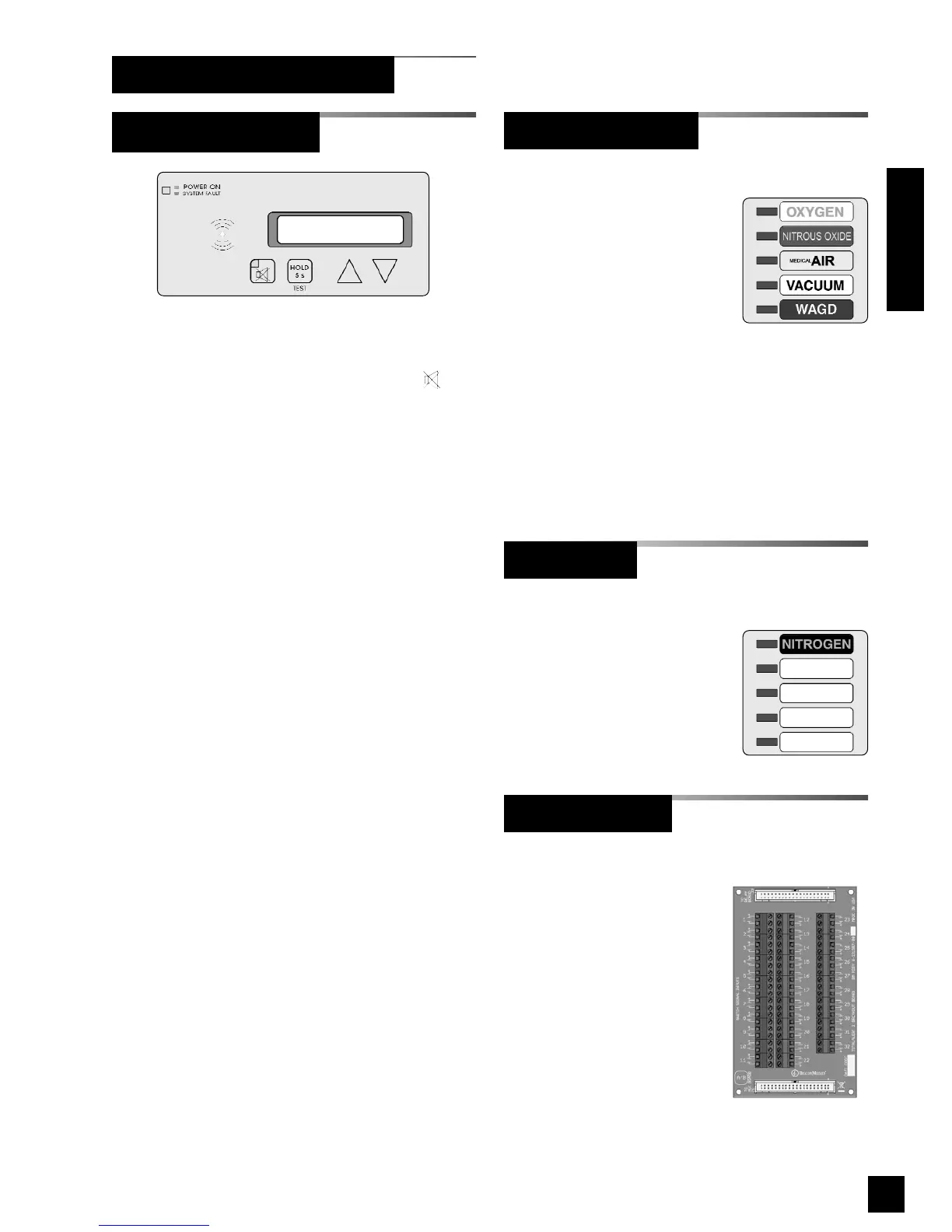

Introduction
Breakout Board
LED Module
Multiplexer Module
Annunciator Module
Alarm Modular Components
