6-847718-00 Rev. B00

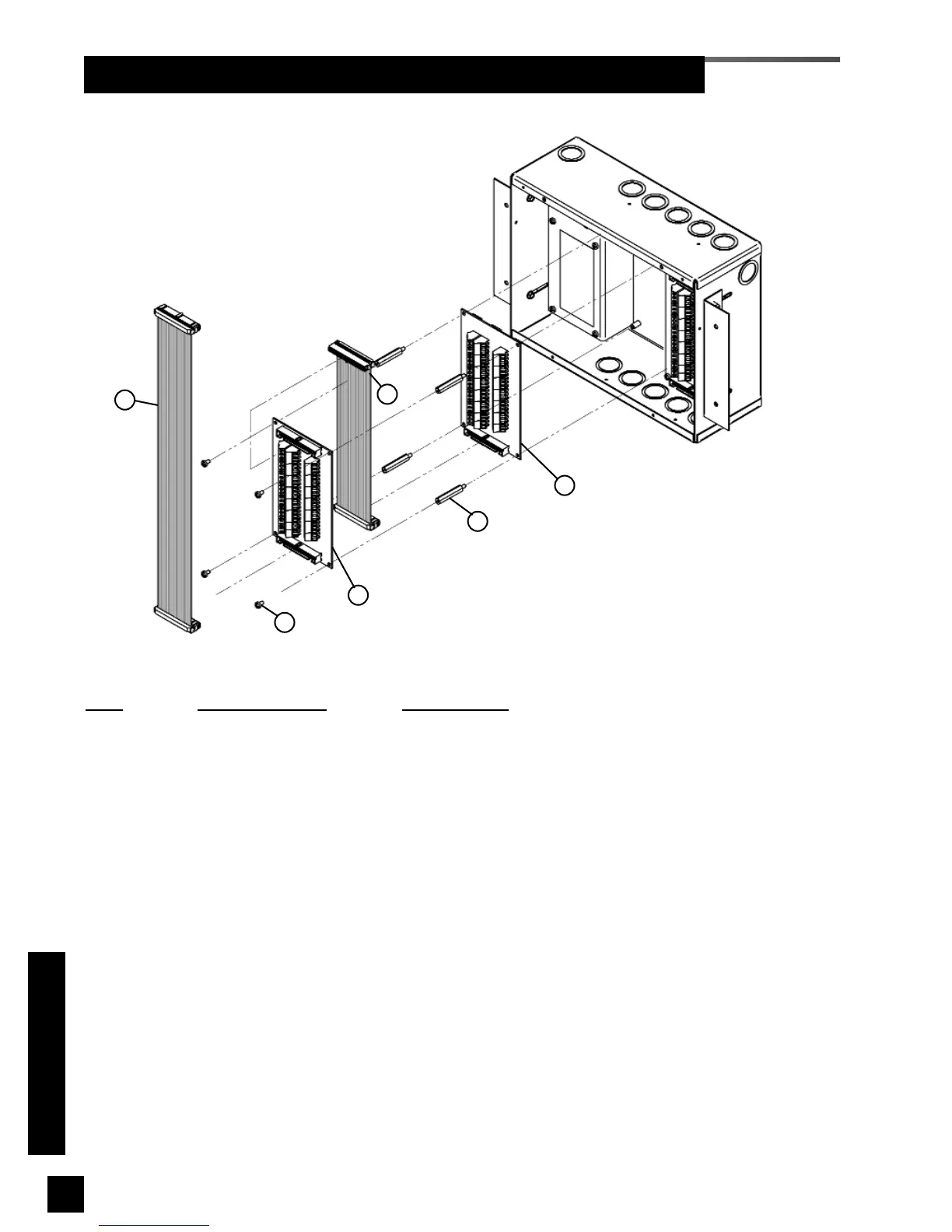

Breakout and Relay Board Components - Master / Combo Alarm
ITEM MODEL NUMBER DESCRIPTION
1 6-868172-00 Ribbon Cable, Multiplexer, 40 Conductor
2 6-811608-00 Screw - #6-32 x 1/4”, Pan Head
3 6-231987-00 Circuit Board - Breakout
4 6-868173-00 Ribbon Cable, Relay, 40 Conductor
5 6-829628-00 Standoff
6 6-231988-00 Circuit Board - Relay
1
2
4
5
6
3
Replacement Parts
To Next Page
