BeaconMedaes TotalAlert 2 - Wiring Schematic 1: Power Supply

46
6-847718-00 Rev. B00

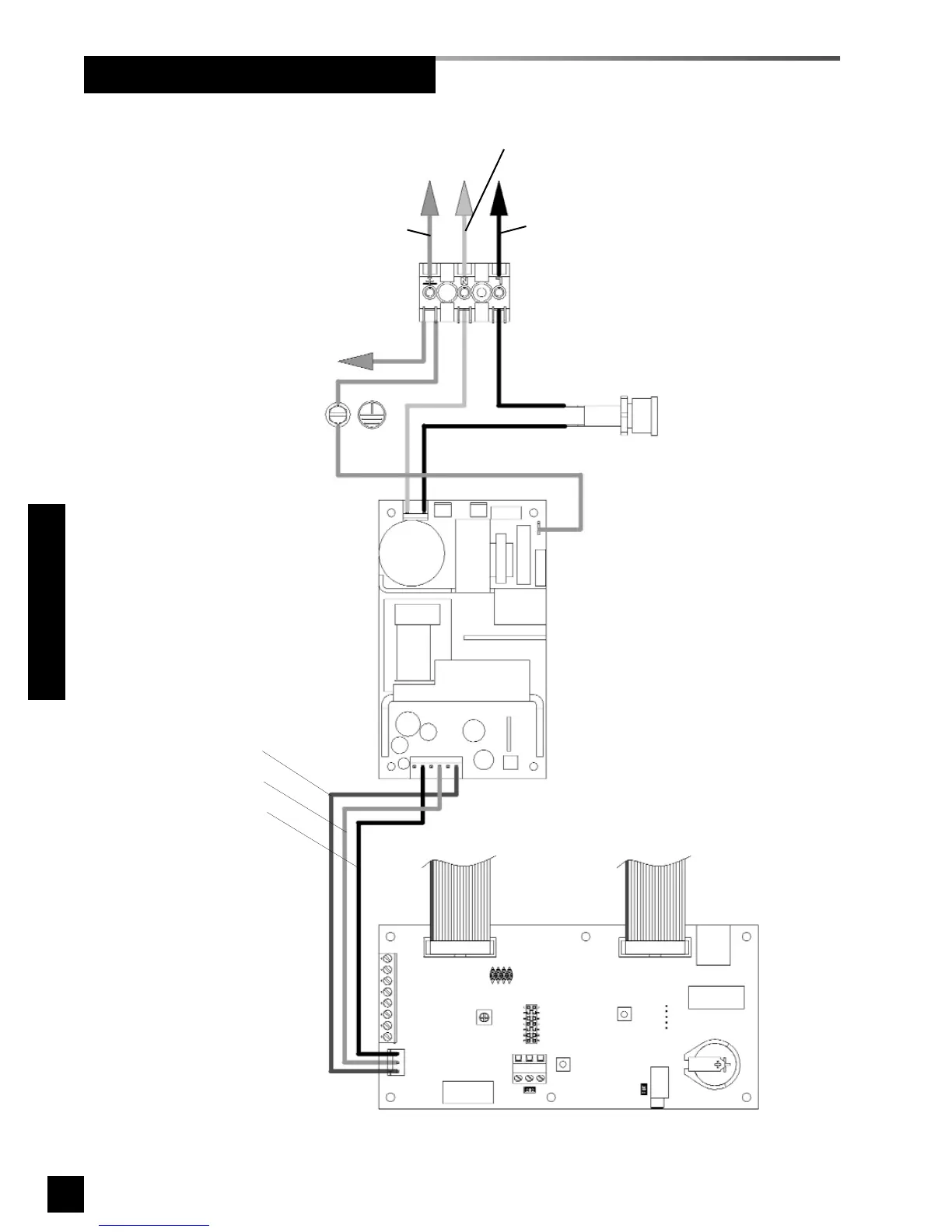

Wiring Schematic 1: Power Supply
Annunciator module
20-wire ribbon
cable to modules
Power supply
Fuse holder
Ground (green)
Line (black)
Neutral (white)
3-wire power
supply harness
120 VAC mains power connections from life safety branch of the emergency electrical system
Ground screw
Red
Orange
Black
20-wire ribbon
cable to modules
Terminal block
Ground wire To front panel
Wiring Schematics
