Replacement Parts

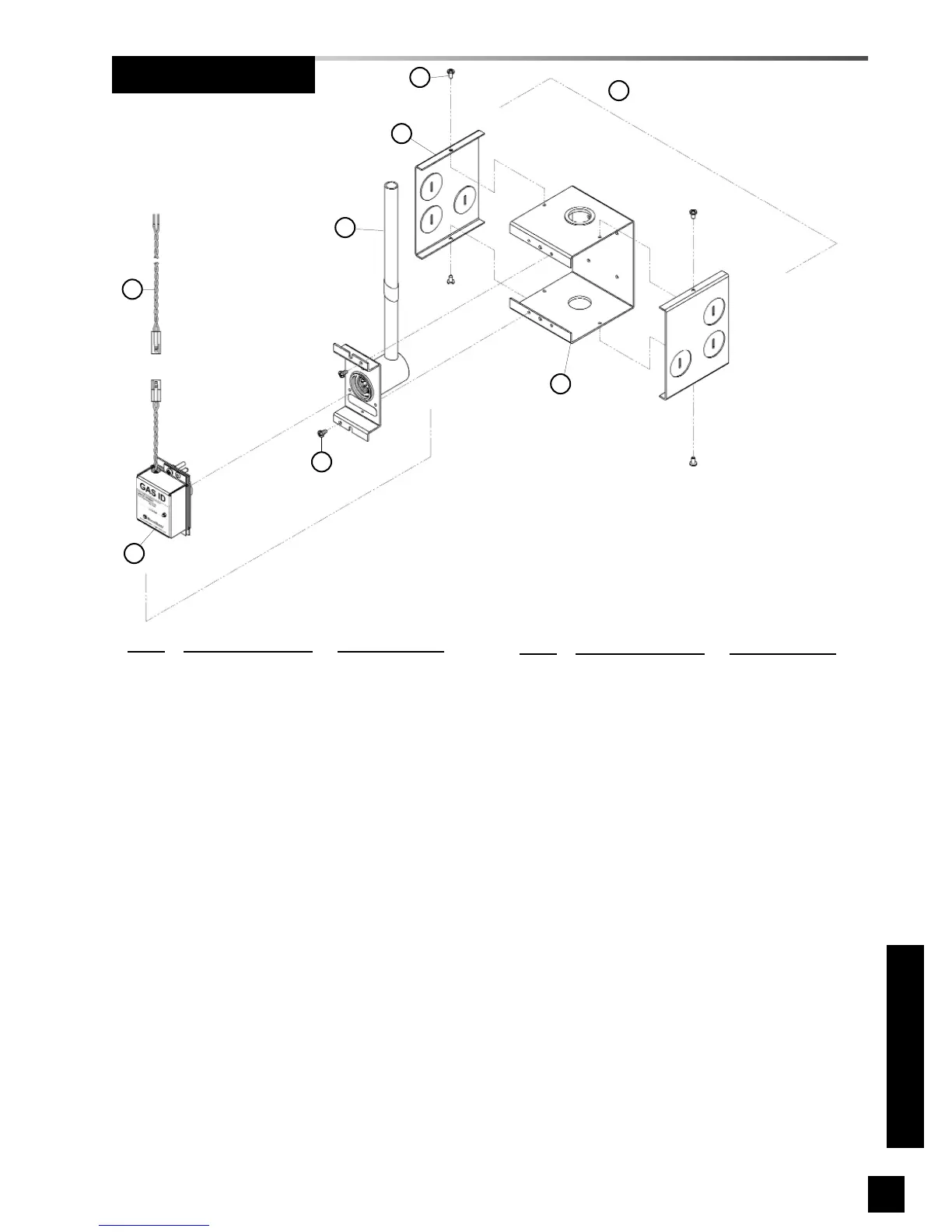

Sensor Components
Applicable to both local and
remote sensor mounting
Remote sensor mounting only
1
2
7
1
6
4
5
ITEM
MODEL NUMBER DESCRIPTION
1 6-814669-00 Screw - #6-20 x 1/4”,
Pan Head, Self-Tap
2 6-425428-00 End Cap
3 Sensor Mounting Assy.
(incl. items 1,2,6,& 7
- 6-129340-10 Oxygen
- 6-129340-11 Nitrous Oxide
- 6-129340-12 Medical Air
- 6-129340-13 Vacuum
- 6-129340-14 Nitrogen
- 6-129340-16 Air (ISO)
- 6-129340-17 Vacuum (ISO)
- 6-129340-18 Instrument Air
- 6-129340-19 WAGD
- 6-129340-20 Carbon Dioxide
- 6-129340-21 CO2/O2
- 6-129340-22 O2/CO2
- 6-129340-23 He/O2
- 6-129340-24 O2/He
- 6-129340-25 Helium
- 6-129340-26 Lab Air
- 6-129340-27 Lab Vacuum
- 6-129340-28 O2 (100 PSI)
- 6-129340-29 Air (100 PSI)
- 6-129340-30 CO2 (100 PSI)
- 6-129340-31 Argon
3
ITEM MODEL NUMBER DESCRIPTION
4 6-231935-00 Sensor Pigtail
5 Digital Sensor
- 6-232460-00 Oxygen
- 6-232461-00 Nitrous Oxide
- 6-232462-00 Medical Air
- 6-232463-00 Vacuum
- 6-232464-00 Nitrogen
- 6-232465-00 Helium
- 6-232466-00 Lab Air
- 6-232467-00 Lab Vacuum
- 6-232468-00 Instrument Air
- 6-232469-00 WAGD
- 6-232470-00 Carbon Dioxide
- 6-232471-00 CO2/O2
- 6-232472-00 O2/CO2
- 6-232473-00 He/O2
- 6-232474-00 O2/He
- 6-232476-00 Air (ISO)
- 6-232477-00 Vacuum (ISO)
- 6-232478-00 Oxygen (100PSI)
- 6-232479-00 Air (100 PSI)
- 6-232480-00 CO2 (100 PSI)
- 6-232481-00 Argon
6 6-425555-00 Mounting Box
