Introduction
Sensor modules are
mounted inside alarm
panel box
Copper tubes connect to
pressure/vacuum
pipelines
Area alarm panels include the following modular
components:
• Annunciator module
• 4 or 8 digital display, multi-signal or blank
modules
• Sensors for all digital display modules
(except 6-TA2AN series)
Area alarm panels may consist of any
combination of digital display modules, multi-
signal modules or blank modules.
If alarm panel is configured with digital display
modules, pressure/vacuum sensors will be
included for connection to pressure / vacuum
pipeline (except 6-TA2AN series).
Sensors may be located inside alarm panel
back box (local sensors) or outside alarm panel
back box (remote sensors).
Local sensors must be connected to pressure /
vacuum pipelines via copper tubing (Figure 5).
Remote sensor may be mounted near pressure
/ vacuum pipeline and then wired to alarm panel
(Figure 6).
Two alarm panel sizes support either 4 or 8
alarm modules.
Area Alarms
O
OXYGEN
D
OXYGEN - 100 PSI
X
NITROUS OXIDE
A
MEDICAL AIR
F
MEDICAL AIR - 100 PSI
5
AIR (ISO)
7
LABORATORY AIR
2
O2-CO2
4
O2-He
C
CARBON DIOXIDE
G
CARBON DIOXIDE - 100 PSI
1
CO2-O2
3
He-O2
H
HELIUM
V
VACUUM
6
VACUUM (ISO)
8
LABORATORY VAC
W
WAGD
N
NITROGEN
9
INSTRUMENT AIR
J
ARGON
DIGITAL DISPLAY MODULES
M
MULTI-SIGNAL MODULE
R
MULTI-SIGNAL MODULE W/ RELAYS
B
BLANK
Alarm Configurations (Cont.)
Model Number Scheme:
12345678
6-TA2A _ - _ _ _ _ _ _ _ _
L = Local Sensors
R = Remote Sensors
N = No Sensors
Position within alarm panel
(Figures 7 and 8)
Designates type of alarm
panel component from table

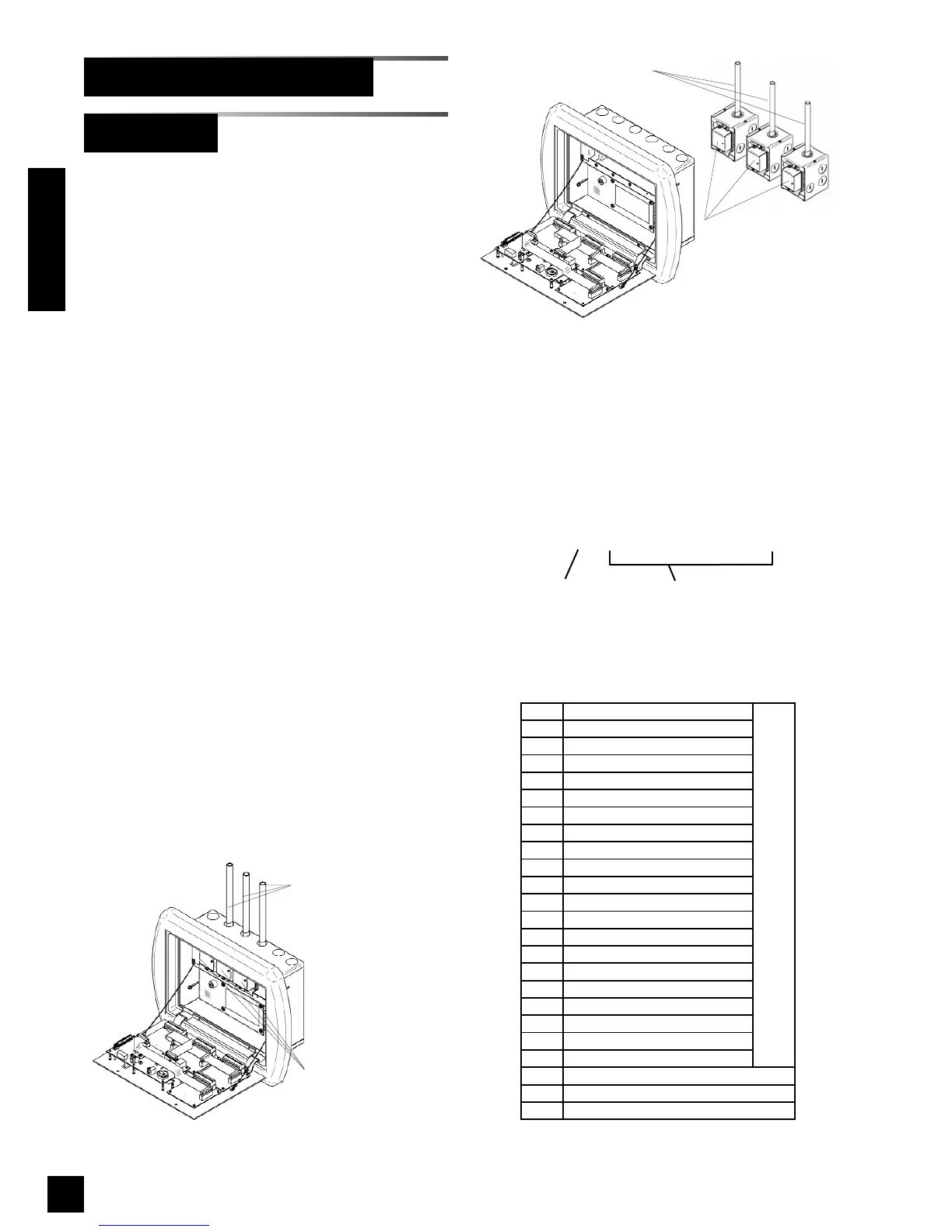

Figure 5: Local Sensors
Figure 6: Remote Sensors
Sensors have separate
mounting boxes for
mounting near
pressure/vacuum
pipeline and then must
be wired to alarm panel
Copper tubes connect to
pressure/vacuum pipelines
