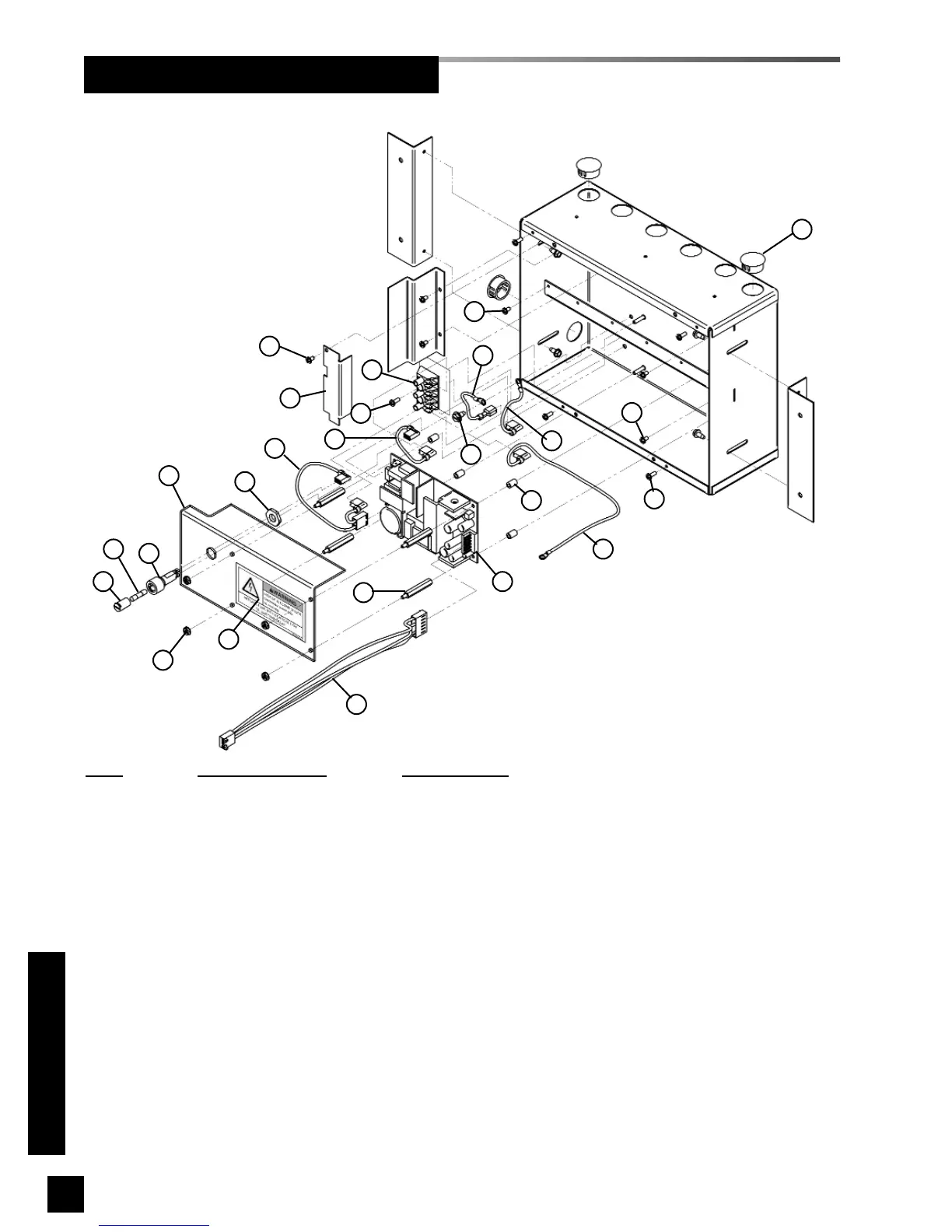

Back Box Components - Area Alarm
ITEM
MODEL NUMBER DESCRIPTION
1 6-435989-00 Label, Warning
2 6-827530-00 Nut, Keps, #6-32
3 Included in Item 5 Cap - Fuse Holder
4 6-865546-00 Fuse - 1.0 Amp, 250VAC, Time Delay
5 6-865500-00 Fuse Holder
6 6-616506-00 Shield, Protective, Power Supply
7 Included in Item 5 Nut - Fuse Holder
8 6-231942-00 Wire Harness - AC Input
9 6-425458-00 Shield, Protective, Front
10 6-814669-00 Screw - #6-20 x 1/4”, Pan Head, Self-Tapping
11 6-231944-00 Wire Harness - Terminal Block to Fuse
12 6-814653-00 Screw - #6-32 x 3/8”, Pan Head, Self-Tapping
13 205523 Terminal Block
14 6-231938-00 Wire Harness - Ground
15 6-814008-00 Screw, Grounding
16 6-231943-00 Wire Harness - Ground (4”)
17 6-231943-01 Wire Harness - Ground (15”)
18 6-831904-00 Spacer
19 6-867540-00 Power Supply Assembly
20 6-829628-00 Standoff
21 6-231936-01 Wire Harness - DC Output (16-1/2”)
22 6-836836-00 Plug, Finishing
2
4
3
5
6
1
21
8
20
19
18
17
12
10
9
13
22
16
14
12
15
7
10
10
11
