Installation Procedures
1. Remove sensor module from shipping
carton. Each sensor module is
shipped with a wiring pigtail that has a
two-pin polarized connector.
2. Wire nut pigtail to field installed wiring
inside sensor mounting box. Note
polarity of wiring and corresponding
field wiring color or number for later.
3. Join polarized connector in sensor
mounting box to mating connector on
sensor module (Figure 34).
4. Insert sensor into valve opening in
sensor rough-in. An indexing pin
provides for proper orientation and
prevents gas service cross-
connection. Push sensor all the way
in and secure with (2) #6-32 x 1-1/4”
screws.
5. Tuck excess wiring into open space
behind sensor.
NOTE:
Remove blue protective netting from sensor
connector.

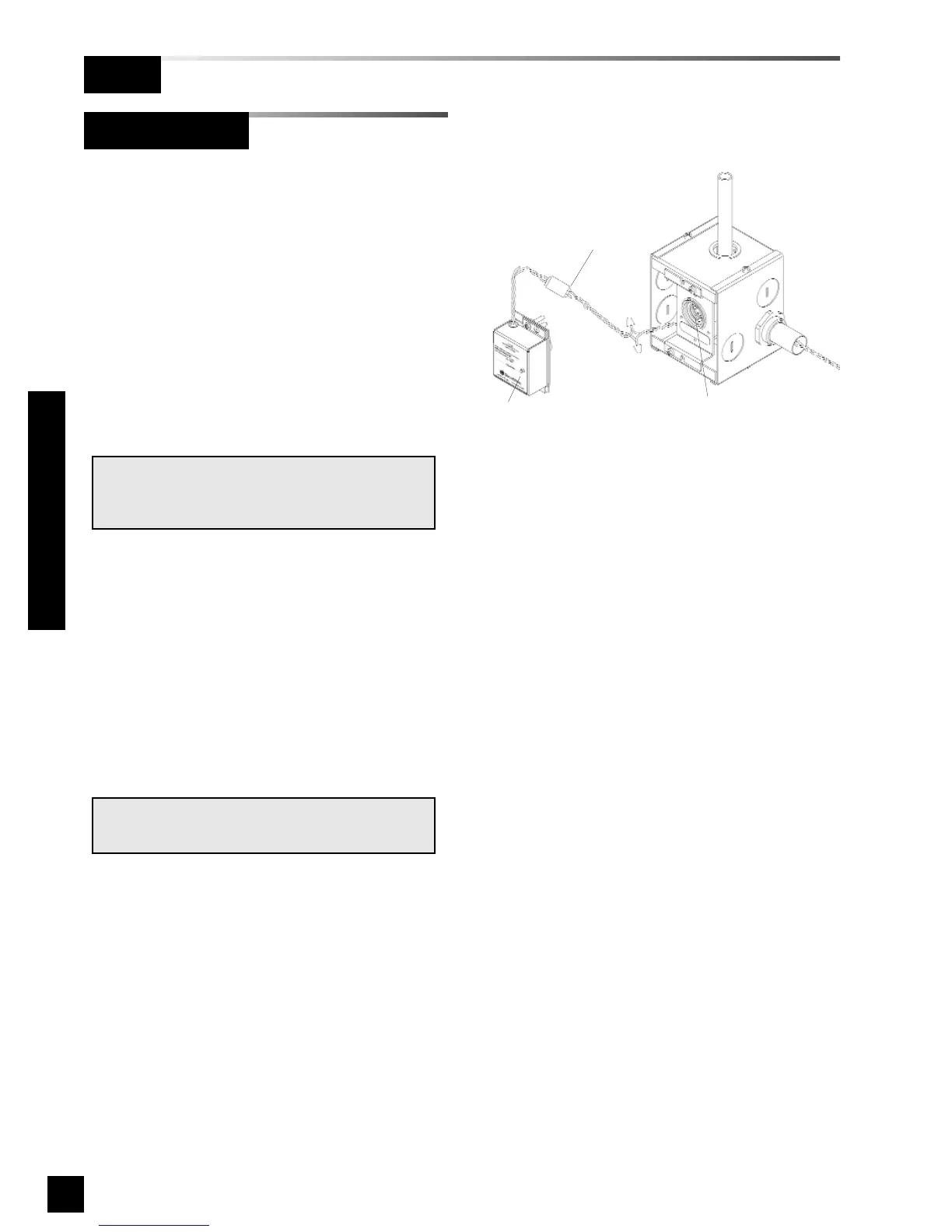

Figure 34: Remote Sensor Module Connection
Remote Sensor
Valve opening
Sensor
Polarized
connector
Finish
NOTE:
Do not ground shield drain wire at sensor.
