54
6-847718-00 Rev. B00

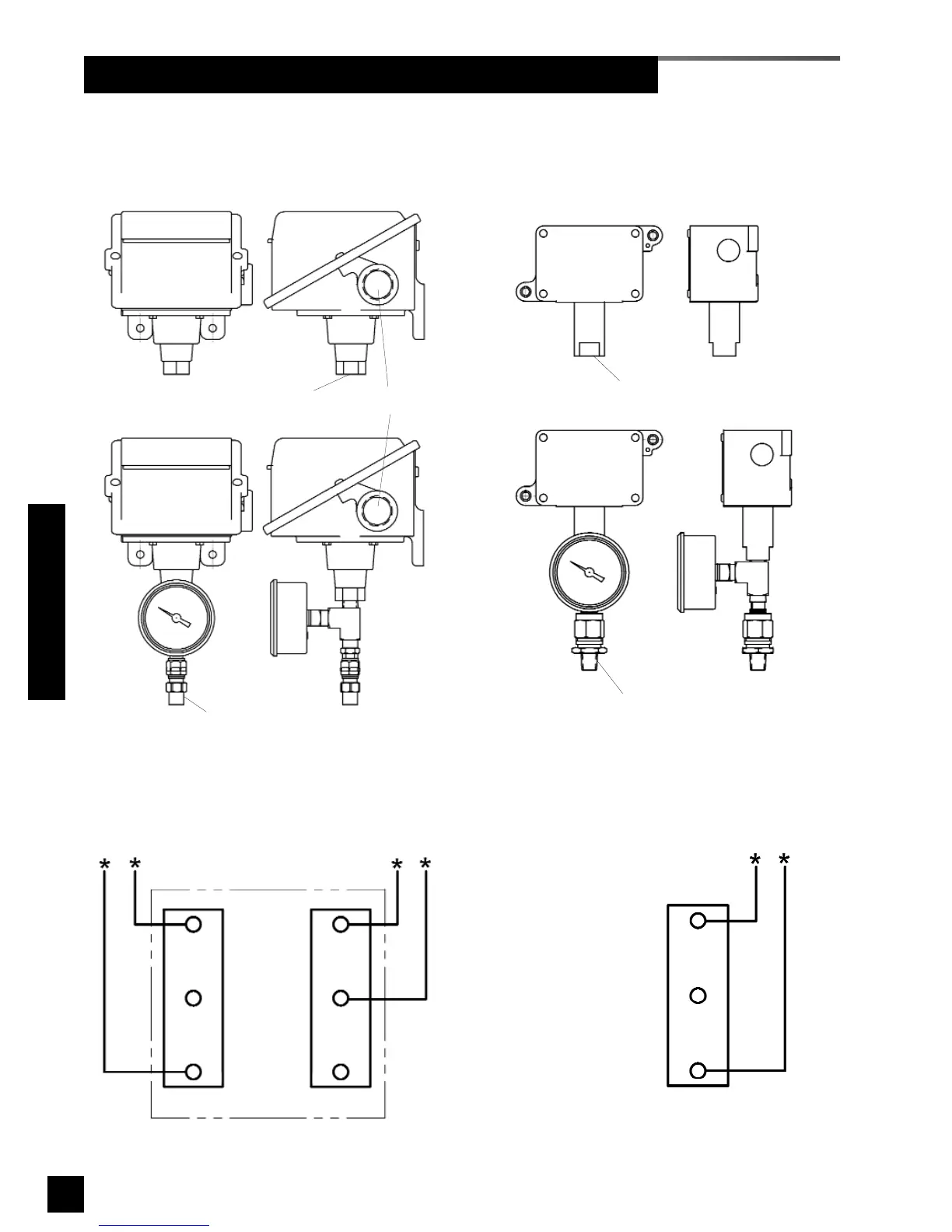

Wiring Schematic 10: Remote Pressure / Vacuum Switches
P/N 6-129030-XX thru 6-129032-XX Series
Pressure Switches
P/N 6-129033-XX Series
Vacuum Switches
* Terminals to be
used for TotalAlert 2
and other systems
sensing fault on
electrical contacts
opening.
Typical Wiring Schematic for above
Pressure Switches
Typical Wiring Schematic for above
Vacuum Switches
1/4” NPT Female
3/4” Female Conduit
Connection
1/4” NPT Female
1/4” NPT Male x DISS Valve
(Vacuum or WAGD)
1/4” NPT Male x DISS Valve
(Gas Specific)
HIGH
LOW LOW
N/C
N/O
C C
N/O
N/C
C
N/O
N/C
