BeaconMedaes TotalAlert 2 - Pull Wire (Cont.); Wire Routing

28
6-847718-00 Rev. B00
Holes for entrance of
low voltage field wiring
Two choices of
conduit holes for
entrance of AC
mains power
to
p
e
n
try
side entry
For top entry, remove
shield for access.
Reinstall shield after
connection is made

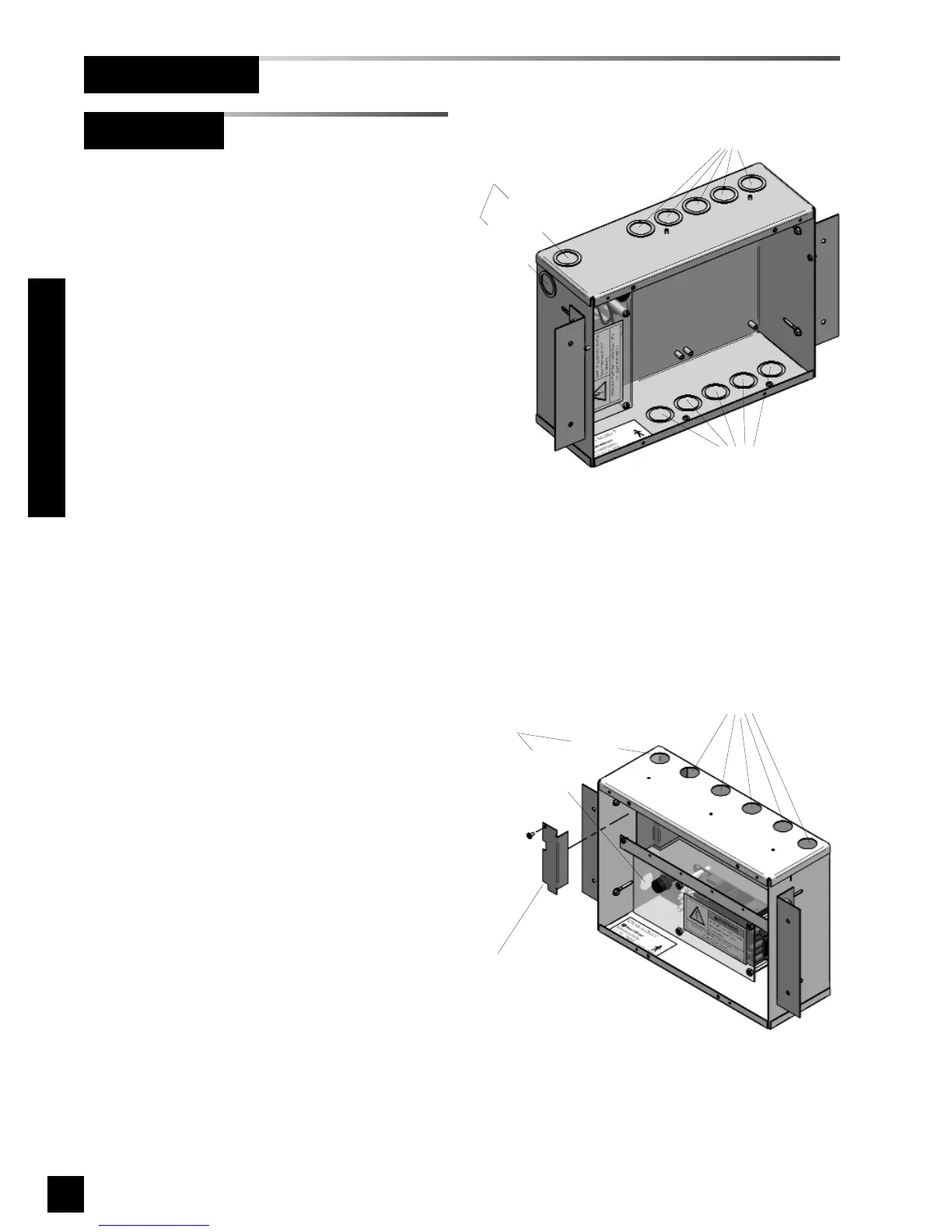

Figure 22: Wire Routing for Area Alarms
Figure 21: Wire Routing for Master / Combo Alarms
Two holes or knockouts are provided for
entrance of AC mains power. One hole
on left side and one hole on top left of
alarm panel back box.
NO OTHER HOLES SHOULD BE
PUNCHED OR USED.
Several additional holes or knockouts are
provided on right side of top panel and
bottom for entrance of low voltage field
wiring(Figures 21 and 22).
Two choices of
conduit knockouts
for entrance of AC
mains power
top entry
side entry
Knockouts for entrance of
low voltage field wiring
Knockouts for entrance of
low voltage field wiring
Wire Routing
Pull Wire (Cont.)
Installation Procedures
