116 en | Secure/Communication Card Access Easy Controller

Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

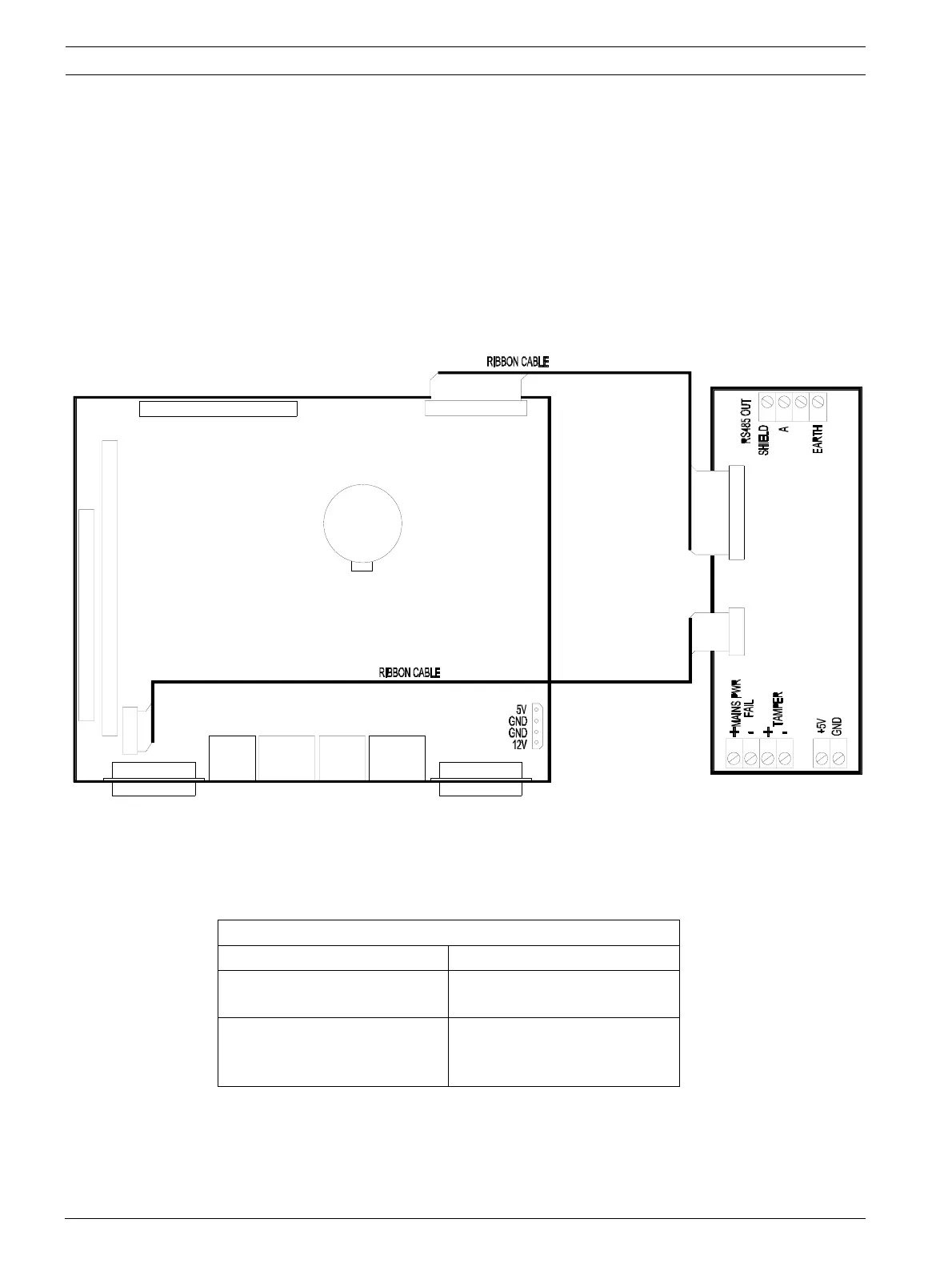

Internal wiring diagram between CPU board(With USB port) and Secure Com Card

CN2

CN1

PIN 1

(P/N: AEC MOD COM)

SECURE COMM. CARD

4321

1234 21

LANLAN

PIN 1

COM 1

USB

VGA

PORT 1 PS2 PORT 2

CPU BOARD

(P/N: AEC MOD CPU)

PIN 1

Specification for Secure/Communication Card

Input Voltage +5VDC (4.75V to 5.25V)

Current Consumption 36.5mA @ 5VDC (Peak)

20.3mA @ 5VDC (Idle)

Interface Serial Port

Parallel Port

RS485 Por

Table of Contents3
Before You Begin7
Overview of Access Easy Controller8
Basic Access Easy Controller Configuration9
System Layout11
Single Controller System12
Two Controller Systems13
Three Controller Systems14
Controller Specifications15
Is Access Easy Controller the Correct Choice for Your Client17
Checklist for Evaluating a Potential Access Easy Controller Application17
When the Network Does Not Meet the Requirements of Access Easy Controller19
How to Install the Access Easy Controller23
Preliminary23
Controller Installation24
How to Install Reader and Field Devices31
HID Miniprox Reader35
HID Proxpoint Reader37
HID Proxpro Reader39
HID Proxpro Reader with Keypad41
S-Series Card Reader43
S-Series Fingerprint Card Reader45
Field Devices Using I/O Board46
Wiring Diagram for 2 State Supervised Input Points46
Wiring Diagram for 2 State Non-Supervised Input Points47
Wiring Diagram for 4 State Supervised Input Points48
Entry and Arm/Disarm Reader49
Wiring Diagram of a HID Compliant Entry and Arm/Disarm Reader50
Wiring Diagram of a S-Series Entry and Arm/Disarm Reader51
Common Alarm Output52
Overview52
Alarm (All Input Points)52
Door Forced Opened and Door Held Opened52
Panel AC Failure53
Controller Tamper53
Duress53
How to Set up the Access Easy Controller and the Computer55
Overview55
- How to Install & Set the TCP/IP Address on a PC56
- Network Configuration on a Macintosh Computer59
- Dial-Up Networking62
Special Guidelines for UL Compliant Installation63
Installing the Modem63
Modem Switch Settings66
Dial-In Security Features68
Controller Setup69
Handling of IP Addresses by Access Easy Controller70
Changing the Dial-In IP Address70
Configuring a Windows Computer to Dial the Access Easy Controller71
Configuration a Macintosh Computer to Dial the Access Easy Controller75
Handling Simultaneous Network and Dial-In Connections76
- Configuring a Web Browser to Work with Access Easy Controller77
Web Browser Set-Up on a Windows Computer77
Web Browser Set-Up on a Macintosh Computer81
- How to Set Initial Controller Configuration84
- Restoring a Backup Copy of Database to the Access Easy Controller86
Tools Needed86
Before Starting the Update86
Recovering Controller Database from a Windows Computer87
- The CPU Card88
Component Layout of the CPU Card89
Other Components92
- 4-Reader Boards and 8 Input/8 Output Boards93
Component Layout of 4 - Reader Card and 8-I/O Card93
Technical Overview of 4-Reader Board96
Reader Connectors96
Output Connectors97
15VDC Input Termination99
IDE Connectors99
LED Indicators99
Technical Overview of 8-Input/Output Board101
Output Connectors102
15VDC Input Termination104
IDE Connectors104
LED Indicators104
Reader & I/O Board Address Settings105
- Secure/Communication Card114
Connector Layout of Secure/Communication Card114
Technical Overview of Secure/Communication Card117
LED Indicators121
18VAC Input Power Supply Card122
AC Input Power Supply Card for Main Controller Unit123
Technical Overview of 18VAC Input Power Supply Card124
18VAC Power Supply Card for Access Easy Extension Unit127
Technical Overview of 18VAC Input Power Supply Card for Access Easy Extension Unit128
15V DC Input Power Supply Card132
15V DC Input Power Supply Card for Main Controller Unit132
Technical Overview of 15VDC Input Power Supply Card133
15VDC Power Supply Card for Access Easy Extension Unit137
Technical Overview of 15VDC Input Power Supply Card138
Convertor Card141
Connector Layout of Convertor Card141
Technical Overview of Convertor Card143
Jumper Setting148
LED Indicators151
Power Supply Requirement and Connection152
Current Consumption152
Connection in the Main Controller153
Connection in the Access Easy Extension Unit158
Card Reader Keypad Functions161
Keypad Layout161
Keypad Functions161
Entry Operation162
Using Card + PIN Mode on a Keypad Reader162
Using Keypad in the Enable Keypad Only Operation Mode162
Other Usage163
Changing PIN Code164
Entry and Arm/Disarm Reader165
Troubleshooting Network Connectivity Problems168
Troubleshooting Login Problems174
Frequently Asked Questions177
General Questions177
Controller Questions179
Reader and Door Questions180
Inputs and Outputs182
Network Question183
- APPENDIX A RJ45 Cable Assembly Procedure184
The Cable and RJ45 Plug184
Cutting and Stripping the Cable184
Cable Colour Code185
Procedure to Terminate Modular Plug Cable Assembly186
- APPENDIX B Selecting a Correct Battery Size189
How to Choose the Correct Battery Size for Your Application189
Example190
- APPENDIX C Detail Wiring191
Main Controller (for UL Listed System)192
Main Controller (for CE Listed System)194
- APPENDIX D Blank Configuration Form196
- 29 Appendix E199
Preparing the WAVECOM GSM Modem for AEC199
How to Test the GSM Modem201
