17.1 18V AC Input Power Supply Card for Main Controller Unit

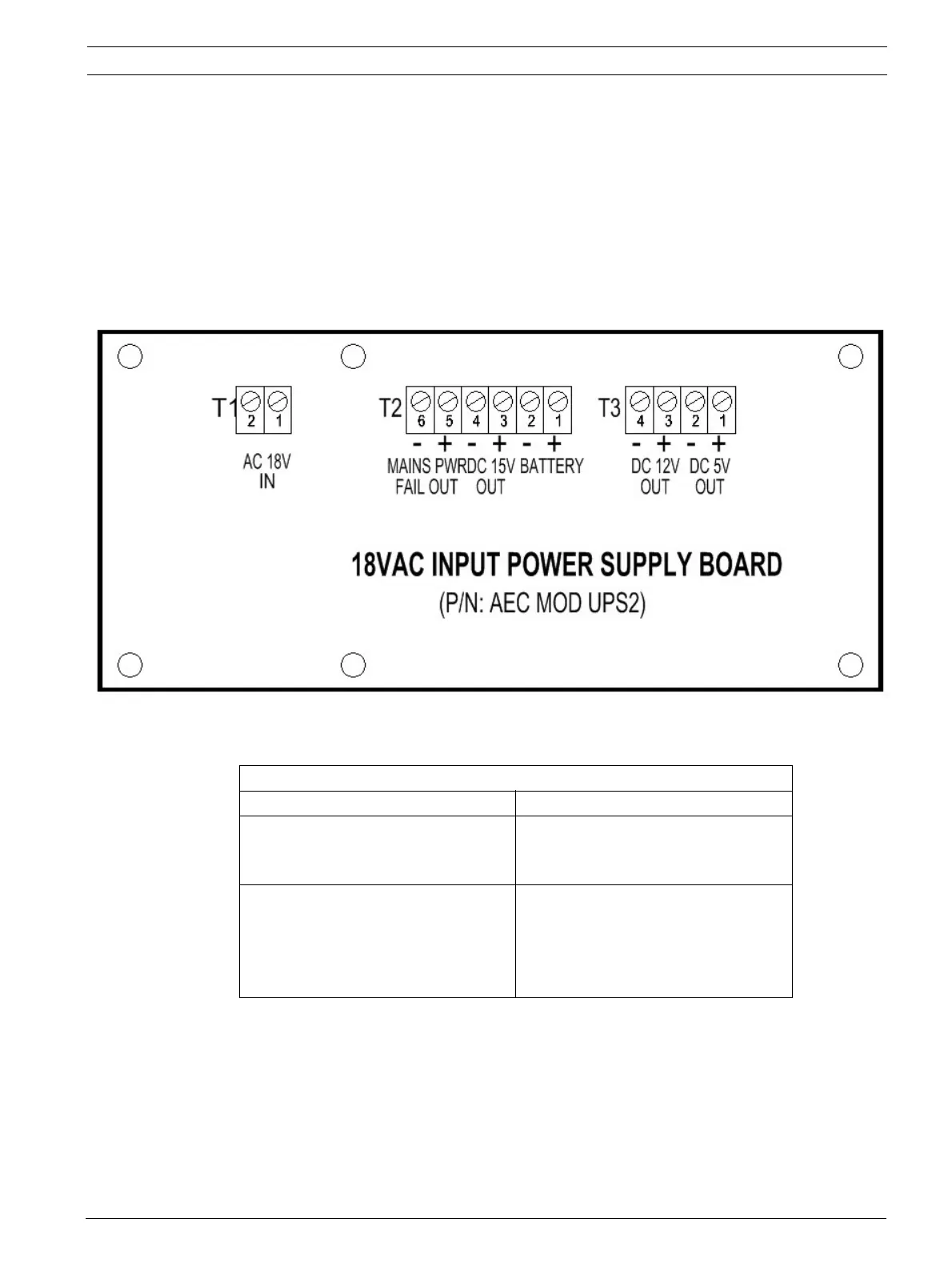

The following layout drawing shows the physical connectors on the 18V AC Input Power Sup-
ply Card. In addition, a brief description is provided on some of the major connectors.
Specification for 18 V AC Input Power Supply Card for Main Controller Unit
Input Voltage 18V AC
Output Voltage +15V DC
+12V DC
+5V DC
Max. Output Current 1A @ +15V DC
2A @ + 5V DC
or
750mA @ +12V DC
2A @ +5V DC
