Access Easy Controller APPENDIX A RJ45 Cable Assembly Procedure | en 185

Bosch Security Systems Hardware Manual Ver 2.0.0 | 2006.07

25.2 Cable Colour Code

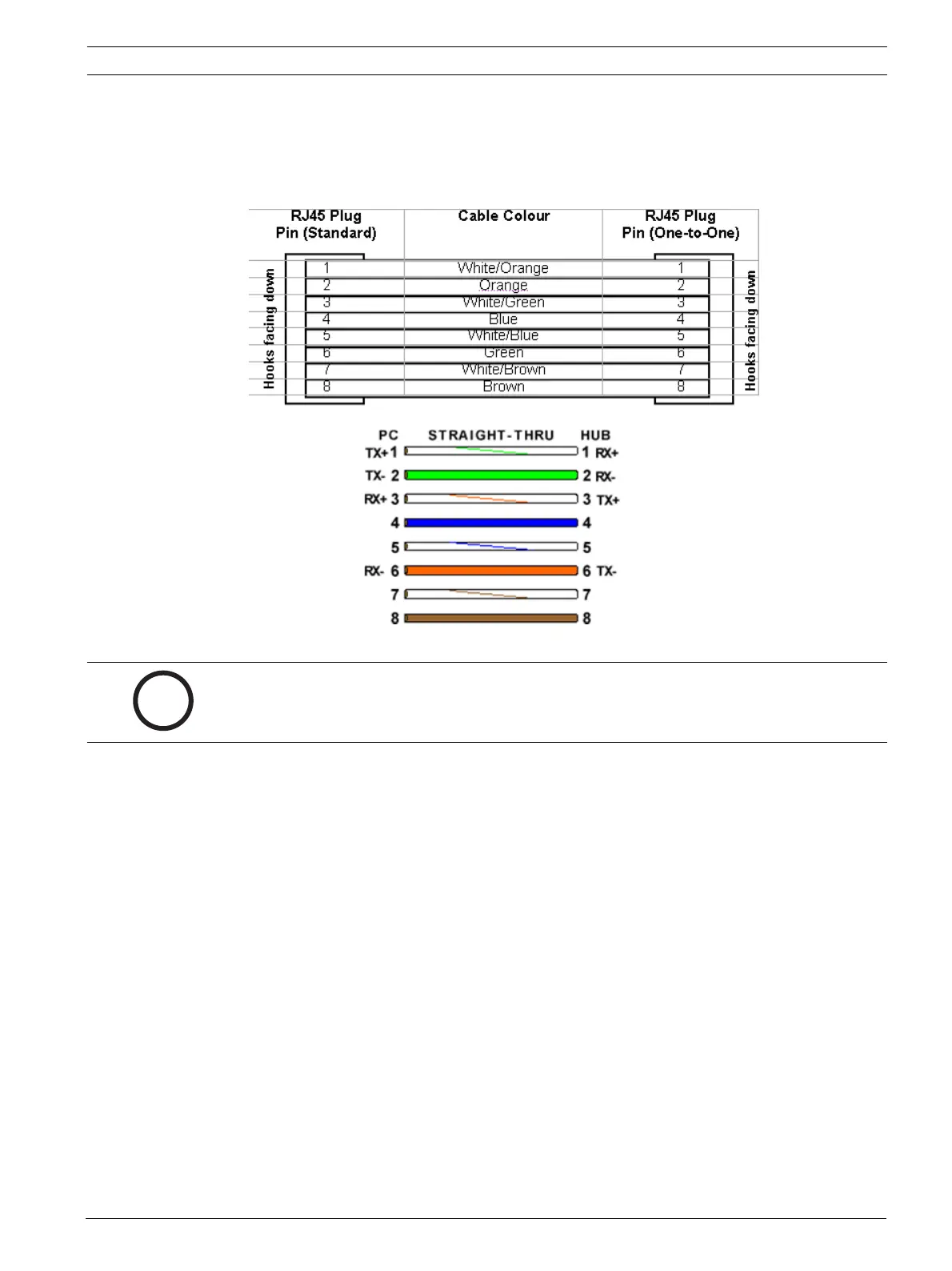

The drawings below provide the standard colour code of the cable for arrangement on the

RJ45 plugs.

NOTICE!

This is a Straight-Through connection, which means that pin 1 of the plug on one end is con-

nected to pin 1 of the plug on the other end. Use in connection between devices via a hub.
